992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 007000 & Above) Brakes Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

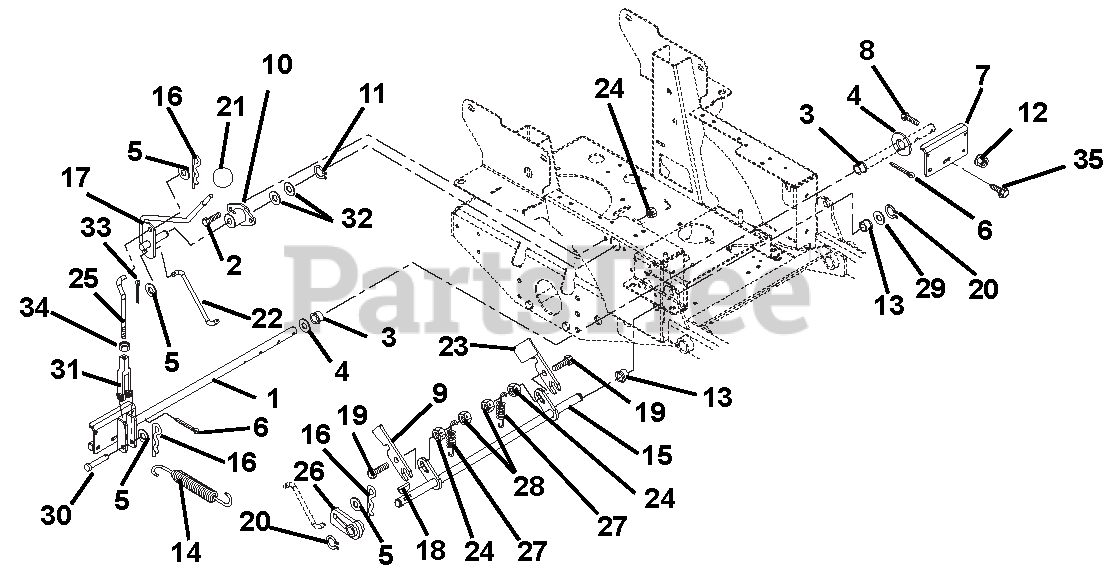

Brakes Parts Diagram

  • Title

1

Ariens 09298800

WMT, BRAKE SHAFT

$155.99

$

Usually ships in 4-12 days

0

2

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

4

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

7

Ariens 00356851

WMT, PADDLE BRAKE

$109.99

$

Usually ships in 4-12 days

0

8

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 09267700

SLIDE, INTERLOCKING BRAKE

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05534700

BUSHING, FLANGED

$21.99

$

In Stock, only 2 left!

0

11

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

13

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

14

Ariens 08334900

SPRING - ENGINE - TRANS.

$28.99

$

In Stock, Qty 8

0

15

Ariens 09284000

WMT, MECHANICAL BRAKE

$103.99

$

Usually ships in 4-12 days

0

16

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00277400

WMT, BRAKE ACTUATING

$85.99

$

Usually ships in 4-12 days

0

18

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

19

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

21

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

22

Ariens 09268400

LINKAGE, BRAKE ACTUATING

$30.99

$

In Stock, only 1 left!

0

23

Ariens 09275900

INTERLOCK, SAFETY SWITCH

$17.99

$

Usually ships in 4-12 days

0

24

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 09299100

LINKAGE, BRAKE COMPACT-Z

$38.99

$

Usually ships in 4-12 days

0

26

Ariens 09268100

WMT, PARKING BRAKE HUB

$190.99

$

Usually ships in 4-12 days

0

27

Ariens 08328700

SG-TENS .061 X .50 X 3.0 WLD 4

$20.99

$

In Stock, only 2 left!

0

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06813300

PIN-CLEV .370X1.75

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 07000016

CLEVIS, .38-24 ADJ. SWIVEL

$20.99

$

Usually ships in 4-12 days

0

32

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

33

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

34

Ariens 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

35

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 12

0
