992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 006999) Motors And Wheels Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

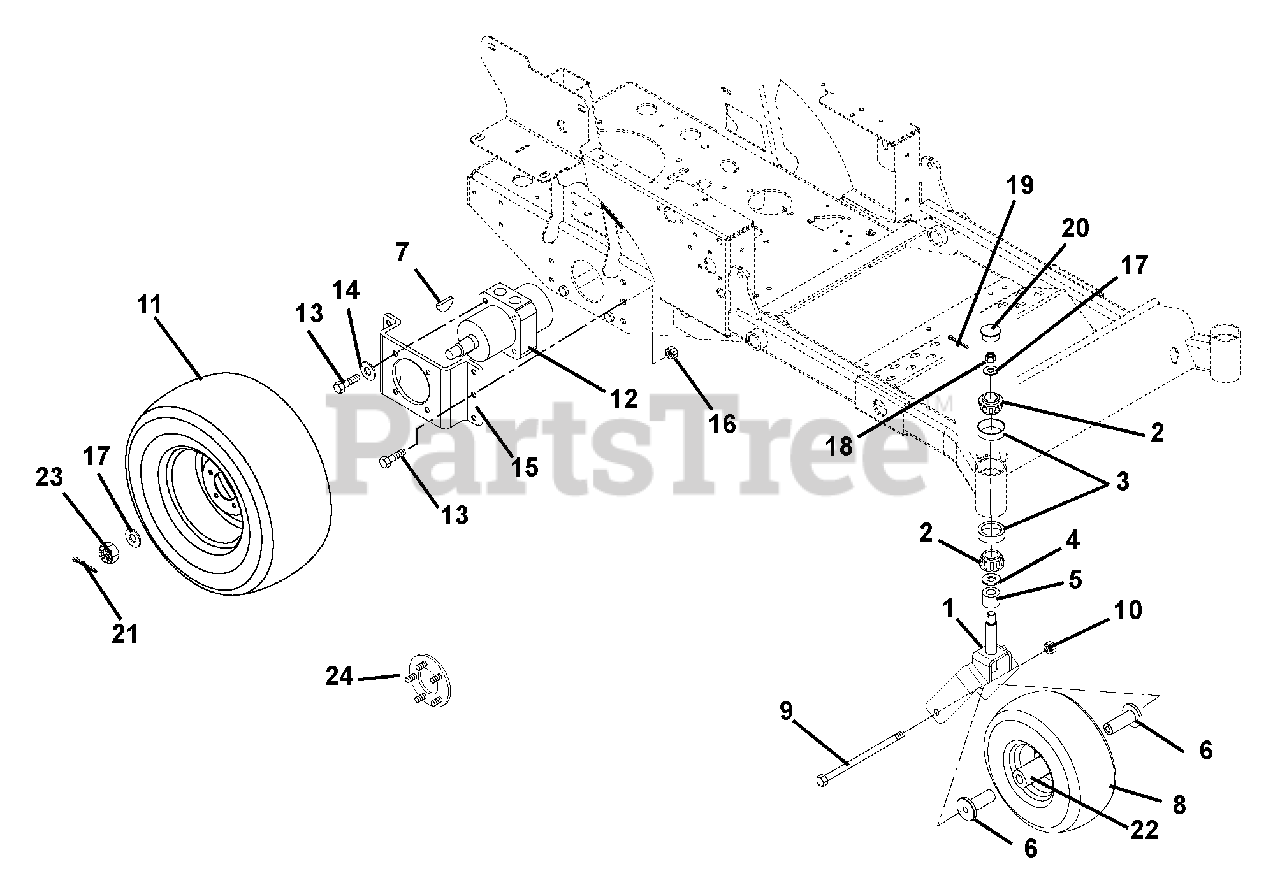

Motors And Wheels Parts Diagram

  • Title
1

Ariens 09296351

WMT, FRONT FORK
(Superseded to 59208400)

$206.99

$

Usually ships in 4-12 days

0

2

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

3

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, only 3 left!

0

5

Ariens 00531500

SPACER 1.005X1.5075X.375

$7.99

$

In Stock, Qty 6

0

6

Ariens 00160700

SPACER, WHEEL

$25.99

$

Usually ships in 4-12 days

0

7

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

Note: (Included with Item 12)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07160100

ASSM TIRE\WHEEL 5.25 X 13.00
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

9

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

10

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07160200

ASSM, TIRE\WHEEL 7.00 X 21.00
(Superseded to 07100216)

$

$

Not available

12

Ariens 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 09296600

BRKT, WHEEL MOTOR

$62.99

$

Usually ships in 4-12 days

0

16

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 00595500

NUT, SLOTTED .75-16

$3.49

$

In Stock, only 3 left!

0

19

Ariens 06712300

@PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 5

0

20

Ariens 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

21

Ariens 06713400

@PIN-CTR EXTPRSQCT .09X1.25 YZ

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: (Included with item 8)

$22.99

$

In Stock, Qty 19

0

23

Ariens 06528300

NUT-HEX-SL .75-20

$

$

Not available

24

Ariens 07100013

ASSM, SERVICE HUB W/ .44 STUDS
(Superseded to 07100028)

$83.99

$

In Stock, only 1 left!

0
