992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 006999) Hydraulic Pump_BDP-10A_LH Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

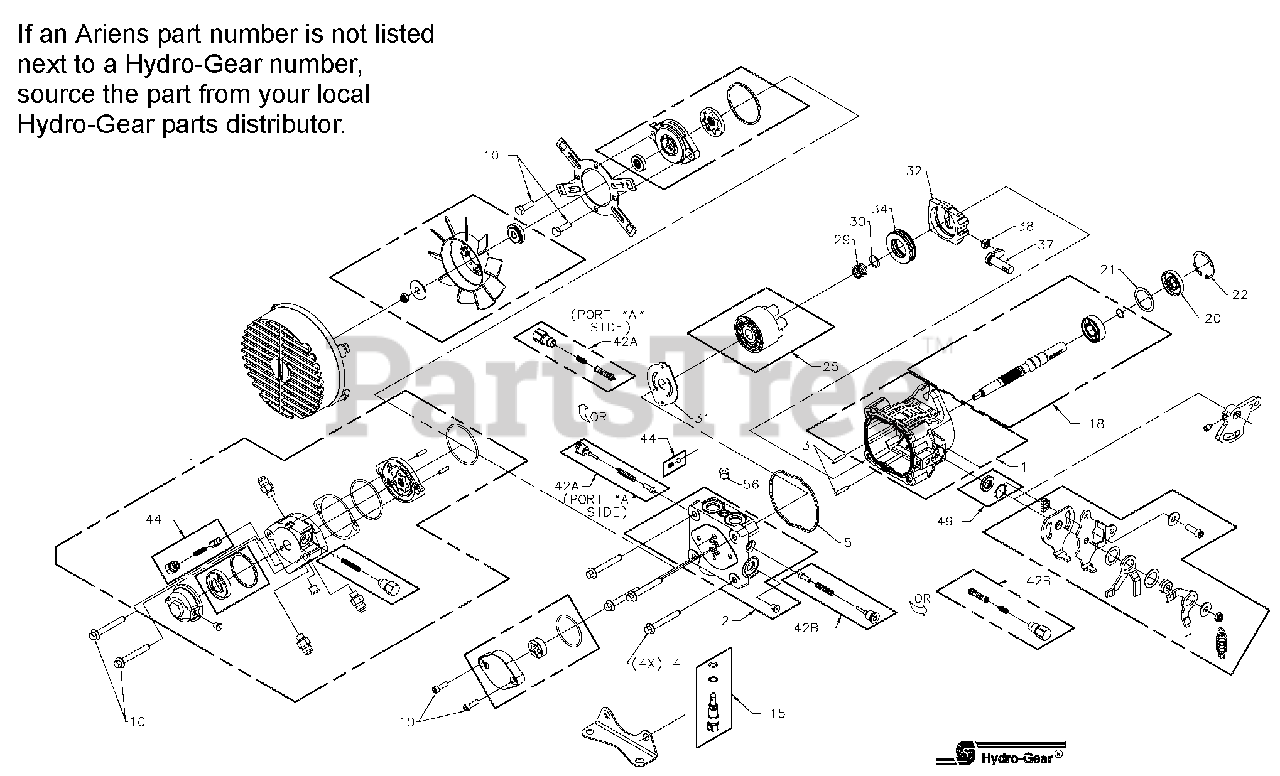

Hydraulic Pump_BDP-10A_LH Parts Diagram

  • Title
1

Ariens 21543899

KIT, HSG

Note: HydroGear p/n:70516

$

$

Not available

2

Ariens 21543900

KIT, END CAP W/PPT & STD

Note: HydroGear p/n:70517

$

$

Not available

3

Ariens 21543750

PIN, .219X1

Note: HydroGear p/n:50641

$

$

Not available

4

Ariens 21543775

HFHCS M8X60

Note: HydroGear p/n:50969

$

$

Not available

5

Ariens 21543978

KIT, CHG PUMP

Note: HydroGear p/n:2513027

$111.99

$

In Stock, only 1 left!

0

10

Ariens 21543777

SCREW, CAP M6X1X25

Note: HydroGear p/n:50975

$

$

Not available

15

Ariens 21543979

KIT, BYPASS VALVE

Note: HydroGear p/n:2513030

$28.99

$

Usually ships in 4-12 days

0

18

Ariens 21543902

KIT, PUMP SHAFT 15MM KEYW

Note: HydroGear p/n:70521

$

$

Not available

20

Ariens 21543816

SEAL, LIP 17X40X7

Note: HydroGear p/n:51161

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 21543773

WASHER 1.23X1.56X.04

Note: HydroGear p/n:50951

$5.99

$

In Stock, only 2 left!

0

22

Ariens 21543741

RING, RET 1.56 INT

Note: HydroGear p/n:50329

$6.99

$

Usually ships in 4-12 days

0

25

Ariens 21543889

KIT, 10 CC BLOCK

Note: HydroGear p/n:70331

$101.99

$

Usually ships in 4-12 days

0

29

Ariens 08621500

SPRING. BLOCK

Note: HydroGear p/n:2003014

$1.99

$

In Stock, Qty 6

0

30

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: HydroGear p/n:2003017

$1.99

$

In Stock, only 1 left!

0

31

Ariens 21543838

PLATE, VALVE

Note: HydroGear p/n:51444

$36.99

$

Usually ships in 4-12 days

0

32

Ariens 08609000

SWASHPLATE. VARIABLE

Note: HydroGear p/n:2003087

$

$

Not available

34

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: HydroGear p/n:50551

$17.99

$

Usually ships in 4-12 days

0

37

Ariens 21543963

ARM, TRUNNION 10 CC

Note: HydroGear p/n:2003005

$

$

Not available

38

Ariens 08610700

GUIDE. SLOT

Note: HydroGear p/n:2000015

$

$

Not available

42

Ariens 21543923

KIT, SHOCK VALVE 200 BAR

Note: HydroGear p/n:70743

$

$

Not available

44

Ariens 21543891

KIT, CHG RELIEF

Note: HydroGear p/n:70403

$

$

Not available

49

Ariens 58803300

KIT, PUMP SEAL

Note: HydroGear p/n:2513043

$9.99

$

Usually ships in 4-12 days

0

56

Ariens 21543993

PLUG 7/16-20 (METAL)

Note: HydroGear p/n:9005110-4400

$

$

Not available

NS

Ariens 59203600

KIT, PUMP SEAL

Note: HydroGear p/n:70525

$77.99

$

Usually ships in 4-12 days

0
