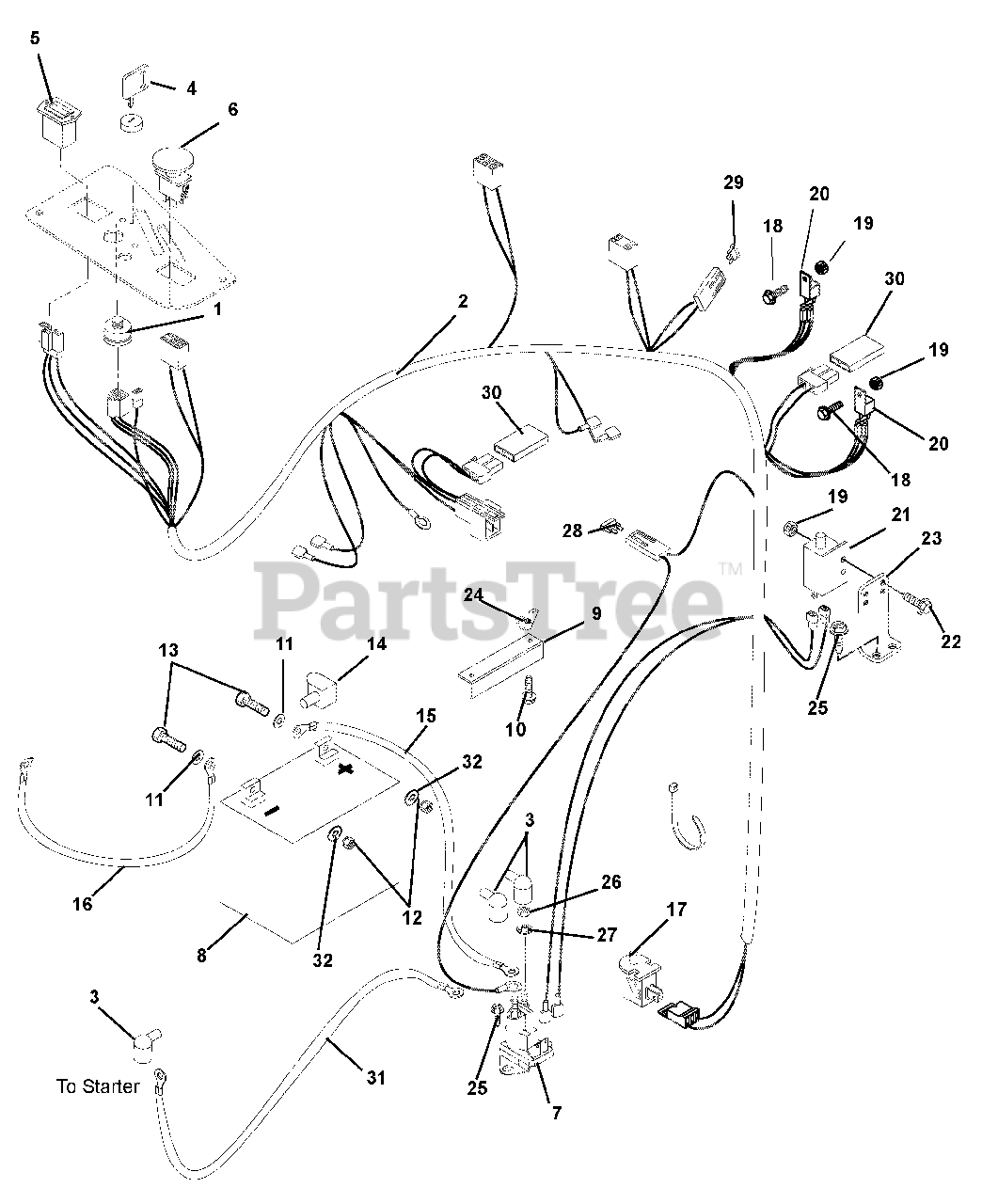

992323 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 006999) Electrical System Parts Diagram

Pro-Master 34" Zero-Turn Mower, 17hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Ariens 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$43.99

$

In Stock, Qty 10

0

2

Ariens 03286200

HARNESS - CZ EYE-Q REMOTE SOL.

$193.99

$

In Stock, only 1 left!

0

3

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

4

Ariens 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

5

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

6

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

7

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

8

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Ariens 03494000

HOLD DOWN
(Superseded to 03494051)

$11.99

$

In Stock, only 2 left!

0

10

Ariens 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

11

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

15

Ariens 03286000

CABLE-POSITIVE BATTERY 9.00"

$7.99

$

Usually ships in 4-12 days

0

16

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

17

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

18

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03042800

RELAY
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

21

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 1 left!

0

22

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

23

Ariens 09282851

BRAKE SWITCH MOUNT - BLACK

$19.99

$

Usually ships in 4-12 days

0

24

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

25

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

27

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

Note: (Included with Harness)

$3.99

$

In Stock, only 4 left!

0

29

Ariens 00580600

FUSE 20AMP

$5.99

$

In Stock, Qty 12

0

30

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

31

Ariens 03492500

CABLE, STARTER .31X23.00X.31

$21.99

$

Usually ships in 4-12 days

0

32

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0
