992322 (PM 252 Z) - Ariens Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 002001 - 002499) Lift Valve And Cylinder Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel

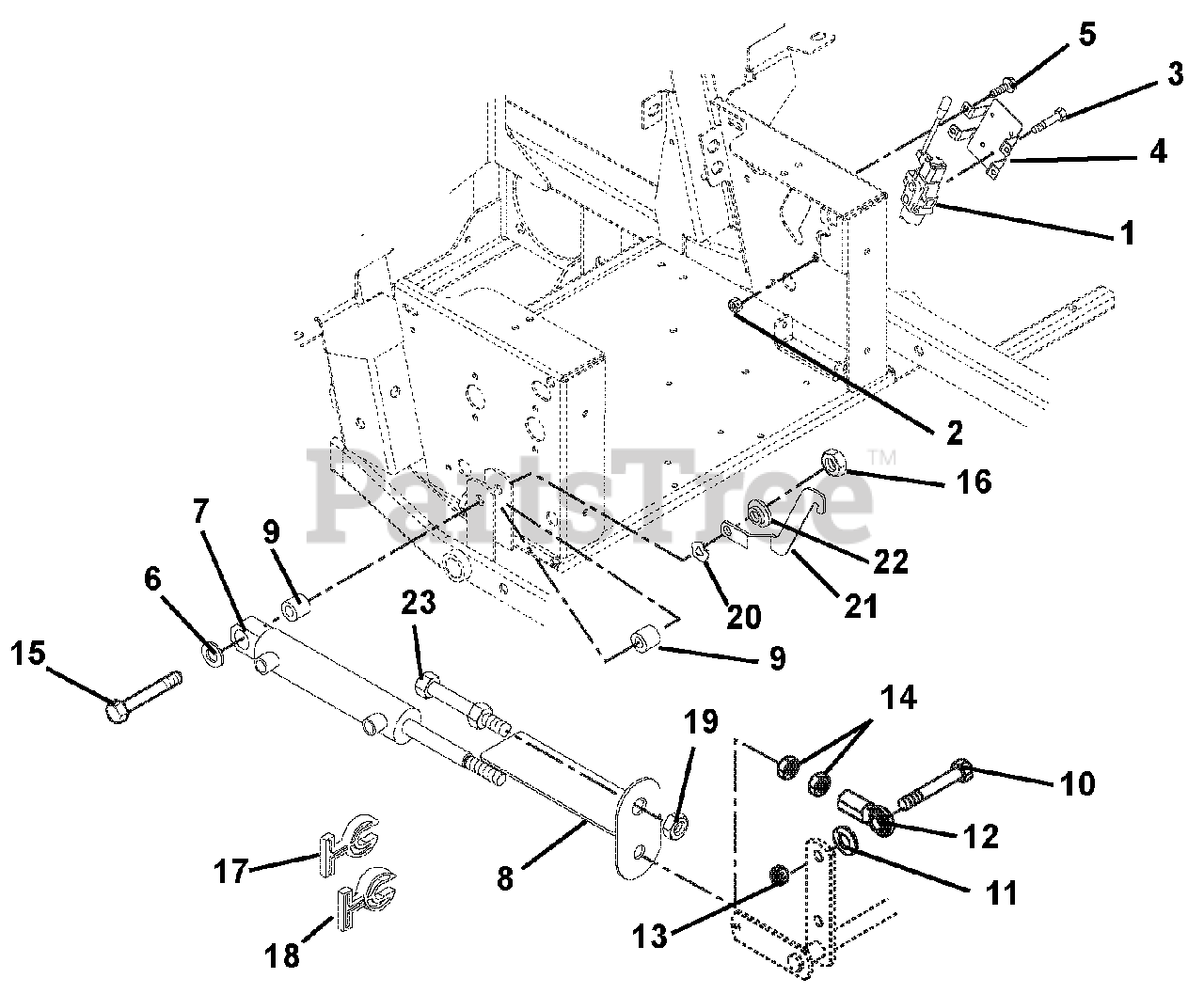

Lift Valve And Cylinder Parts Diagram

  • Title
1

Ariens 09265100

VALVE, HYDRAULIC-BONDIOLI
(Superseded to 03791700)

$

$

Not available

2

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 09290251

VALVE MOUNTING BRACKET - BLACK
(Superseded to 03791851)

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

7

Ariens 09264800

CYLINDER, LIFT
(Superseded to 04864700)

$516.99

$

In Stock, only 1 left!

0

8

Ariens 00184551

CUT INDICATOR/GUARD - BLACK

$75.99

$

Usually ships in 4-12 days

0

9

Ariens 09215200

BUSHING, .516X1.000X1.050 LG

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06309500

@WSHR-LK .62X.156 REG YWZC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 09221600

ROD END, 5/8 RH - FEMALE

$25.99

$

Usually ships in 4-12 days

0

13

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06539600

NUT-JAM .625-18 YWZC

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 09212200

STOP, CYLINDER .34 THK

$11.99

$

In Stock, only 2 left!

0

18

Ariens 09212300

STOP, CYLINDER .680 THK

$11.99

$

In Stock, Qty 20+

0

19

Ariens 06539900

NUT-JAM .75-16 YWZC

$3.49

$

In Stock, only 2 left!

0

20

Ariens 09252000

WASHER-WAVE .760X1.120X.080

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 09293200

LATCH, FOOTBOARD HOOK

$

$

Not available

22

Ariens 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

23

$

$

Not available
