992322 (PM 252 H) - Ariens Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 005000 & Above) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel

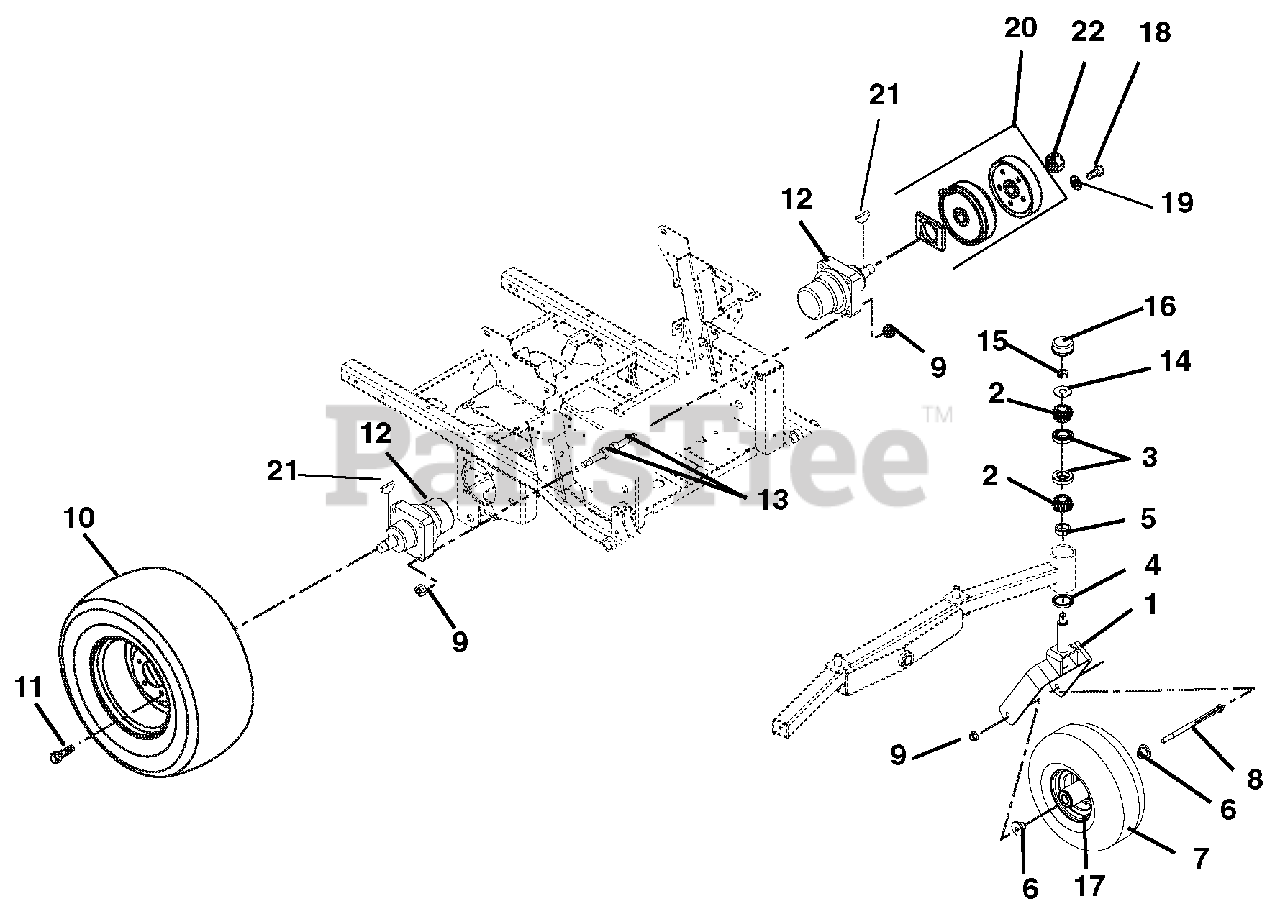

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title

1

Ariens 03758753

WMT - FRONT FORK

$165.99

$

In Stock, only 3 left!

0

2

Ariens 05404700

BRG-CONE 1.25X.66

$20.99

$

In Stock, Qty 20+

0

3

Ariens 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

4

Ariens 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

5

Ariens 03760300

SPCR, 1.258ID X 1.750OD X.550

$32.99

$

Usually ships in 4-12 days

0

6

Ariens 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

7

Ariens 07100212

TIRE/WHEEL ASSY, 15X6.00-6
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

Ariens 07100213

TIRE, 15X6.00-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

8

Ariens 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

9

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

$273.99

$

Usually ships in 4-12 days

0

Ariens 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

$227.99

$

Usually ships in 4-12 days

0

11

Ariens 07000143

BLT-LUG .50-20X1.38 YWZC

$3.49

$

In Stock, Qty 9

0

12

Ariens 03255000

WHEEL MOTOR, 18E (CCW)

Note: (CCW)

$

$

Not available

13

Ariens 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

15

Ariens 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

16

Ariens 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

17

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 19

0

18

Ariens 05981600

BLT-HEX .31-18X1.50 GR8YZ EP30

$3.49

$

In Stock, Qty 6

0

19

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 58904300

KIT, BRAKE SERVICE (1-SIDE)

$555.99

$

Usually ships in 4-12 days

0

21

Ariens 06607800

KEY-WDRF .31X1.00 SFT #B

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

$30.99

$

Usually ships in 4-12 days

0
