992322 (PM 252 H) - Ariens Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 005000 & Above) Frame Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel

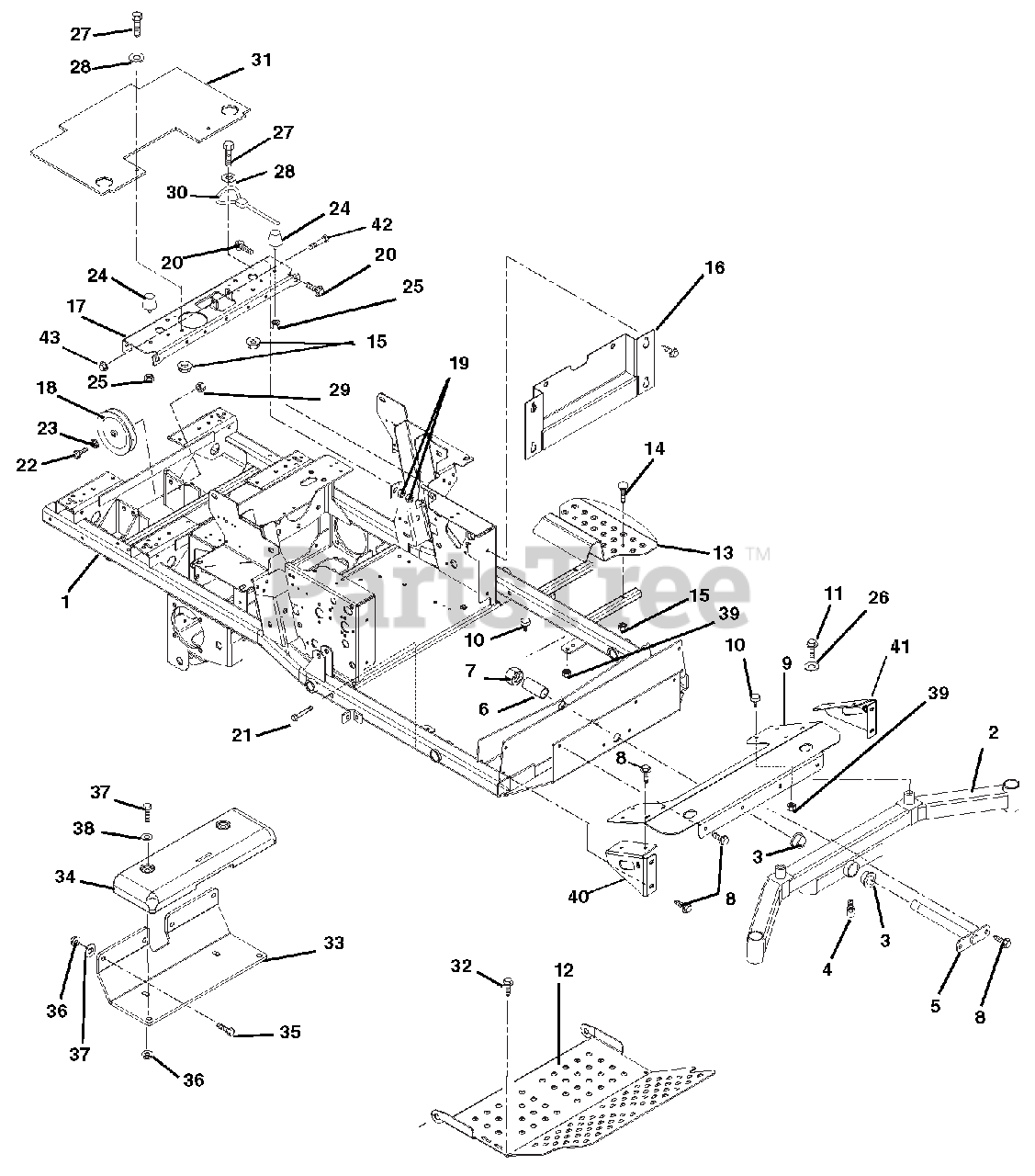

Frame Parts Diagram

  • Title

1

Ariens 00443253

WLDMT, FRAME

$2255.99

$

Usually ships in 4-12 days

0

2

Ariens 00978153

WMT, FRONT AXLE

$682.99

$

Usually ships in 4-12 days

0

3

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 12

0

4

Ariens 07012700

FTG,LUBE 45 DEG

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 09232000

PIN - AXLE

$68.99

$

In Stock, only 1 left!

0

6

Ariens 09231900

SPACER 1.009 X 1.250 X 4.23

$20.99

$

In Stock, only 2 left!

0

7

Ariens 06543200

NUT-LK-NYL 1.0-14 YWZC

$9.49

$

In Stock, only 2 left!

0

8

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00610153

COVER - AXLE

$116.99

$

Usually ships in 4-12 days

0

10

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

11

Ariens 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

12

Ariens 00444051

PANEL, INSPECTION

$125.99

$

Usually ships in 4-12 days

0

13

Ariens 09231251

STEP, INGRESS (BLACK)

$

$

Not available

14

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00483153

PLATE - KICK

$

$

Not available

17

Ariens 04044953

BRACE, SEAT CROSS WITH LATCH

$

$

Not available

18

Ariens 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$108.99

$

In Stock, only 1 left!

0

19

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

20

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

21

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

23

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$14.99

$

Usually ships in 4-12 days

0

25

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

27

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

29

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06900010

CABLE, SEAT PROP.

$50.99

$

Usually ships in 4-12 days

0

31

Ariens 00436900

GUARD - GRASS

$45.99

$

Usually ships in 4-12 days

0

32

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

33

Ariens 00475351

BRACKET - WEIGHT - 252

$220.99

$

Usually ships in 4-12 days

0

34

Ariens 00172000

WEIGHT, CAST IRON

$297.99

$

Usually ships in 4-12 days

0

35

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

36

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

38

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 03972253

WMT - RH AXLE COVER SUPPORT

$84.99

$

Usually ships in 4-12 days

0

41

Ariens 03972353

WMT - LH AXLE COVER SUPPORT

$84.99

$

Usually ships in 4-12 days

0

42

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

43

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
