992322 (PM 252 H) - Ariens Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 005000 & Above) Deck, Rollers And Belt Covers Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel

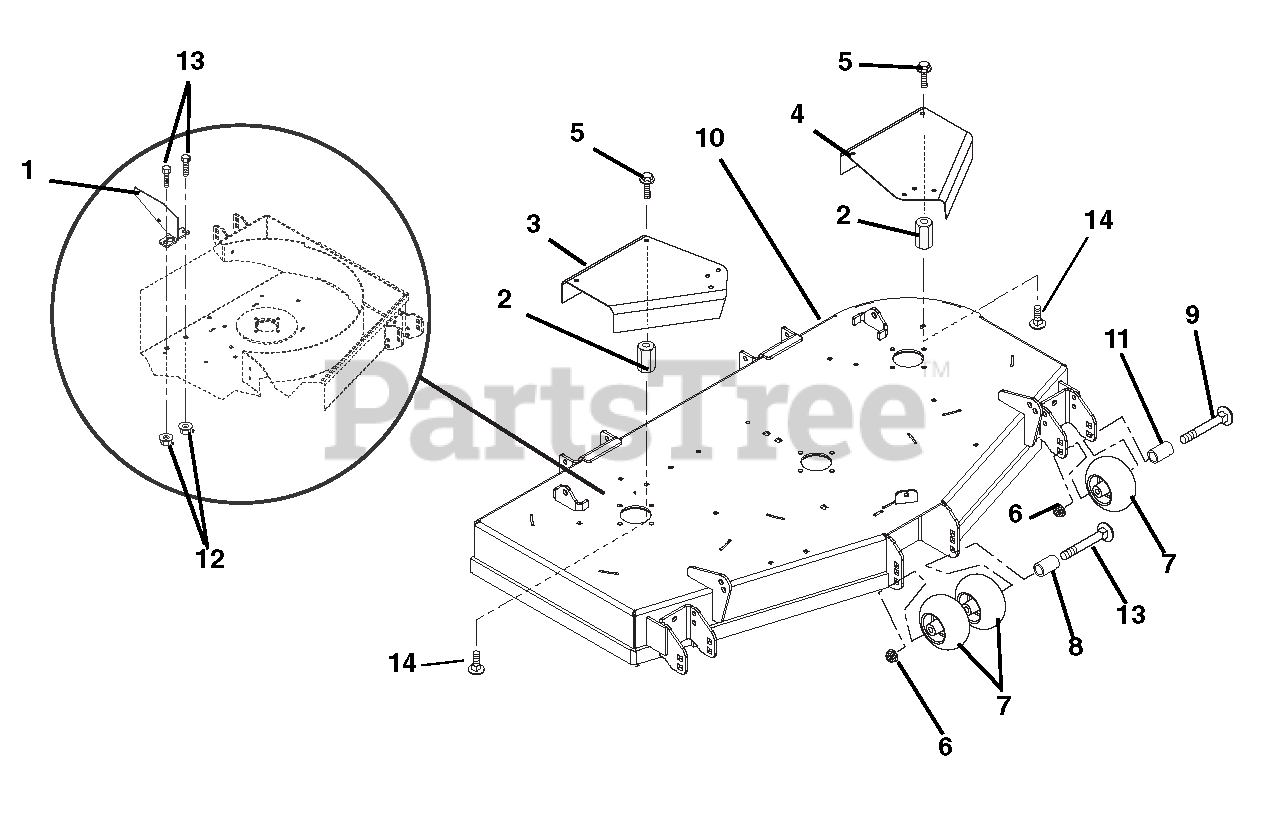

Deck, Rollers And Belt Covers Parts Diagram

  • Title
1

Ariens 00502453

REAR DISCH DEFLECT BFL WMT-RED

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

3

Ariens 00589551

GUARD, 52" RH SPINDLE SHEAVE

Note: (992322)

$

$

Not available

3

Ariens 00370651

GUARD, 60" RH SPINDLE SHEAVE

Note: (992316, 317)

$

$

Not available

3

Ariens 00378051

GUARD,66"-72"RH SPINDLE SHEAVE

Note: (992321)

$

$

Not available

4

Ariens 00438951

GUARD, 44"-52" LH SPNDL SHEAVE

Note: (992322)

$

$

Not available

4

Ariens 00371451

GUARD, 60" LH SPINDLE SHEAVE

Note: (992316, 317)

$

$

Not available

4

Ariens 00377951

GUARD,66"-72"LH SPINDLE SHEAVE

Note: (992321)

$

$

Not available

5

Ariens 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

6

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

9

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

10

Ariens 00483553

XDZ52" REAR DISCH DECK WMT-RED

Note: (992322)

$1008.99

$

Usually ships in 4-12 days

0

10

Ariens 00481953

XDZ60" REAR DISCH DECK WMT-RED

Note: (992316, 317)

$1143.99

$

Usually ships in 4-12 days

0

10

Ariens 00583053

72"XDZ REAR DISCH DECK WMT-RED

Note: (992321)

$

$

Not available

11

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

12

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
