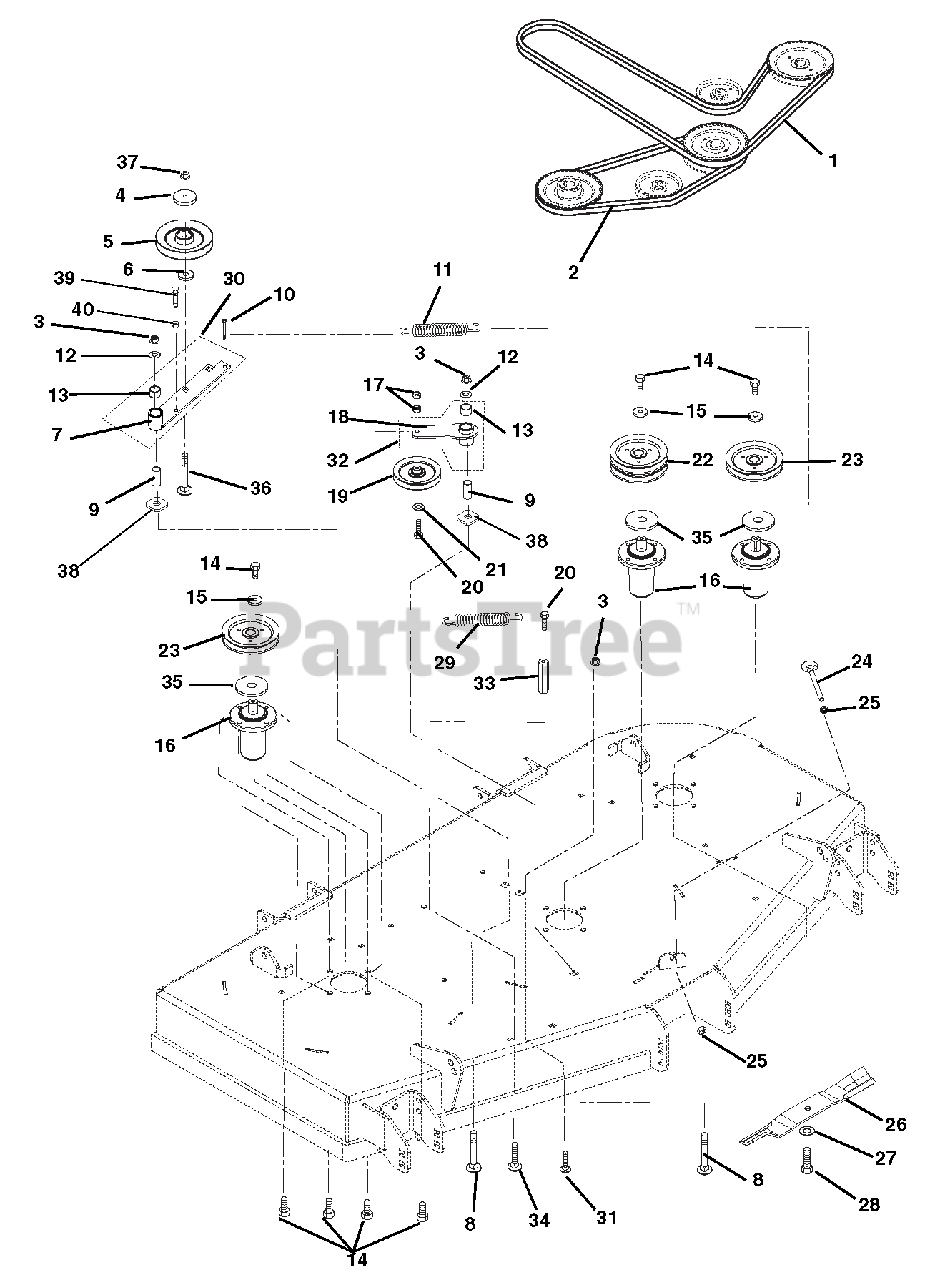

992322 (PM 252 H) - Ariens Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 005000 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Daihatsu Diesel

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 07200027

HEX BELT, BB-WRAPPED

Note: (992322)

$159.99

$

Usually ships in 4-12 days

0

1

Ariens 07200030

HEX BELT, BB-WRAPPED

Note: (992316, 317)

$150.99

$

In Stock, only 1 left!

0

1

Ariens 07200033

HEX BELT, BB-WRAPPED

Note: (992321)

$193.99

$

In Stock, only 1 left!

0

2

Ariens 07200036

V-BELT, B-COGGED

Note: (992322)

$62.99

$

In Stock, Qty 15

0

2

Ariens 07200038

V-BELT, B-COGGED

Note: (992316, 317)

$67.99

$

In Stock, Qty 20+

0

2

Ariens 07200039

V-BELT, B-COGGED

Note: (992321)

$75.99

$

In Stock, Qty 10

0

3

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

5

Ariens 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$53.99

$

In Stock, Qty 20+

0

6

Ariens 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 18

0

7

Ariens 03774251

WMT, IDLER ARM

$68.99

$

In Stock, only 1 left!

0

8

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

9

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

10

Ariens 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 2 left!

0

11

Ariens 08300505

SPRING, EXTENSION

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

12

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

Note: (992321)

$239.99

$

In Stock, Qty 20+

0

16

Ariens 69221300

ASSEMBLY, SPINDLE-LONG G3500
(Superseded to 59225700)

Note: (992316, 317, 322)

$239.99

$

In Stock, Qty 20+

0

17

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03774151

WMT, IDLER ARM - BLACK

$51.99

$

In Stock, only 1 left!

0

19

Ariens 07300526

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

20

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07300020

SHEAVE, DOUBLE 1"ID X 6.00"OD
(Superseded to 07332367)

Note: (992322)

$77.99

$

In Stock, Qty 16

0

22

Ariens 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

Note: (992316, 317)

$91.99

$

In Stock, Qty 20+

0

22

Ariens 07300023

SHEAVE, DOUBLE 1"ID X 8.25"OD
(Superseded to 59217300)

Note: (992321)

$194.99

$

Usually ships in 4-12 days

0

23

Ariens 07300019

SHEAVE, SINGLE 1"ID X 6.00" OD
(Superseded to 59211700)

Note: (992322)

$82.99

$

In Stock, only 1 left!

0

23

Ariens 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

Note: (992316, 317)

$82.99

$

In Stock, Qty 13

0

23

Ariens 07300024

SHEAVE, SINGLE 1"ID X 8.25"OD
(Superseded to 59217400)

Note: (992321)

$118.99

$

In Stock, only 1 left!

0

24

Ariens 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

25

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 00273100

BLADE, MULCH 18.00"

Note: (992322)

$26.99

$

In Stock, Qty 20+

0

26

Ariens 08866900

BLADE, MULCHING (20.50")

Note: (20.50") (992316, 317)

$37.99

$

In Stock, Qty 20+

0

26

Ariens 09290600

BLADE,MOWER-72"MULCH(24.5"LG)

Note: (24.50") (992321)

$39.99

$

In Stock, only 3 left!

0

27

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

28

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

29

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

30

Ariens 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (Includes item # 7 and item # 13)

$79.99

$

Usually ships in 4-12 days

0

31

Ariens 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$5.99

$

In Stock, only 1 left!

0

32

Ariens 03796400

ASM, IDLER ARM (DECK)

Note: (Includes item # 13 and item # 18 )

$62.99

$

Usually ships in 4-12 days

0

33

Ariens 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 6

0

34

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 00481000

RETAINER, GREASE

$9.99

$

In Stock, only 1 left!

0

36

Ariens 06224900

@BLT-RDHDSQNK .50-13X3.00 G5YZ

$5.99

$

In Stock, Qty 20+

0

37

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

38

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 4 left!

0

39

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

40

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0
