992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 006000 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

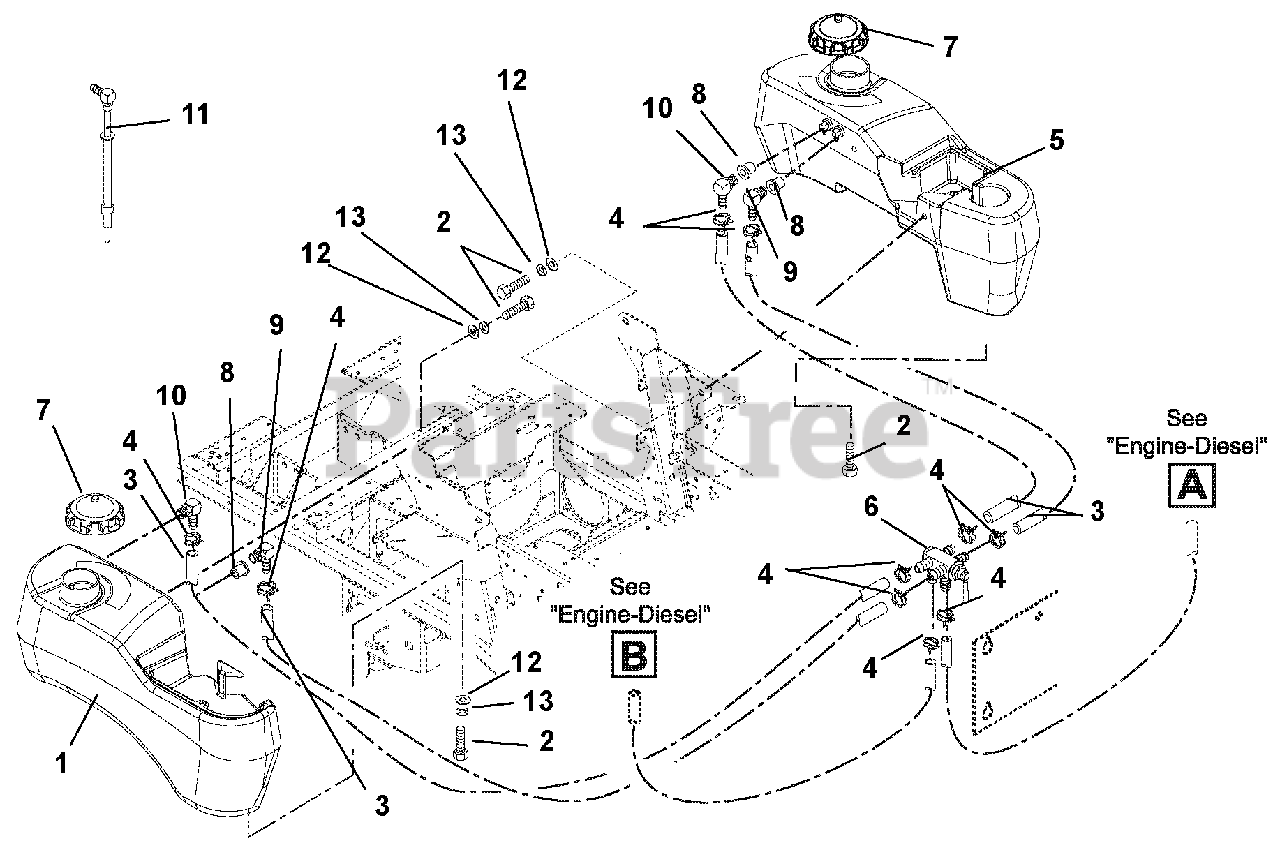

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 04004800

Tank, Fuel Right Hand

$219.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00922600

Hose, .31 ID

$

$

Not available

4

Gravely 06947900

Clamp, Hose Wire .52/.55

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 04007000

Tank, Fuel Left Hand

$249.99

$

Usually ships in 4-12 days

0

6

Gravely 09289600

Valve, Fuel

$

$

Not available

7

Gravely 09269100

Cap, Fuel

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 00387300

Grommet, Orange

$9.49

$

In Stock, Qty 20+

0

9

Gravely 21539100

Fitting, Tank

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 21537200

Fitting, Tank

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 59207000

26" Fuel Line Kit, Diesel (Inside Tank)

Note: (Inside Tank)

$82.99

$

Usually ships in 4-12 days

0

12

Gravely 06435700

Washer, Steel .38 x .875 x .83
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
