992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 006000 & Above) Decals Cont'd Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

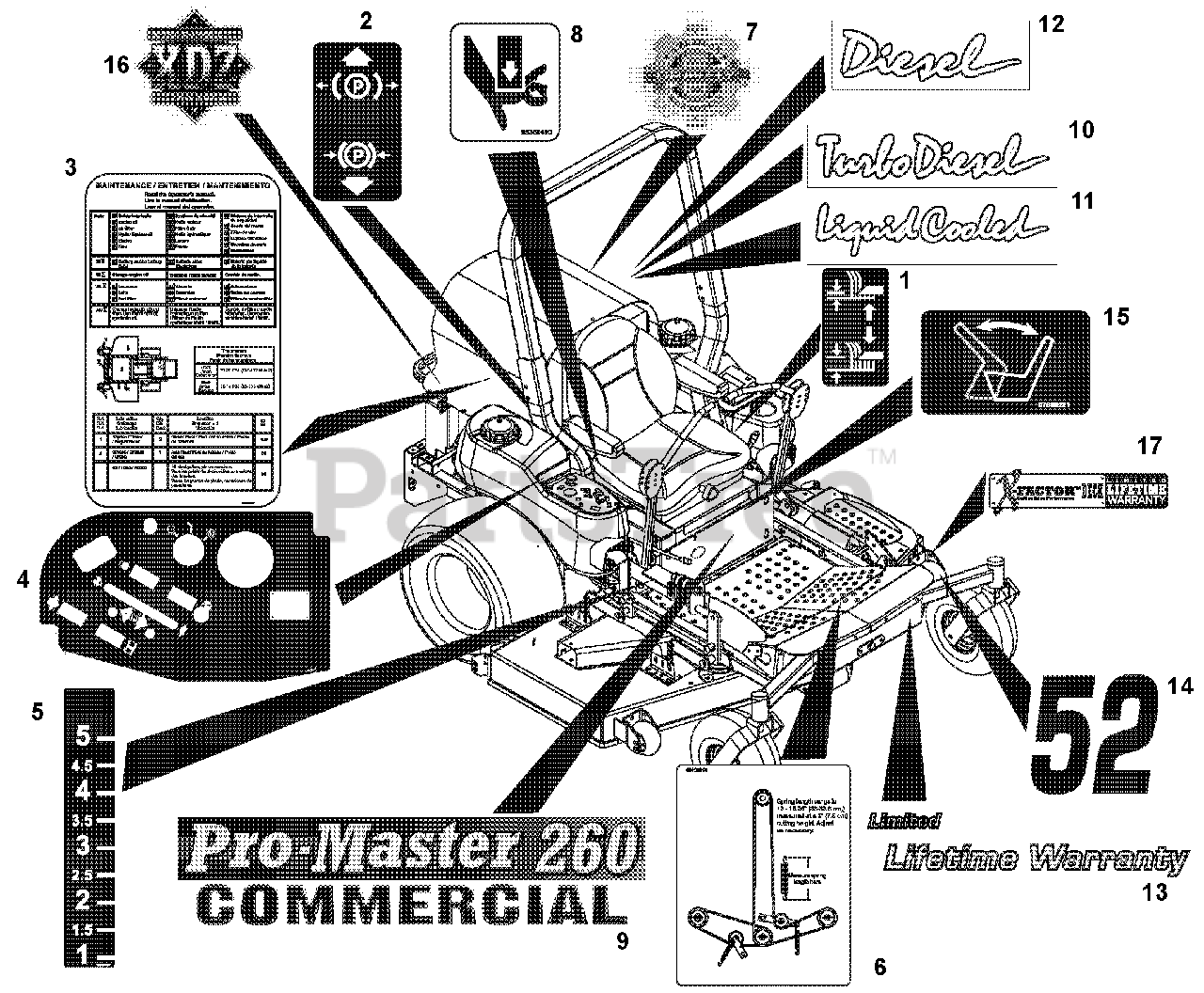

Decals Cont'd Parts Diagram

  • Title

1

Gravely 07735300

Decal, Lift Lever

$

$

Not available

2

Gravely 07757500

Decal, Parking Brake Lever

$1.49

$

In Stock, Qty 11

0

3

Gravely 07700005

Decal, Maintenance Instructions

$

$

Not available

4

Gravely 05366100

Decal, Control Panel, Diesel

$

$

Not available

5

Gravely 05354700

Decal, Height of Cut

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 03875000

Decal, Belt Routing (992316, 317, 321, 322, 324)

Note: (992316, 317, 321, 322, 324)

$11.99

$

Usually ships in 4-12 days

0

Gravely 07800322

Decal, Belt Routing (992324)

Note: (992324)

$

$

Not available

7

Gravely 08000526

Decal, Gravely Heritage – Large
(Superseded to 07800534)

$22.99

$

In Stock, only 1 left!

0

8

Gravely 05359400

Decal, Pinch Point

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 03999900

Decal, PM260Z (992316, 317, 324)

Note: (992316, 317, 324)

$

$

Not available

Gravely 04004000

Decal, PM272Z (992321)

Note: (992321)

$

$

Not available

Gravely 03999800

Decal, PM252Z (992322)

Note: (992322)

$24.99

$

Usually ships in 4-12 days

0

10

Gravely 05362600

Decal, Turbo Diesel (992317, 321)

Note: (992317, 321)

$

$

Not available

11

Gravely 05362700

Decal, Liquid Cooled

$

$

Not available

12

Gravely 05362500

Decal, Diesel (992316, 322, 324)

Note: (992316, 322, 324)

$

$

Not available

13

Gravely 03992400

Decal, Limited Liffetime Warranty (992316, 317, 321, 322)

Note: (992316, 317, 321, 322)

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 03818400

Decal, 60" (992316, 317, 324)

Note: (992316, 317, 324)

$25.99

$

Usually ships in 4-12 days

0

Gravely 05366400

Decal, 72" (992321)

Note: (992321)

$9.99

$

Usually ships in 4-12 days

0

Gravely 07800026

Decal, 52" (992322)

Note: (992322)

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 07800221

Decal, Seat Release

$

$

Not available

16

Gravely 05362400

Decal, XDZ 5"

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 05366200

Decal, X-Factor (992324)

Note: (992324)

$38.99

$

In Stock, only 1 left!

0
