992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 006000 & Above) Clutch And Flywheel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

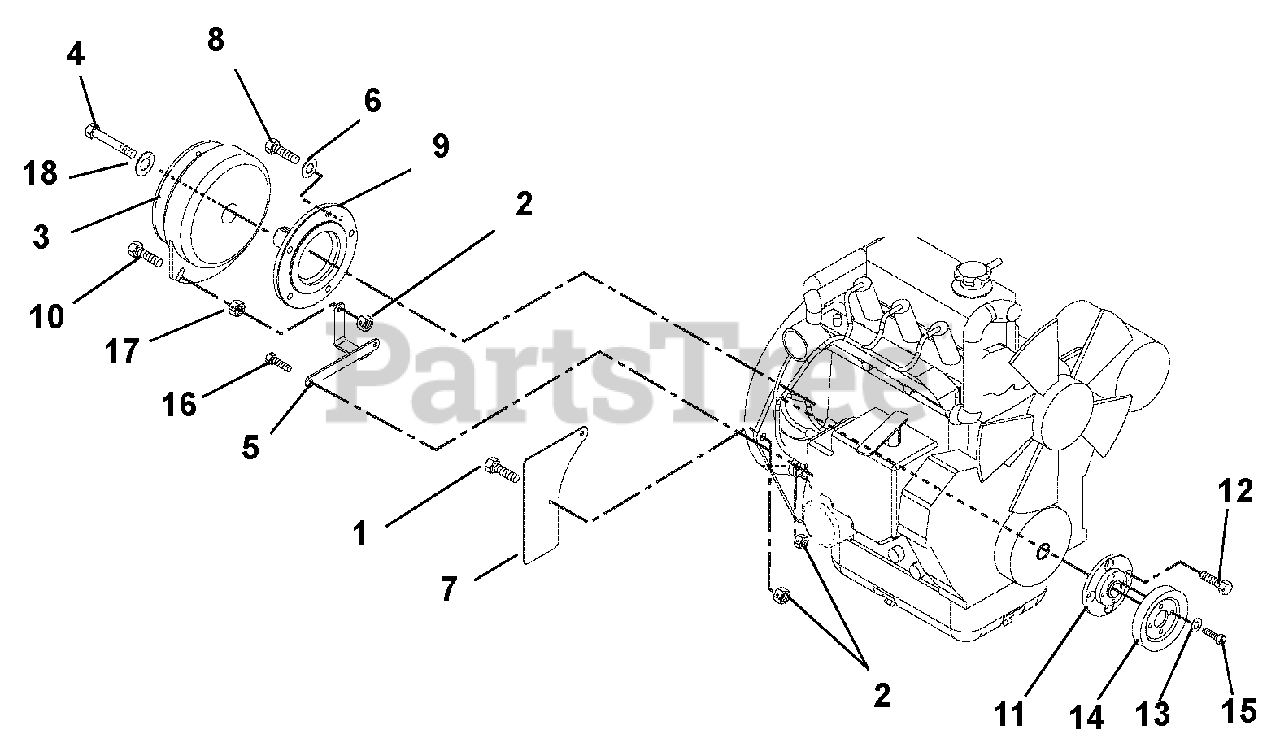

Clutch And Flywheel Parts Diagram

  • Title

1

Gravely 05947000

Bolt, Hex .31 -18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00462500

Clutch, Warner

$607.99

$

Usually ships in 4-12 days

0

NS

Gravely 59205200

Kit, Break Pole Module Replacement

$

$

Not available

4

Gravely 05900036

Bolt, Hex .44-20 x 2.50 Grade 5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

5

Gravely 09264551

Stabilizer, Clutch

$24.99

$

Usually ships in 4-12 days

0

6

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09273851

Guard, Flywheel

$

$

Not available

8

Gravely 05964900

Bolt, Hex M8 x 1.25 x 25 Grade 8

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 00447200

Stub Shaft

$

$

Not available

10

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

11

Gravely 09265600

Adapter, Sheave

$96.99

$

Usually ships in 4-12 days

0

12

Gravely 05978700

Bolt, M8-1.25 x 25

$

$

Not available

13

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07328100

Sheave, Poly-V 1.0 x 3.25

$

$

Not available

15

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grad 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

18

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0
