992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 005000 - 005999) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

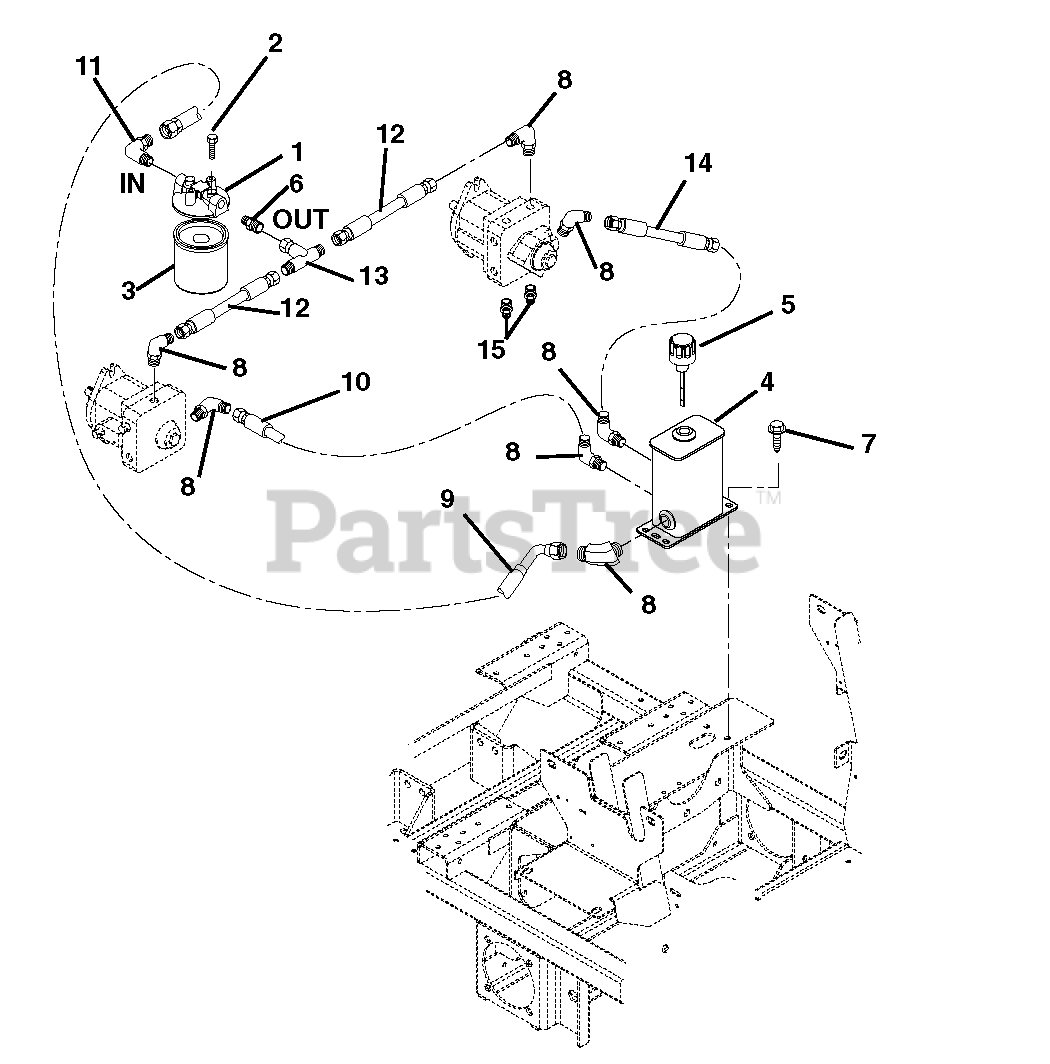

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5 Epoxy
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03931900

Oil Filter

$27.99

$

In Stock, Qty 20+

0

4

Gravely 02985351

Weldment,Formed 3-Port

$170.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Hydraulic Tank Dipstick

$

$

Not available

6

Gravely 07059900

Fitting, Hydraulic, Straight

$9.49

$

In Stock, only 4 left!

0

7

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 00364600

Hose, Hydraulic Valve to Tank

$100.99

$

Usually ships in 4-12 days

0

10

Gravely 00364500

Hose, Hydraulic, 10-inch

$56.99

$

Usually ships in 4-12 days

0

11

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 00364400

Hose, Hydraulic .50, 5-Inch

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 07069400

Fitting, Hydraulic Tee

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 00364700

Hose, Hydraulic

$76.99

$

Usually ships in 4-12 days

0

15

Gravely 07063700

Fitting, Hydraulic (4 F5OLO)

Note: (4 F5OLO)

$

$

Not available
