992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 004500 - 004999) Hydrostatic Pumps, Idlers And Belt Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

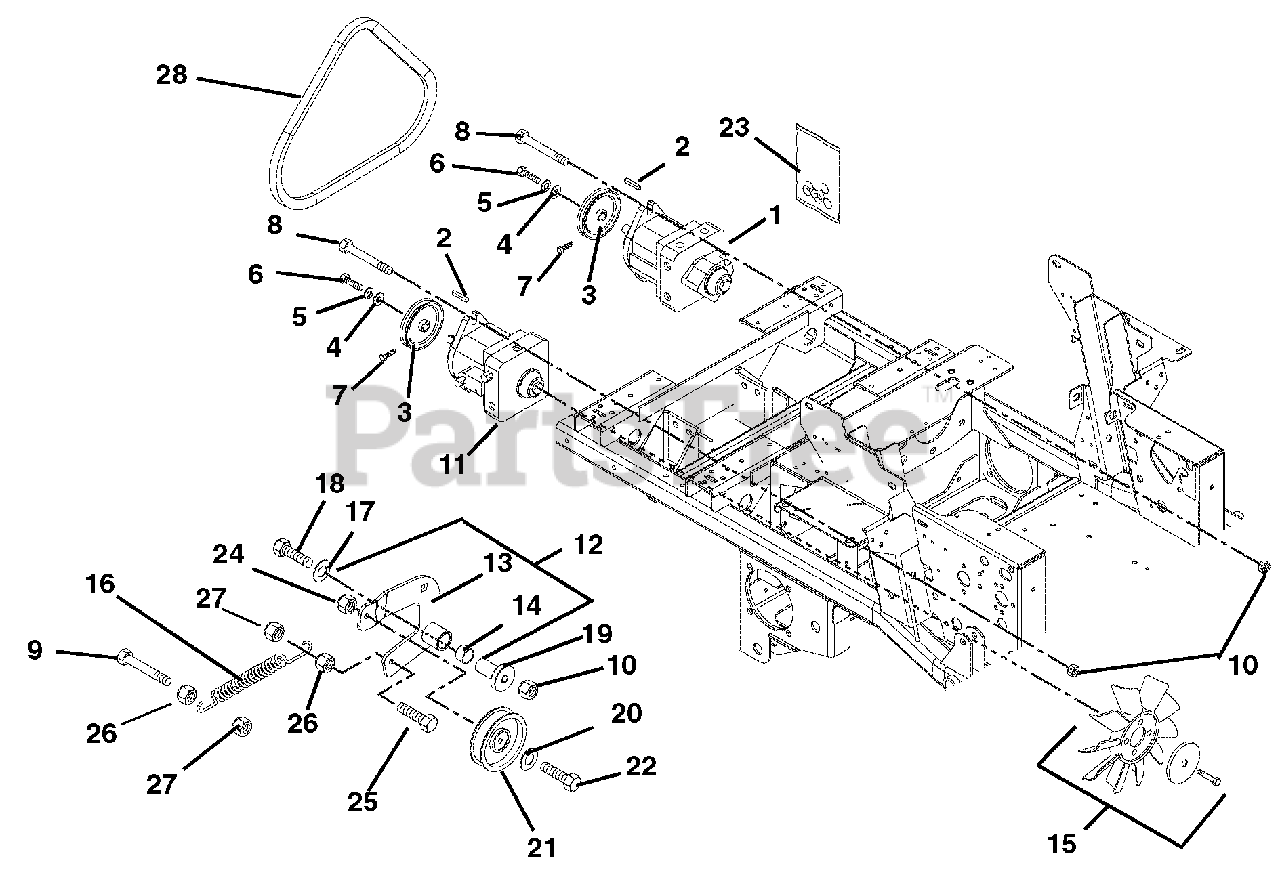

Hydrostatic Pumps, Idlers And Belt Parts Diagram

  • Title

1

Gravely 00583100

Pump, Hydraulic (RTN) with Auxiliary

Note: (RTN) with Auxiliary

$1202.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

Key, Square 5 x 5 x 30mm Plain

$2.49

$

In Stock, Qty 8

0

3

Gravely 07300037

Sheave, Poly-V .671 x 4.125

$90.99

$

In Stock, only 1 left!

0

4

Gravely 06426600

Washer, Flat Steel .281 x 1.000 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05975900

Bolt, Hex M6 x 1 x 16
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

7

Gravely 05980100

Screw, Socket Head .25-20 x .50
(Superseded to 05900127)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00583300

Pump, Hydraulic (RTN)

Note: (RTN)

$1034.99

$

In Stock, only 1 left!

0

12

Gravely 09264300

Assembly, Idler Arm Guard Drive (Includes 13 & 14)

Note: (Includes 13 & 14)

$168.99

$

Usually ships in 4-12 days

0

13

Gravely 09264251

Weldment, Idler Arm Ground Drive

$

$

Not available

14

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 09420500

Fan, Hydro Pump Cooling

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 08321200

Spring, Tension .120 x .845 x 6.500

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 06442000

Washer, Flat Steel .39 x.75 x.125
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

20

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

22

Gravely 05963300

Bolt, Hex .38-16 x 2.0 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

23

Gravely 59203700

Kit, Pump Seal (One kit required for each pump)

Note: (One kit required for each pump)

$90.99

$

Usually ships in 4-12 days

0

24

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

26

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

27

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07242800

Belt, Poly-V 49.50, Hydrostatic 200Z Series

$39.99

$

In Stock, only 1 left!

0
