992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 004500 - 004999) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

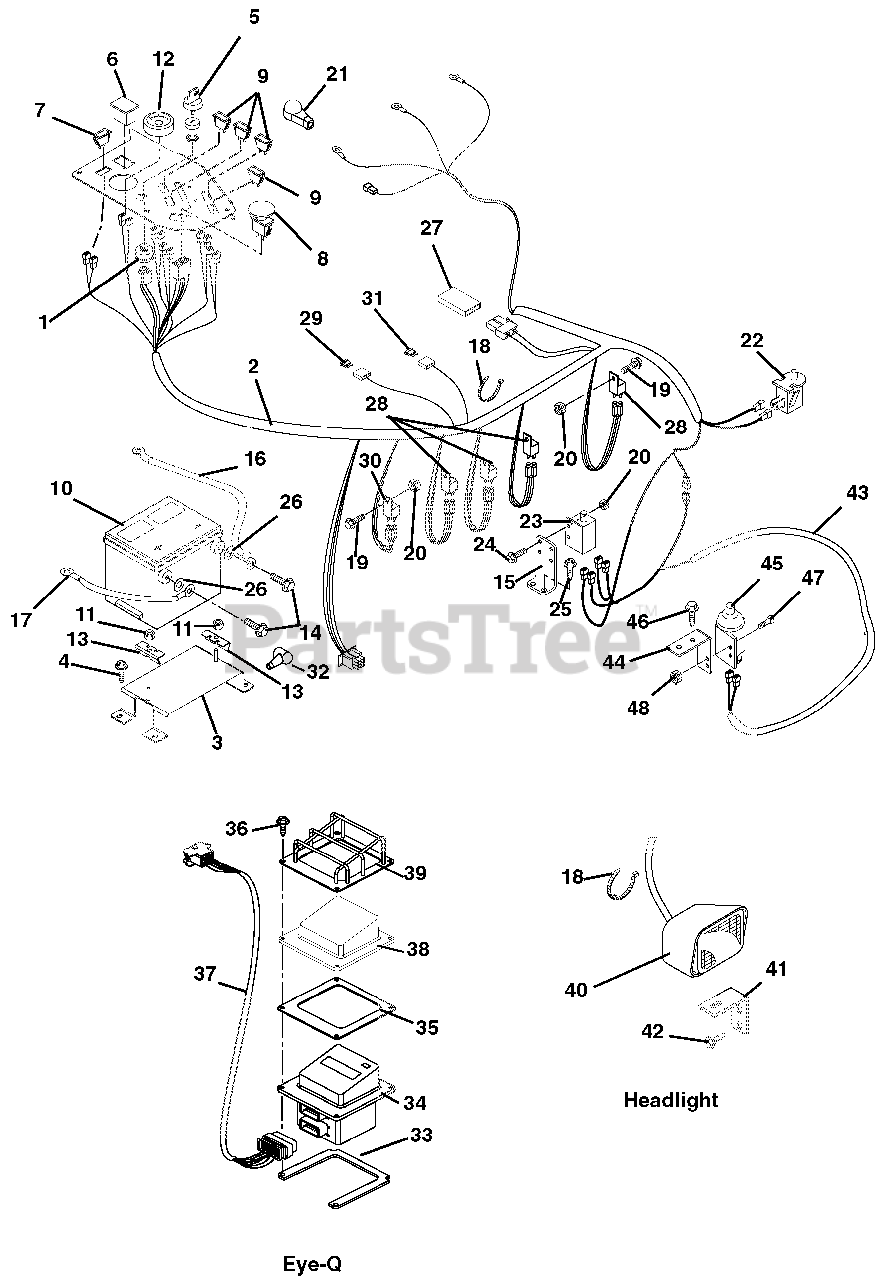

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

2

Gravely 03286500

Harness, Wiring

$297.99

$

Usually ships in 4-12 days

0

3

Gravely 09266551

Weldment, Battery Support

$

$

Not available

4

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09287000

Key, with Cap

$14.99

$

In Stock, Qty 20+

0

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 00456600

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

7

Gravely 08973300

Switch, Light

$6.99

$

In Stock, only 1 left!

0

8

Gravely 01545600

Switch, Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

9

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

10

Gravely 00525500

Battery with Tube

$

$

Not available

11

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09080200

Gauge, Temperature

$98.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

Bracket, Battery Hold-Down

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

Bolt, Hex .25-20 x .75 Grade 5

$

$

Not available

15

Gravely 09275851

Mount, Safety Switch

$21.99

$

In Stock, only 1 left!

0

16

Gravely 03287000

Positive Cable w/Boots

$28.99

$

Usually ships in 4-12 days

0

17

Gravely 09278100

Cable, Negative Battery

$32.99

$

Usually ships in 4-12 days

0

18

Gravely 07517300

Cable Tie

$

$

Not available

19

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 00678000

Boot, Terminal, Red

$

$

Not available

22

Gravely 02754100

Switch, Snap Mounting (N.O.) (Included with Seat)

Note: (N.O.) (Included with Seat)

$9.49

$

In Stock, Qty 20+

0

23

Gravely 03606600

Switch, Single Pole

$17.99

$

In Stock, only 1 left!

0

24

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06435700

Washer, Flat Steel .406 x 1.00 x ..083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

28

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

29

Gravely 21542000

Fuse, ATO 30 Amp (Included with Harness)
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

30

NA

Pre-Heat Timer (Included with Engine)

Note: (Included with Engine)

$

$

Not available

31

Gravely 21542200

Fuse, ATO 60 Amp (Included with Harness)
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

32

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

33

Gravely 00252251

Spacer, Enclosure Mounting (Bottom)

Note: (Bottom)

$25.99

$

Usually ships in 4-12 days

0

34

Gravely 00426200

Assembly, Eye-Q – Enhanced

$

$

Not available

35

Gravely 05600006

Gasket, Eye-Q

$

$

Not available

36

Gravely 06100002

Screw, Machine 10-24 x 1.0 Slotted Pan Black

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 03286100

Harness Jumper (Eye-Q)

Note: (Eye-Q)

$

$

Not available

38

Gravely 00353900

Guard, Element

$

$

Not available

39

Gravely 00266200

Guard, Eye-Q

$

$

Not available

40

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

41

Gravely 09287551

Bracket, Headlight Mounting

$17.99

$

Usually ships in 4-12 days

0

42

Gravely 07412900

Screw, Tapping, .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 09281000

Harness, Wire Adapter, CE

$

$

Not available

44

Gravely 09251253

Switch, Mount

$38.99

$

Usually ships in 4-12 days

0

45

Gravely 09251900

Switch, Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

46

Gravely 07411500

Screw,Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

48

Gravely 06536000

Nut, Locking, Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
