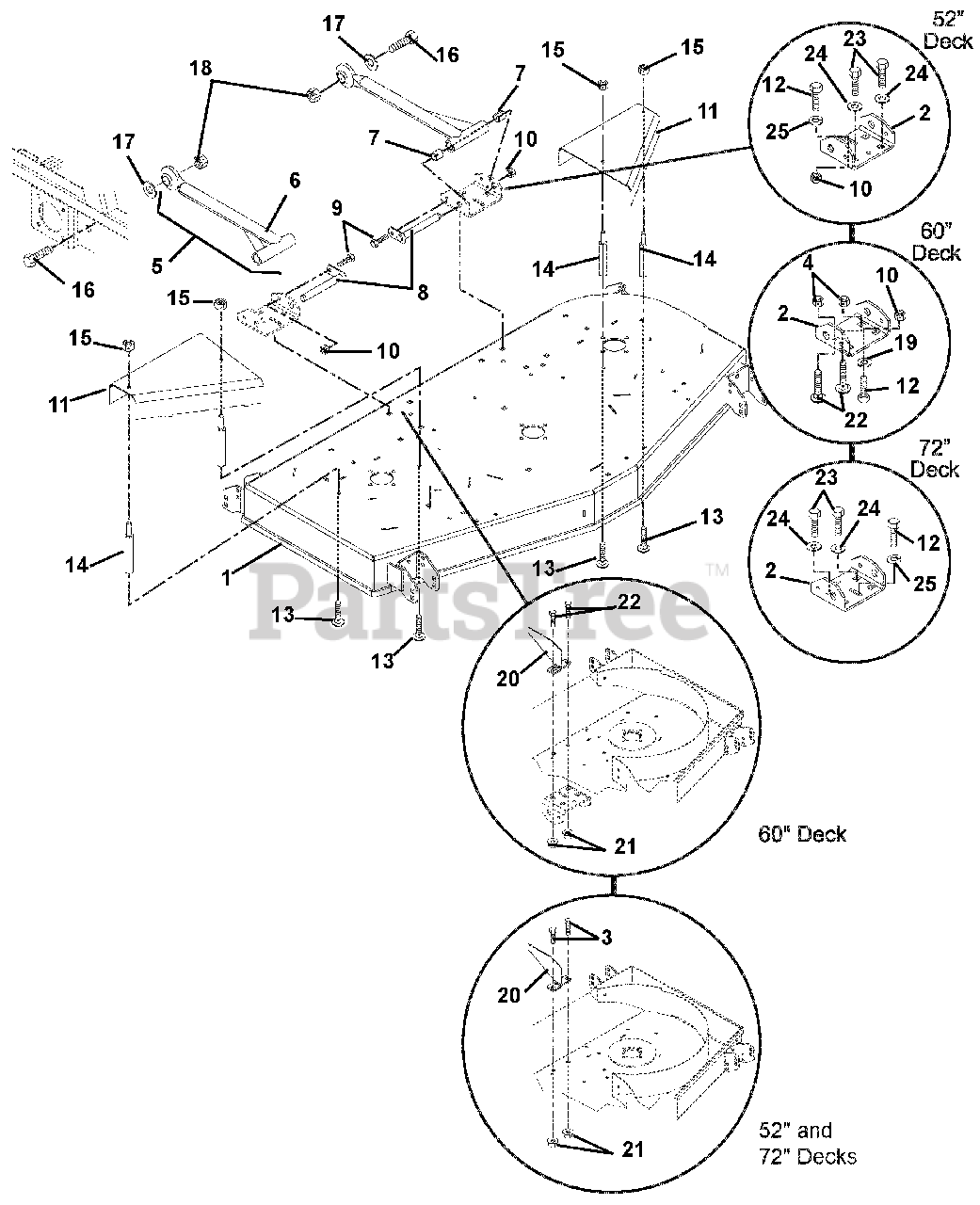

992321 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 000101 - 002000) Mounting Arms And Blet Guards Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

Mounting Arms And Blet Guards Parts Diagram

  • Title

1

Gravely 04950753

Weldment, 52" Mower Deck Rear Discharge

$1352.99

$

Usually ships in 4-12 days

0

Gravely 09293153

Weldment, 60" Mower Deck Rear Discharge

$1293.99

$

Usually ships in 4-12 days

0

Gravely 00373453

Weldment, 72" Mower Deck Rear Discharge

$

$

Not available

2

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 06221200

Bolt, Round Head Square Neck .50-13 x .75 Grade 5 (316, 317)

Note: (316, 317)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 06519700

Nut, Locking Center Jam .50-13 (316, 317)

Note: (316, 317)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 09247800

Assembly, Mower Mounting Arm (Includes Items 6 and 7)

Note: (Includes Items 6 and 7)

$270.99

$

Usually ships in 4-12 days

0

6

Gravely 09247951

Weldment, Mower Mounting Arm

$255.99

$

In Stock, only 1 left!

0

7

Gravely 05435900

Bearing .75 x .875 x 1.00

$5.99

$

In Stock, only 2 left!

0

8

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

Usually ships in 4-12 days

0

9

Gravely 05932600

Bolt, Hex .38-16 x .875 Grade 5

$2.49

$

In Stock, only 1 left!

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09240853

Guard, Pulley Left Hand 60" (316, 317)
(Superseded to 09240851)

Note: (316, 317)

$62.99

$

Usually ships in 4-12 days

0

Gravely 09240753

Guard, Pulley Right Hand 60" (316, 317)
(Superseded to 09240751)

Note: (316, 317)

$46.99

$

In Stock, only 2 left!

0

Gravely 09252553

Guard, Right Hand Pulley72" (321)

Note: (321)

$93.99

$

Usually ships in 4-12 days

0

Gravely 09252453

Guard, Left Hand Pulley72" (321)

Note: (321)

$103.99

$

Usually ships in 4-12 days

0

Gravely 09246253

Guard, Left Hand Pulley 52" (322)

Note: (322)

$51.99

$

In Stock, only 2 left!

0

Gravely 09246353

Guard, Right Hand Pulley 52" (322)

Note: (322)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5 (321, 322)
(Superseded to 05901711)

Note: (321, 322)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 00271200

Standoff 2.75 x 5/16-18

$34.99

$

In Stock, only 2 left!

0

15

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05969500

Bolt, Hex .875-9 x 2.75 Grade 5

$7.99

$

In Stock, only 1 left!

0

17

Gravely 06444700

Washer, Flat Steel .875 x 1.50 x .120
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 06539700

Nut, Locking Center .875-9

$5.99

$

In Stock, Qty 11

0

19

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 (316, 317)
(Superseded to 06401013)

Note: (316, 317)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00385751

Weldment, Rear Deflector Baffle

$

$

Not available

21

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06224600

Bolt, Round Head Square Neck .50-13 x 1.00 Grade 5 (316, 317)
(Superseded to 06200420)

Note: (316, 317)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 05947100

Bolt, Hex .50-13 x 1.00 (321, 322)
(Superseded to 05901715)

Note: (321, 322)

$2.49

$

In Stock, Qty 7

0

24

Gravely 06307300

Washer, Lock .50 x .125 (321, 322)
(Superseded to 06300115)

Note: (321, 322)

$1.49

$

In Stock, Qty 16

0

25

Gravely 06308800

Washer, Lock .38 x .094 (321, 322)
(Superseded to 06300116)

Note: (321, 322)

$0.99

$

In Stock, Qty 20+

0
