992321 (PM 272 Z) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 002500 - 002999) Fuel Tanks And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

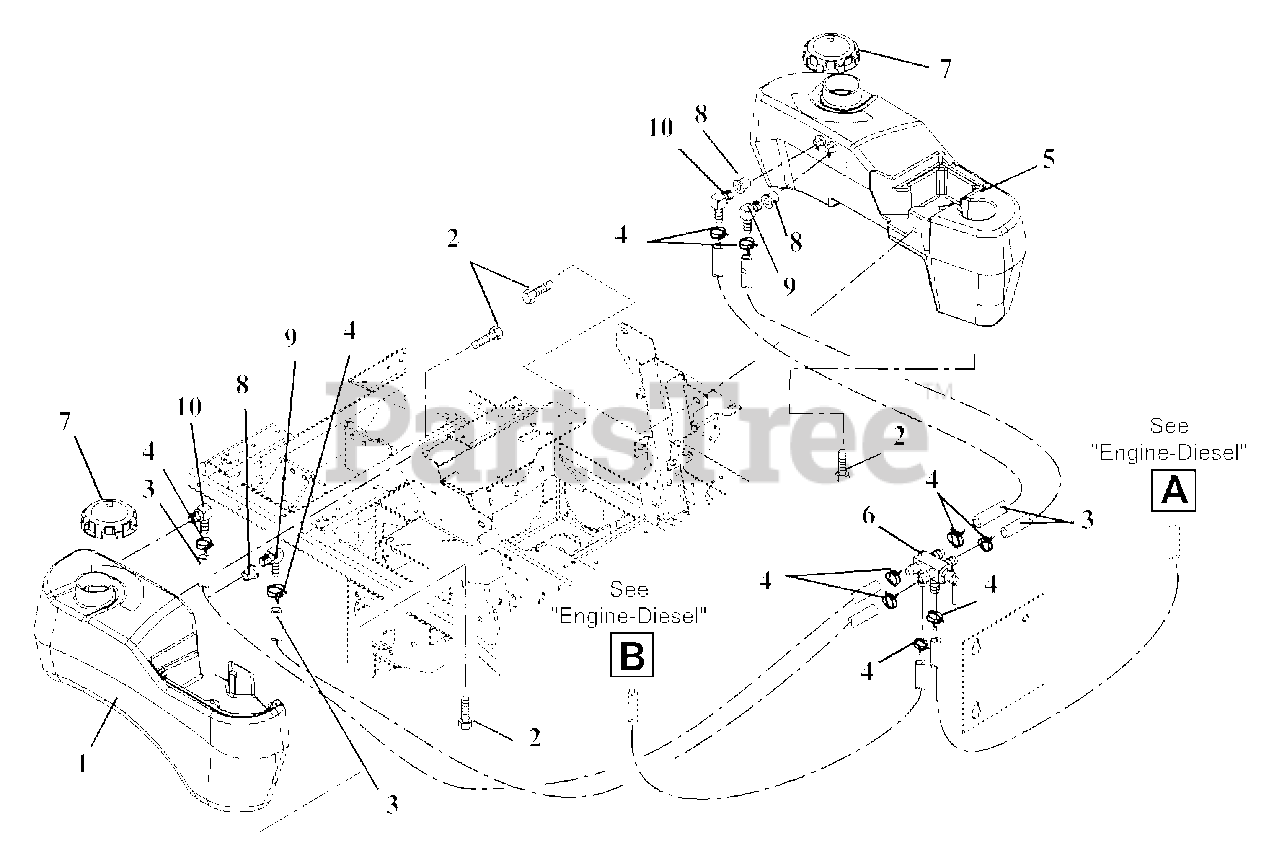

Fuel Tanks And Hoses Parts Diagram

  • Title
1

Ariens 00446200

TANK, GAS RH (200 W/RETURN)
(Superseded to 04340000)

$271.99

$

Usually ships in 4-12 days

0

2

Ariens 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Ariens 00922600

HOSE,5/16 ID

$

$

Not available

4

Ariens 06947900

CLAMP, HOSE WIRE .520/.550

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 00199100

TANK, FUEL-LH(W/RTN)W/O HOSE
(Superseded to 04007000)

Note: (EYE-Q) 200 Series-EFI

$249.99

$

Usually ships in 4-12 days

0

6

Ariens 09289600

VALVE, FUEL

$

$

Not available

7

Ariens 09269100

CAP, FUEL

$34.99

$

Usually ships in 4-12 days

0

8

Ariens 00387300

GROMMET, DAPCO VITON #12240

$9.49

$

In Stock, Qty 20+

0

9

Ariens 21539100

FITTING, TANK ELBOW .31 HOSE

$14.99

$

Usually ships in 4-12 days

0

10

Ariens 21537200

FITTING, TANK (5/16 ELBOW)

$20.99

$

Usually ships in 4-12 days

0
