992321 (PM 272 Z) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 002500 - 002999) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

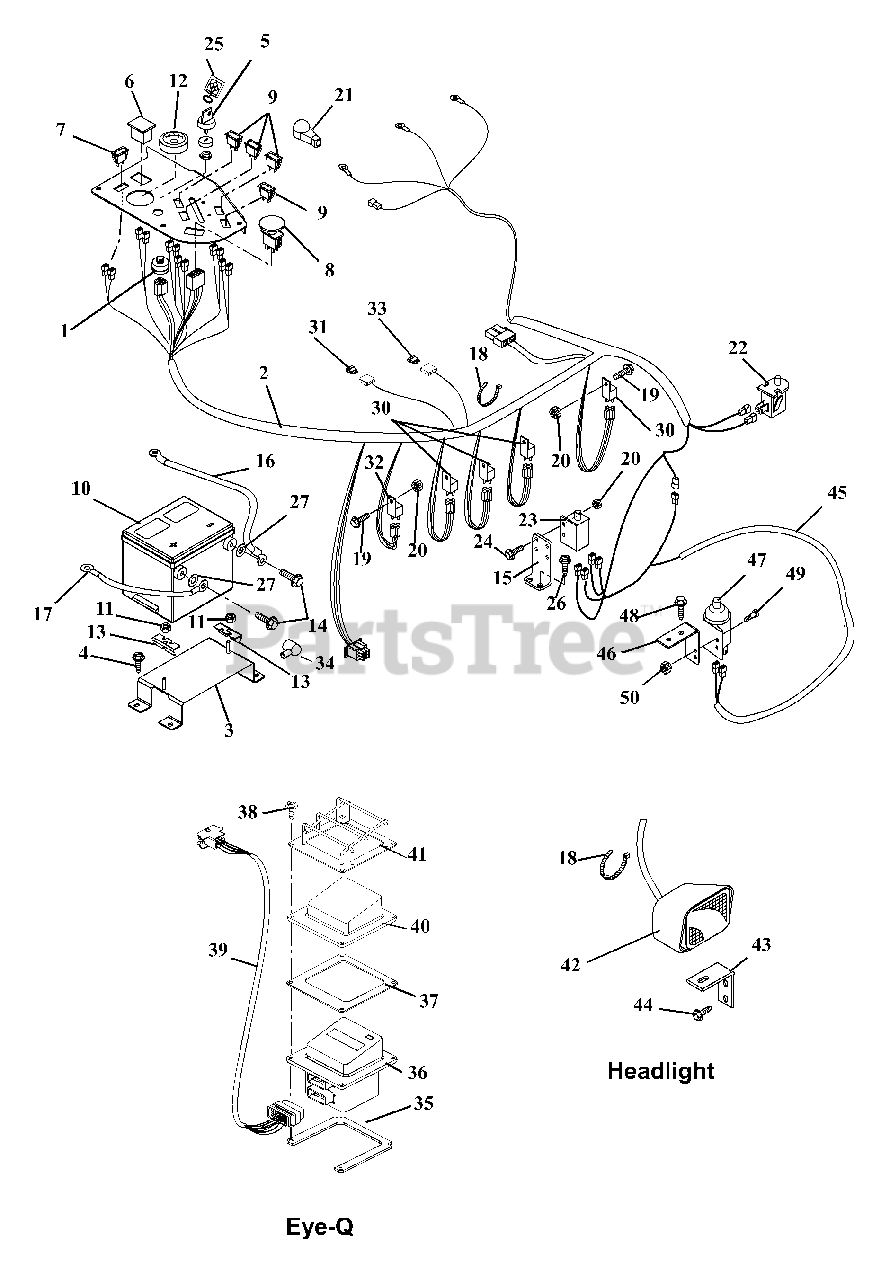

Electrical System Parts Diagram

  • Title

1

Ariens 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

2

Ariens 03286500

HARNESS-MZ HORIZ L/C DIESEL

$297.99

$

Usually ships in 4-12 days

0

3

Ariens 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

Ariens 21510400

IGNITION KEY SET

$10.99

$

Usually ships in 4-12 days

0

6

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

7

Ariens 08973300

SWITCH, 2 POLE/ROCKER

$6.99

$

In Stock, only 1 left!

0

8

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

9

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

10

Ariens 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 09080200

GAUGE, TEMPERATURE

$98.99

$

Usually ships in 4-12 days

0

13

Ariens 09266600

BRKT, BATTERY HOLD-DOWN

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Ariens 09275851

MOUNT, SAFETY SWITCH

$21.99

$

In Stock, only 1 left!

0

16

Ariens 09412100

CABLE, POS BATT 4 GA X 45

$

$

Not available

17

Ariens 09278100

CABLE, NEGATIVE BATTERY 49.00

$32.99

$

Usually ships in 4-12 days

0

18

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

19

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

22

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: (Included with Seat)(N.O)

$9.49

$

In Stock, Qty 20+

0

23

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

24

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Ariens 00457400

KEY CHAIN

$

$

Not available

26

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 21542100

FUSE, ATO 15 AMP

$

$

Not available

29

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

30

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

31

Ariens 21542000

FUSE, ATO 30 AMP
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

32

Pre-Heat Timer

Note: (Included with Engine)

$

$

Not available

33

Ariens 21542200

FUSE, ATO 60 AMP
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

34

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

35

Ariens 00252251

SPACER, ENCLOSURE MTG. (BTM)

Note: (Bottom)

$25.99

$

Usually ships in 4-12 days

0

36

Ariens 00251600

ASSY, EYE-Q

$

$

Not available

37

Ariens 05600006

GASKET-EYE Q

Note: EYE-Q

$

$

Not available

38

Ariens 06100002

SCR-MCH 10-24X1.0 SL PAN BLACK

$3.99

$

Usually ships in 4-12 days

0

39

Ariens 03286100

HARNESS - EYE-Q

Note: (Eye-Q)

$

$

Not available

40

Ariens 00353900

GUARD, ELEMENT

$

$

Not available

41

Ariens 00270300

GUARD, VINYL EYE-Q
(Superseded to 00266251)

Note: EYE-Q

$

$

Not available

42

Ariens 02463600

HEADLIGHT

$83.99

$

Usually ships in 4-12 days

0

43

Ariens 09287551

BRACKET, HEADLIGHT MTG

$17.99

$

Usually ships in 4-12 days

0

44

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 09281000

HARNESS, WIRE ADAPTER CE

$

$

Not available

46

Ariens 09251253

MOUNT - SWITCH

$38.99

$

Usually ships in 4-12 days

0

47

Ariens 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

48

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

50

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
