992321 (PM 272 Z) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 002001 - 002499) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

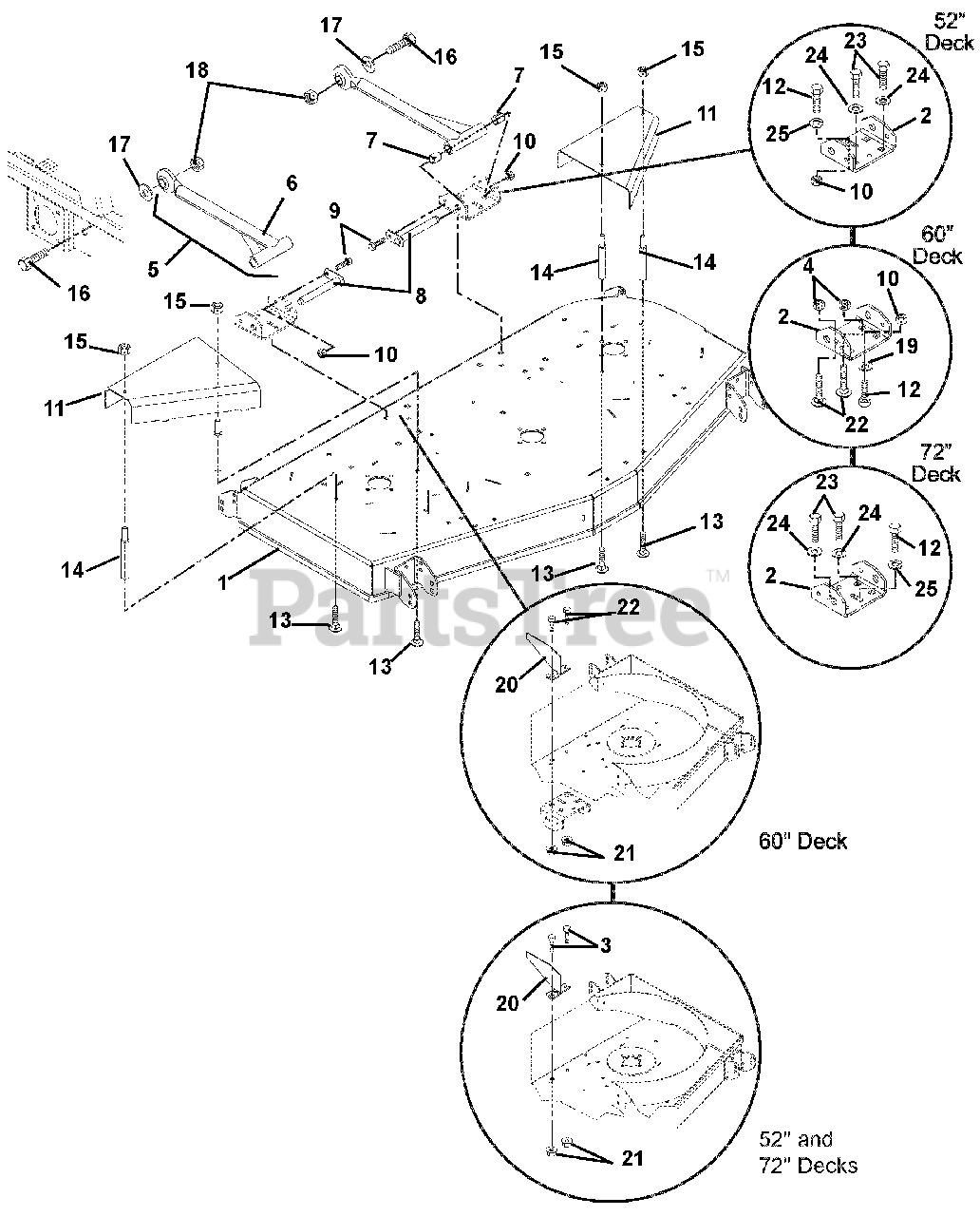

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Ariens 04950753

WMT-52" MOWER DECK-REAR DISCH

$1352.99

$

Usually ships in 4-12 days

0

Ariens 09293153

WELDMENT-60" REAR DIS PAINTED

$1293.99

$

Usually ships in 4-12 days

0

Ariens 00373453

WMT-72" MOWER DECK-REAR DISCH

$

$

Not available

2

Ariens 09240453

BRACKET, MOWER MOUNT (REAR)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 06221200

@BLT-RDHDSQNK .50-13X.75 G5YZ

Note: (316, 317)

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

Note: (316, 317)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 09247800

ASSEMBLY, MOWER MOUNTING ARM

Note: (Includes Items 6 and 7)

$270.99

$

Usually ships in 4-12 days

0

6

Ariens 09247951

WMT, MOWER MTG ARM - BLACK

$255.99

$

In Stock, only 1 left!

0

7

Ariens 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

8

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

9

Ariens 05932600

BLT-HEX .38-16X.875 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

Note: (316, 317)

$62.99

$

Usually ships in 4-12 days

0

Ariens 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

Note: (316, 317)

$46.99

$

In Stock, only 2 left!

0

Ariens 09252553

GUARD, R.H. PULLEY

Note: (321)

$93.99

$

Usually ships in 4-12 days

0

Ariens 09252453

GUARD, L.H. PULLEY

Note: (321)

$103.99

$

Usually ships in 4-12 days

0

Ariens 09246253

GUARD, PULLEY LH

Note: (322)

$51.99

$

In Stock, only 2 left!

0

Ariens 09246353

GUARD, PULLEY RH

Note: (322)

$68.99

$

Usually ships in 4-12 days

0

12

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (321, 322)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

14

Ariens 00271200

STANDOFF, 2.75 X 5/16-18

$34.99

$

In Stock, only 2 left!

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$7.99

$

In Stock, only 1 left!

0

17

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$5.99

$

In Stock, Qty 11

0

19

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (316, 317)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 00385751

WMT-REAR DEFLECTOR BAFFLE-

$

$

Not available

21

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06224600

@BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

Note: (316, 317)

$3.99

$

In Stock, only 3 left!

0

23

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

Note: (321, 322)

$2.49

$

In Stock, Qty 7

0

24

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

Note: (321, 322)

$1.49

$

In Stock, Qty 16

0

25

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (321, 322)

$0.99

$

In Stock, Qty 20+

0
