992321 (PM 272 H) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 005000 & Above) Hydraulic Lift Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

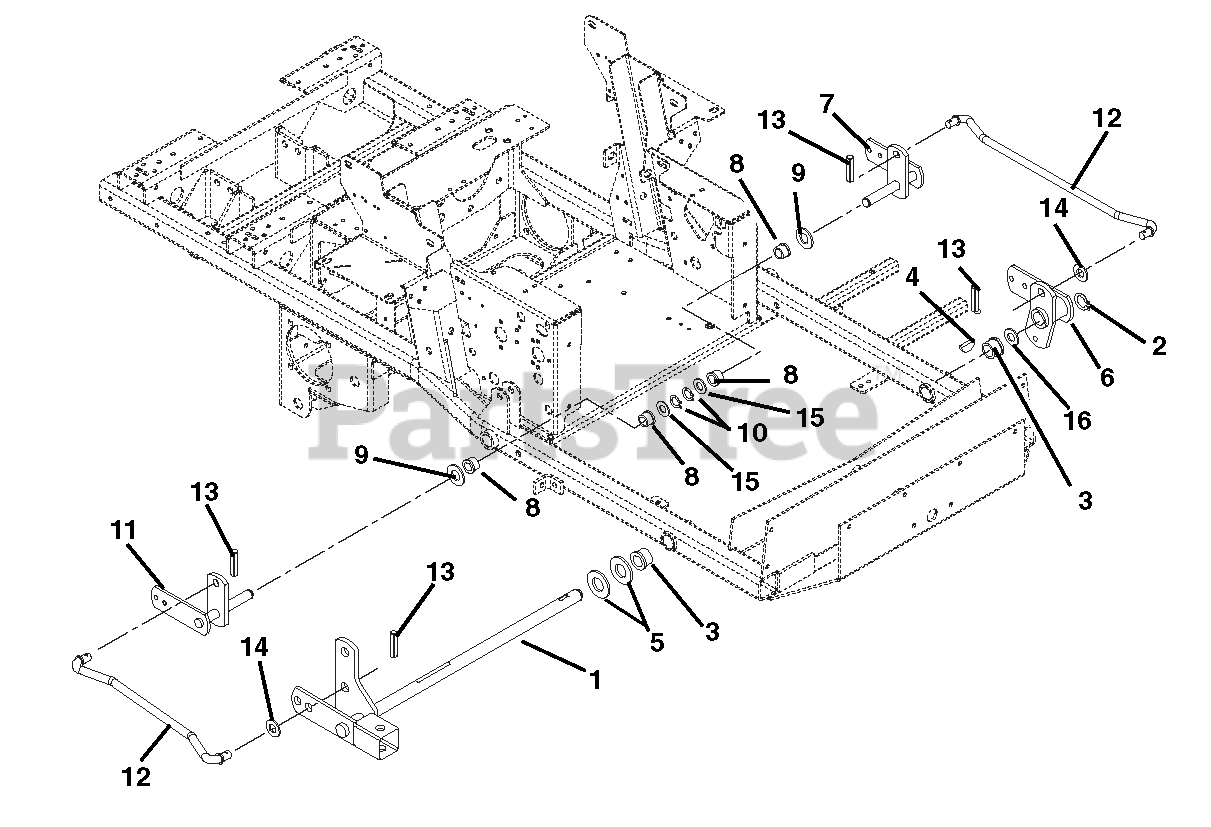

Hydraulic Lift Parts Diagram

  • Title

1

Ariens 00456000

WMT, FRONT MOWER LIFT (HYD)

$262.99

$

In Stock, only 1 left!

0

2

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

3

Ariens 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$6.99

$

In Stock, only 3 left!

0

4

Ariens 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

5

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 00441000

WMT, LH FRONT MOWER LIFT

$99.99

$

Usually ships in 4-12 days

0

7

Ariens 00499200

WMT-LH REAR LIFT ARM (DIESEL)
(Superseded to 04072100)

$99.99

$

Usually ships in 4-12 days

0

8

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

9

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

10

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

11

Ariens 00499100

WMT-RH REAR LIFT ARM (DIESEL)
(Superseded to 04072200)

$129.99

$

Usually ships in 4-12 days

0

12

Ariens 04063100

ROD-LIFT ASSIST 19.35"

$68.99

$

In Stock, only 2 left!

0

13

Ariens 05800001

PIN-ROLL .250X1.25 STNLESS STL

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

15

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

16

Ariens 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$4.99

$

In Stock, only 3 left!

0
