992321 (PM 272 H) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 005000 & Above) Brake Linkage Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

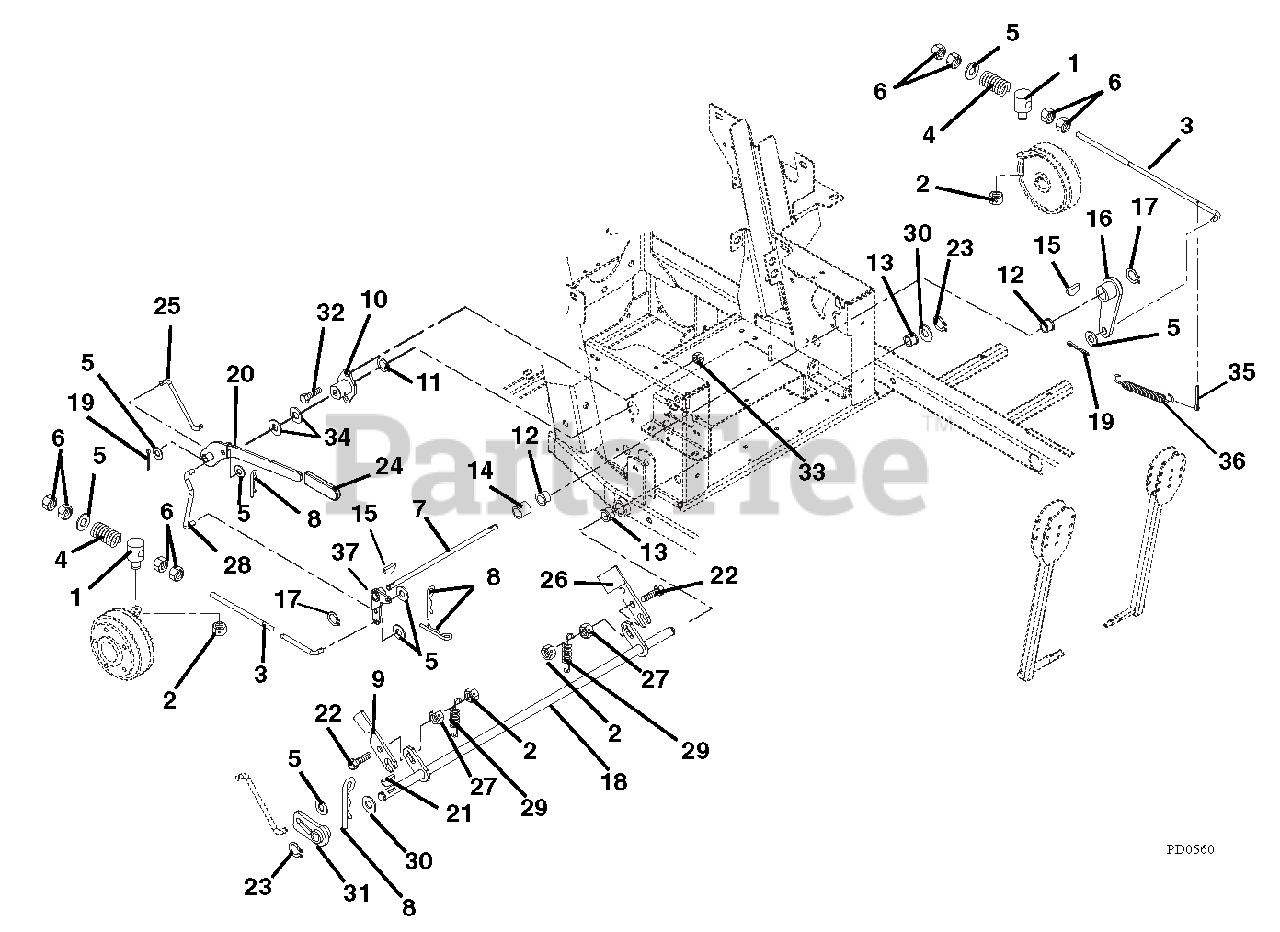

Brake Linkage Parts Diagram

  • Title

1

Ariens 09267300

PIN, PIVOT/TRUNNION

$6.99

$

In Stock, only 1 left!

0

2

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 08873000

PTO LINK ROD, PRO-150

$38.99

$

Usually ships in 4-12 days

0

4

Ariens 08300027

SG-COMP .142 X .710 X 1.75

$9.49

$

In Stock, only 2 left!

0

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03825800

SHAFT, 200 BRAKE

$62.99

$

Usually ships in 4-12 days

0

8

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 09267700

SLIDE, INTERLOCKING BRAKE

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05534700

BUSHING, FLANGED

$21.99

$

In Stock, only 2 left!

0

11

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

13

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

14

Ariens 05500900

BSHG-SLV .750X1.000X.750

$9.99

$

Usually ships in 4-12 days

0

15

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

16

Ariens 00258600

WMT, BRAKE ARM

$77.99

$

Usually ships in 4-12 days

0

17

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

18

Ariens 09268000

WMT, MECHANICAL BRAKE

$187.99

$

In Stock, only 1 left!

0

19

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

20

Ariens 03254100

WMT, BRAKE HANDLE

$112.99

$

Usually ships in 4-12 days

0

21

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

22

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

24

Ariens 07523000

GRIP,HANDLE

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 09268400

LINKAGE, BRAKE ACTUATING

$30.99

$

In Stock, only 1 left!

0

26

Ariens 09275900

INTERLOCK, SAFETY SWITCH

$17.99

$

Usually ships in 4-12 days

0

27

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 09268300

LINKAGE, BRAKE ACTUATING

$34.99

$

Usually ships in 4-12 days

0

29

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

30

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 09268100

WMT, PARKING BRAKE HUB

$190.99

$

Usually ships in 4-12 days

0

32

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

35

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

36

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

37

Ariens 03825900

WMT, 200 BRAKE ACT. ARM

$65.99

$

Usually ships in 4-12 days

0
