992321 (PM 272 H) - Ariens Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 003200 - 004499) Radiator And Radiator Brackets Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu Diesel

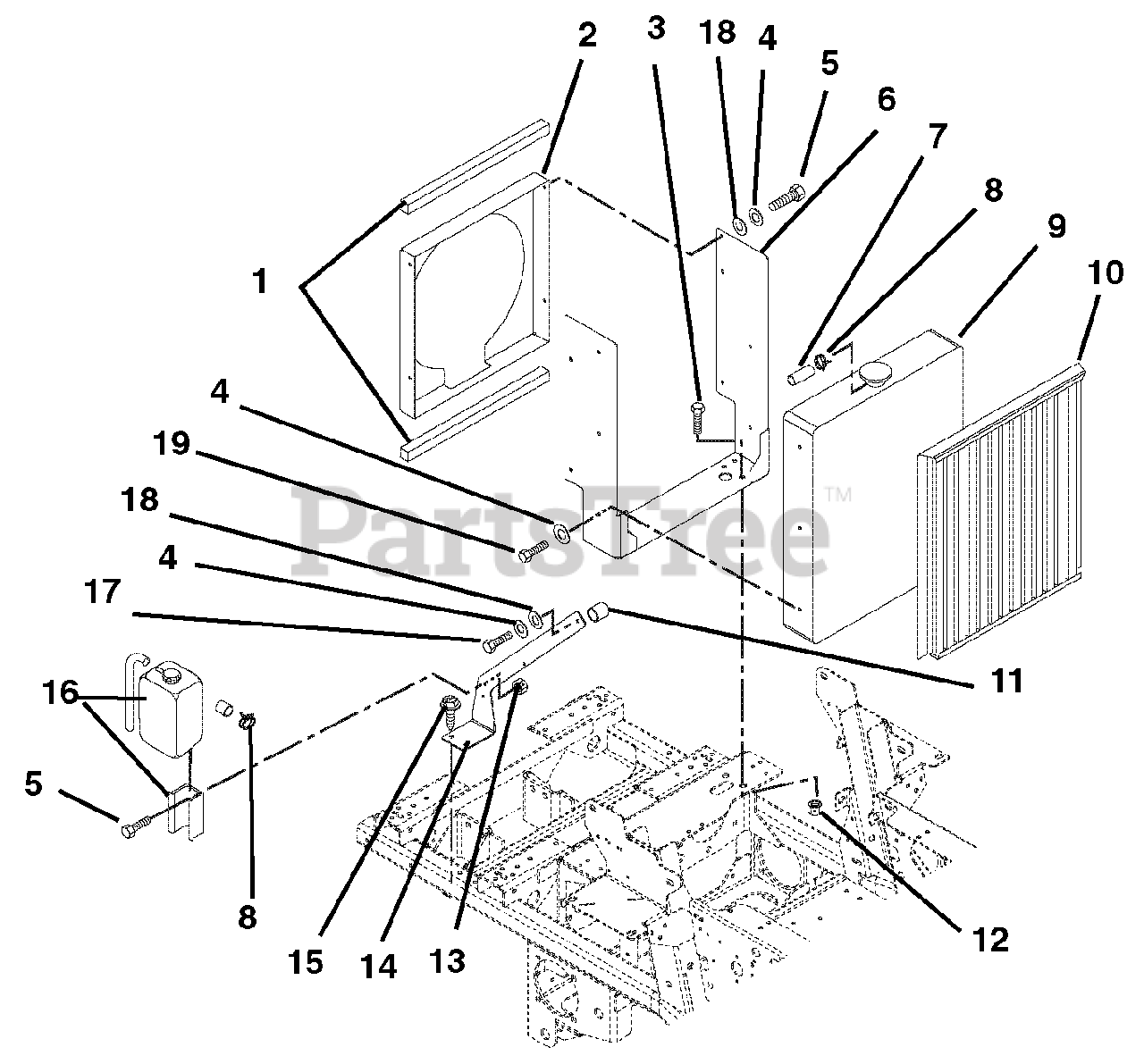

Radiator And Radiator Brackets Parts Diagram

  • Title

1

Ariens 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

Usually ships in 4-12 days

0

2

Ariens 09266851

WMT, RADIATOR SHROUD

$69.99

$

Usually ships in 4-12 days

0

3

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 09265851

WMT, RADIATOR MOUNTING BKRT

$

$

Not available

7

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

9

Radiator (Comes with the engine)

Note: (Comes with the engine)

$

$

Not available

10

Ariens 09265400

SCREEN, RADIATOR (DIESEL)

$142.99

$

Usually ships in 4-12 days

0

11

Ariens 09235400

SPACER .328 X .76 X 1.01

$

$

Not available

12

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 09278651

BRKT, OVERFLOW MOUNTING - BLK

$

$

Not available

15

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

16

Reservior Overflow (Comes with the engine)

Note: (Comes with the engine)

$

$

Not available

17

Ariens 05979200

@BLT-HEX M6-1.00X45 YWZC

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0
