992320 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 & Above) Engine And Clutch Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

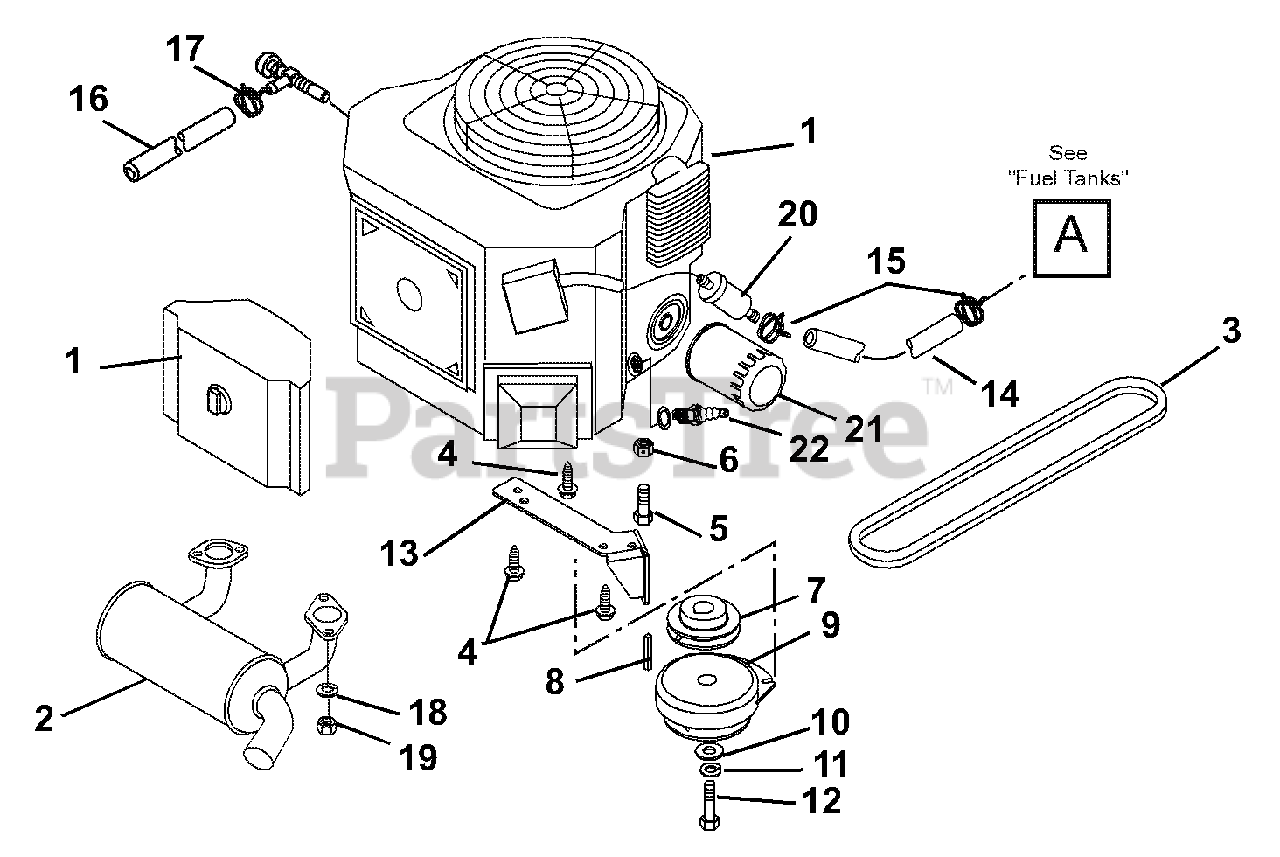

Engine And Clutch Parts Diagram

  • Title
1

Ariens 08200013

ENGINE, 15HP KAW FH451V

$

$

Not available

2

Ariens 09298000

MUFFLER, KAW. (COMPACT-Z)

$236.99

$

Usually ships in 4-12 days

0

3

Ariens 07200010

V-BELT, HA-RAW EDGE

$36.99

$

In Stock, only 2 left!

0

4

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

5

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07328200

PLY-V 4.OO X 1.00

$79.99

$

In Stock, only 2 left!

0

8

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 5

0

9

Ariens 00191700

CLUTCH,ELECTRIC PTO

$374.99

$

In Stock, only 2 left!

0

10

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

11

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

12

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

13

Ariens 00367551

STOP, CLUTCH
(Superseded to 00395651)

$96.99

$

Usually ships in 4-12 days

0

14

Ariens 00365900

HOSE, 5.75"-1/4" ID GAS LINE

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

16

Ariens 00172900

HOSE, 1/2 X 6.00

$9.49

$

Usually ships in 4-12 days

0

17

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

18

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$

$

Not available

20

Ariens 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

21

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

22

Ariens 21536100

PLUG, SPARK

$3.49

$

In Stock, only 2 left!

0
