992320 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 & Above) Deck Lift Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

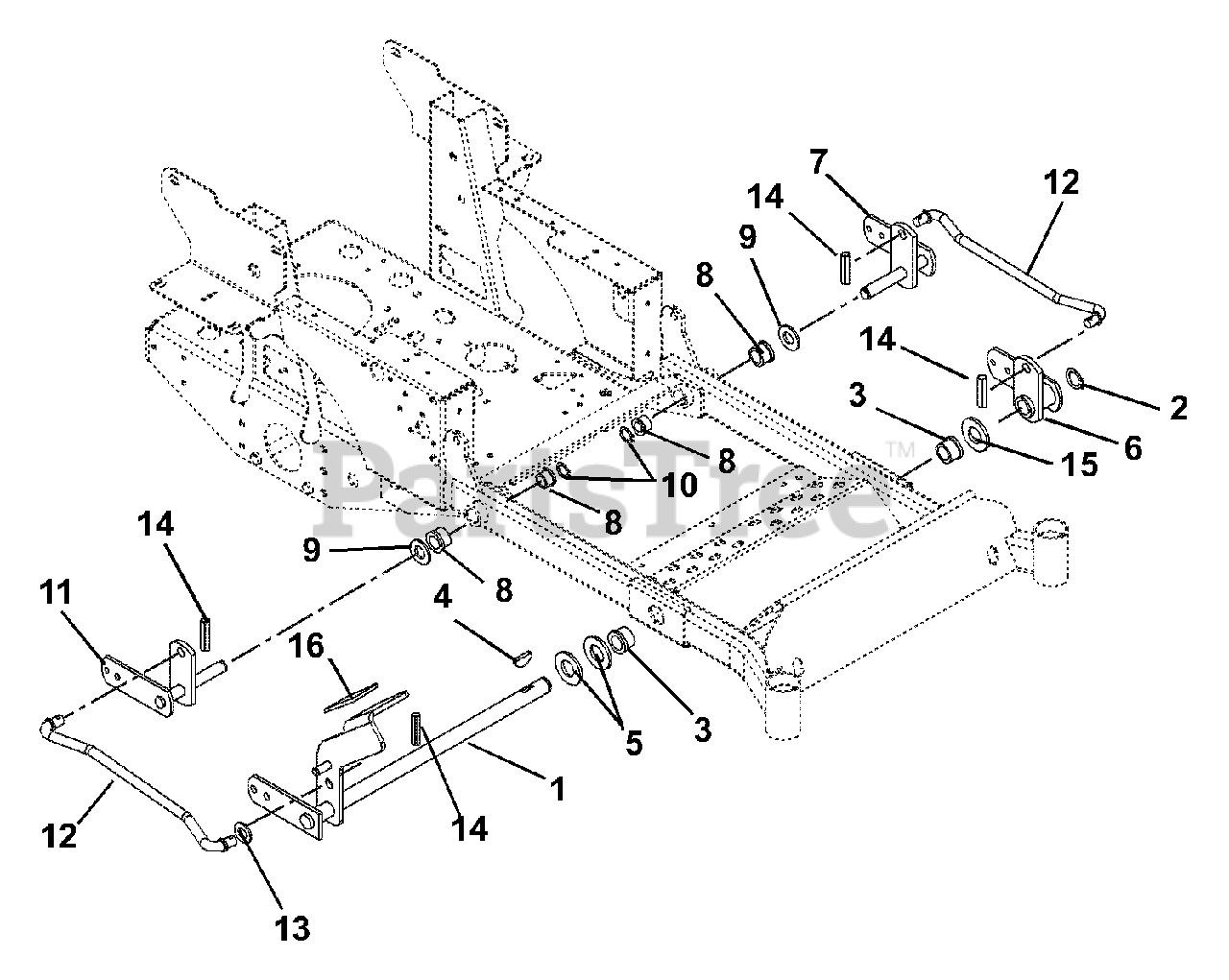

Deck Lift Parts Diagram

  • Title

1

Ariens 09296500

WMT, FRONT MOWER LIFT

$

$

Not available

2

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

3

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 12

0

4

Ariens 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

5

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 09289800

WMT, FRONT MOWER LIFT-LH

$180.99

$

Usually ships in 4-12 days

0

7

Ariens 09290000

WMT, REAR LIFT ARM -LH

$124.99

$

Usually ships in 4-12 days

0

8

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

9

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

10

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

11

Ariens 09289900

WMT, REAR LIFT ARM - RH

$

$

Not available

12

Ariens 00164700

ROD, LIFT ASSIST 16.35"
(Superseded to 04063000)

$

$

Not available

13

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 05800001

PIN-ROLL .250X1.25 STNLESS STL

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0
