992320 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000500 - 000999) Mechanical Lift Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

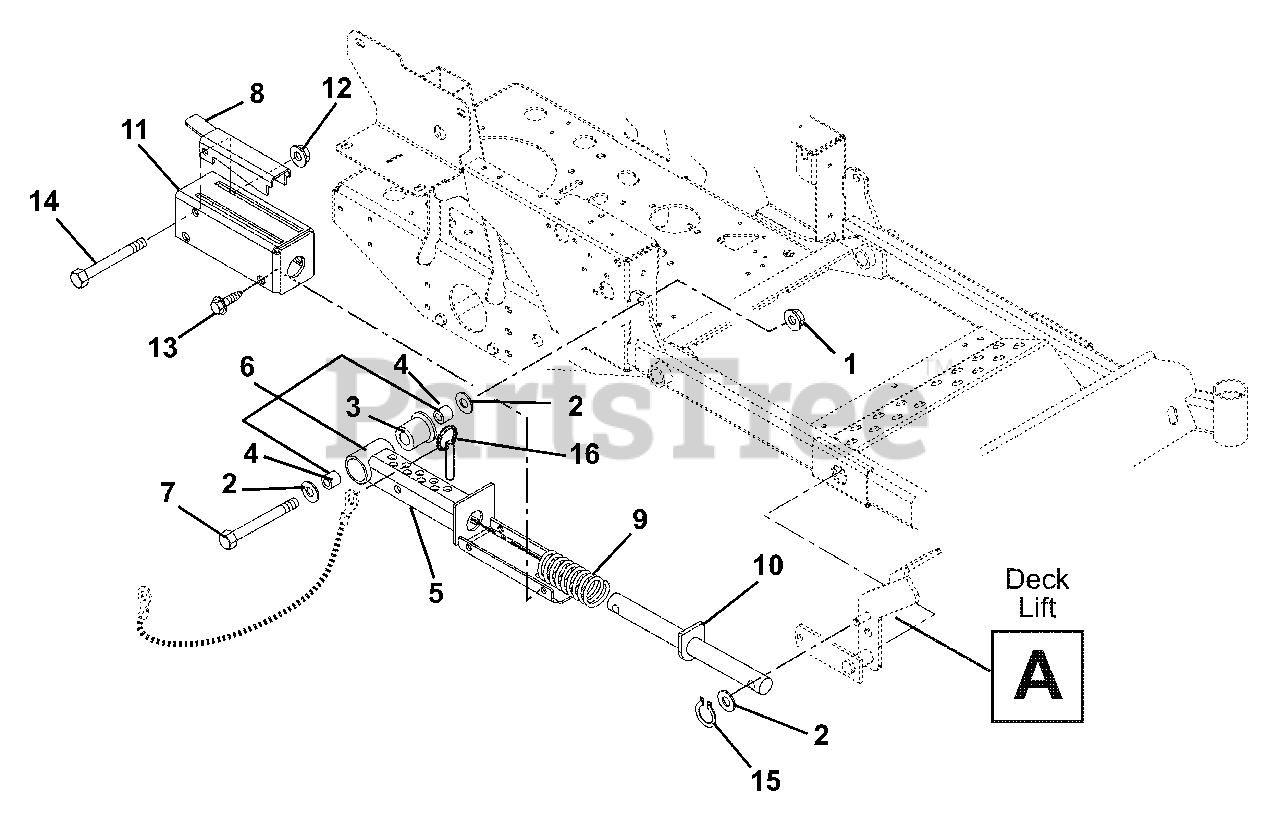

Mechanical Lift Parts Diagram

  • Title

1

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

4

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 10

0

5

Ariens 09299251

WMT, MECH LIFT
(Superseded to 09286251)

$216.99

$

Usually ships in 4-12 days

0

6

Ariens 09298300

ASSM, MECH LIFT
(Superseded to 09286251)

Note: (Includes Items 4 & 5)

$216.99

$

Usually ships in 4-12 days

0

7

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 09299651

LOCK-UP, MECH LIFT

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 08338100

SPR-COMP 1.13X1.48X5.10 WD 165

Note: (320)

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 09299300

WMT, MECH LIFT SHAFT (.50)

$33.99

$

Usually ships in 4-12 days

0

11

Ariens 09299451

WMT, MECH LIFT COVER

$45.99

$

Usually ships in 4-12 days

0

12

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

16

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0
