992320 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000500 - 000999) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

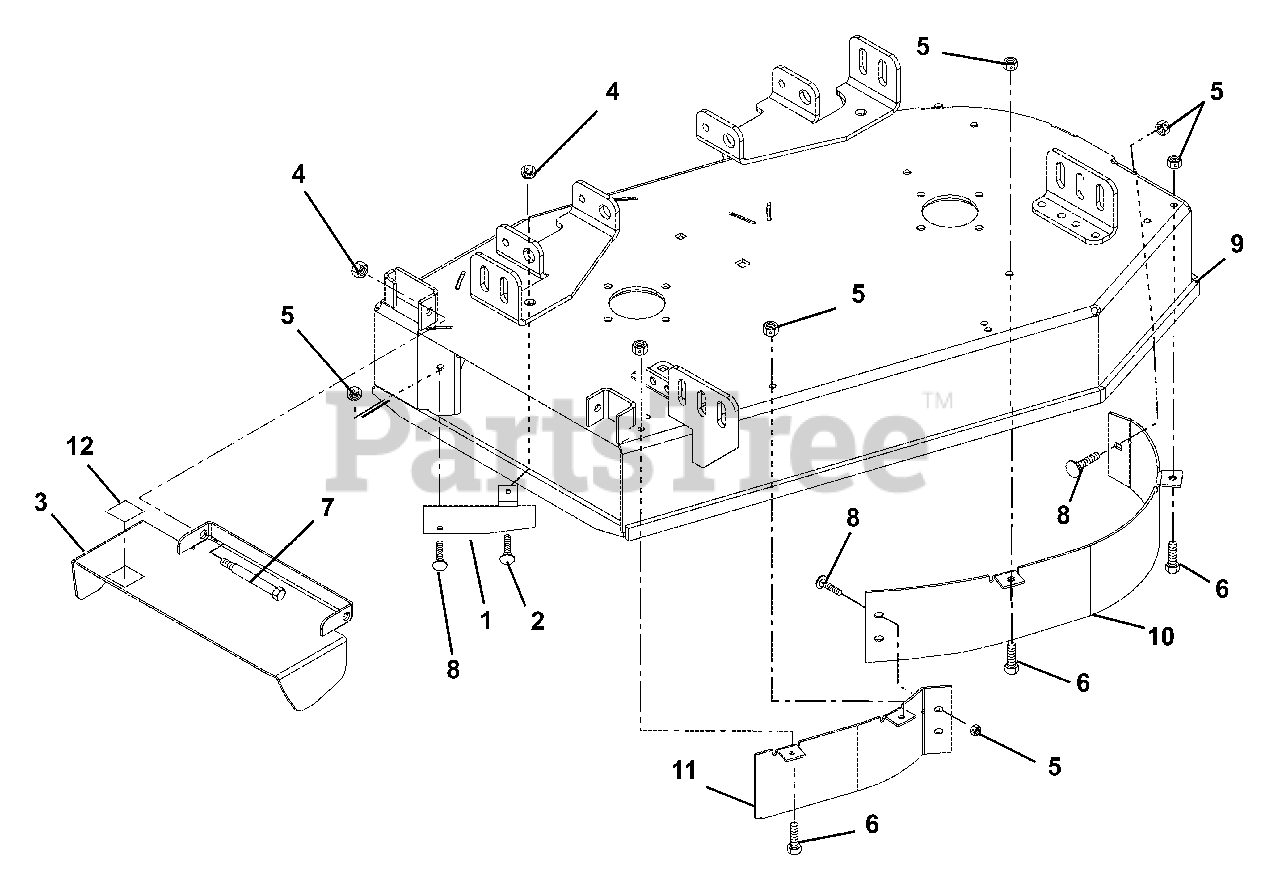

Deck, Discharge Chute And Baffles Parts Diagram

  • Title
1

Ariens 00174251

BAFFLE, DEFLECTOR

$32.99

$

Usually ships in 4-12 days

0

2

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

3

Ariens 00262353

WMT, 34" DISCHARGE CHUTE-CE

Note: (992320)

$

$

Not available

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

8

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 09296953

WMT, 34" DECK

$1126.99

$

Usually ships in 4-12 days

0

10

Ariens 09297051

BAFFLE, 34" FRONT LH

$94.99

$

Usually ships in 4-12 days

0

11

Ariens 09297151

BAFFLE, 34" FRONT RH

$71.99

$

Usually ships in 4-12 days

0

12

Ariens 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0
