992320 (PM 34 Z) - Ariens Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000500 - 000999) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

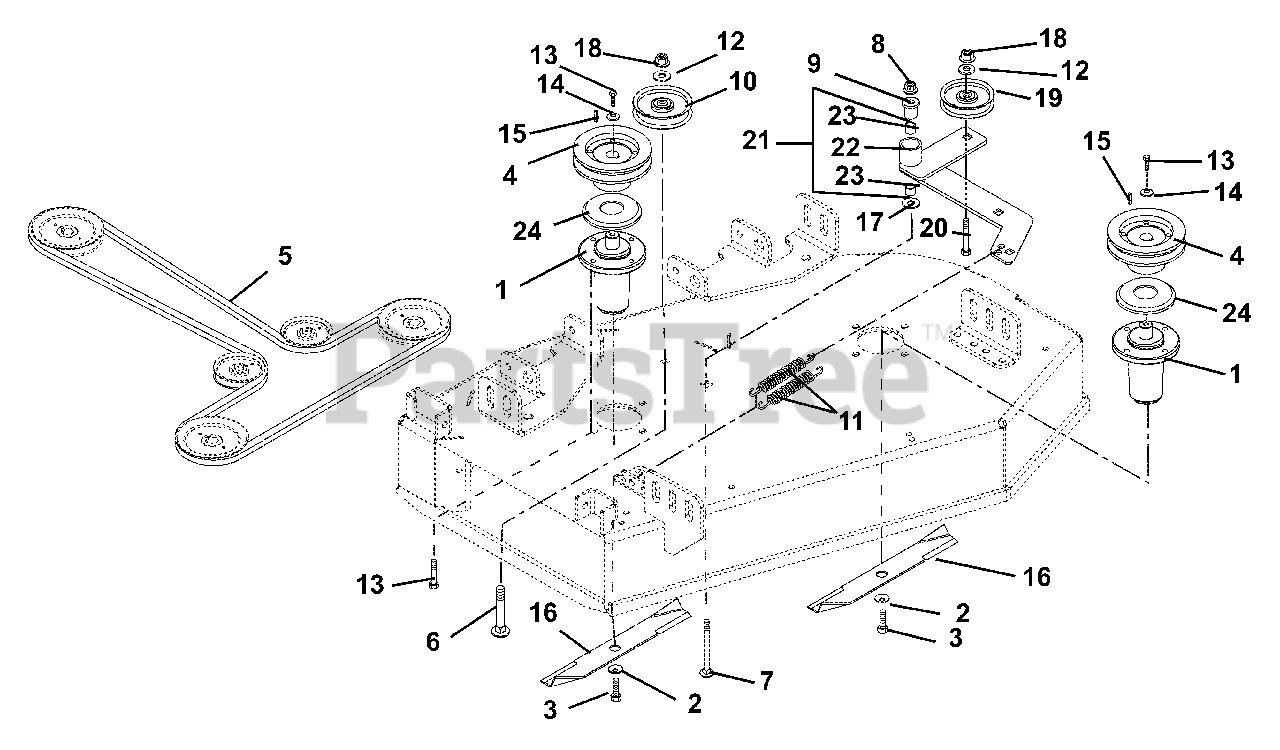

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$262.99

$

In Stock, only 4 left!

0

2

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

3

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 00191800

SHEAVE, 5.00 SPINDLE (1.000ID)

Note: (1.00 I.D.)

$82.99

$

In Stock, only 1 left!

0

5

Ariens 07241000

V-BELT, HB-WRAPPED

$125.99

$

Usually ships in 4-12 days

0

6

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

7

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 2 left!

0

8

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

10

Ariens 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

11

Ariens 08300002

SPRING, EXT0NSION DIA1.0X6.0LG
(Superseded to 08300513)

$34.99

$

Usually ships in 4-12 days

0

12

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

16

Ariens 09073800

BLADE, 50" MOWER SAND

$

$

Not available

16

Ariens 08866800

BLD,MULCHING 50" MWR

$33.99

$

In Stock, Qty 20+

0

17

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

18

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07300004

IDLER, FLAT 4.00 X .38 (1.OOW)

Note: (1.00 W)

$53.99

$

In Stock, only 2 left!

0

20

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

21

Ariens 09296800

ASSM, IDLER ARM PIVOT

Note: (Contains Items 22 & 23)

$

$

Not available

22

Ariens 09296751

WMT, IDLER PIVOT ARM

$141.99

$

Usually ships in 4-12 days

0

23

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

24

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0
