992318 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000500 - 000999) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

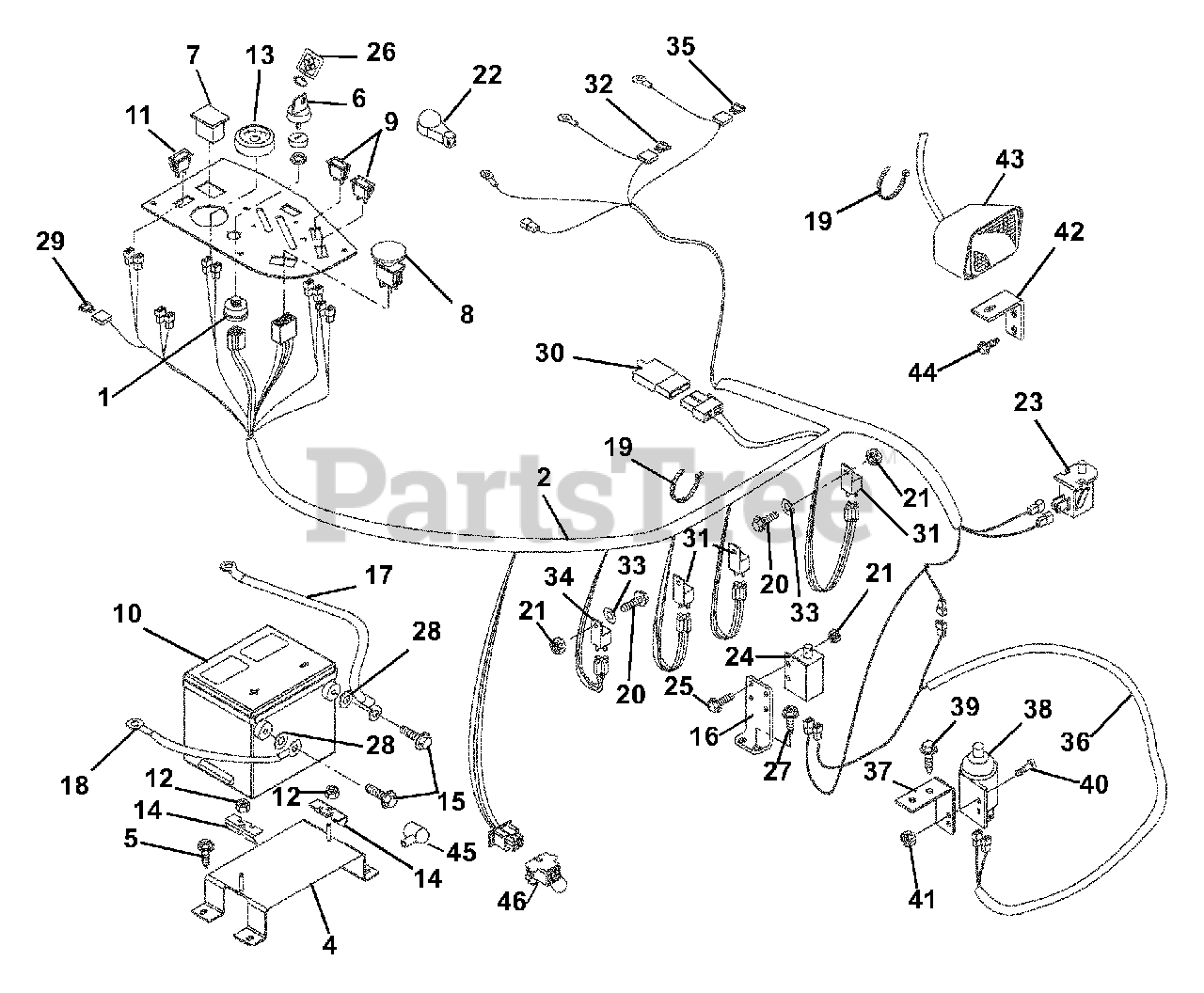

Electrical System Parts Diagram

  • Title

1

Gravely 00168400

Switch, Ignition (Diesel)

Note: (060, 061, 318, 319)

$56.99

$

In Stock, only 1 left!

0

1

Gravely 09089700

Switch, Ignition
(Superseded to 04331700)

Note: (058, 059)

$43.99

$

In Stock, Qty 11

0

2

Gravely 00251200

Harness, Wiring (Diesel)
(Superseded to 00360500)

Note: (060, 061, 318, 319)

$

$

Not available

3

Gravely 00251100

Harness, Wire (Gas)
(Superseded to 00360301)

Note: (058, 059)

$

$

Not available

4

Gravely 09266551

Weldment, Battery Support

$

$

Not available

5

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09287000

Key-with Cap

$14.99

$

In Stock, Qty 20+

0

6

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 00539300

Plug

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 01545600

Switch-Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

9

Gravely 050673

Light-Indicator Kit
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

10

Gravely 00525500

Battery with Tube

$

$

Not available

11

Gravely 08973300

Switch, Light

$6.99

$

In Stock, only 1 left!

0

12

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09080200

Gauge, Temperature

$98.99

$

Usually ships in 4-12 days

0

14

Gravely 09266600

Bracket, Battery Hold-Down

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 00526400

Bolt-Hex .25-20 x .75 Grade 5

$

$

Not available

16

Gravely 09275851

Mount, Safety Switch

$21.99

$

In Stock, only 1 left!

0

17

Gravely 09412100

Positive Cable

$

$

Not available

17

Gravely 09411100

Positive Cable

$

$

Not available

18

Gravely 09278100

Cable, Negative Battery

$32.99

$

Usually ships in 4-12 days

0

18

Gravely 09411000

Ground Cable

$

$

Not available

19

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

20

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

06116090

Screw-Machine 10-24 x .75 Hex Washer Head

$

$

Not available

21

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07533200

Eyelet Terminal Boot

$3.49

$

In Stock, only 3 left!

0

23

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (Included with Seat)

$9.49

$

In Stock, Qty 20+

0

24

Gravely 03657100

Switch-Single Pole

$9.49

$

In Stock, only 2 left!

0

25

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

26

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

27

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06435700

Washer-Flat-Steel .406 x 1.00 x ..083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00524700

Fuse, 15 Amp

$

$

Not available

30

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

31

Gravely 040216

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

32

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

33

Gravely 06442300

Washer-Flat-Steel .25 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0

34

Pre-Heat Timer

Pre-Heat Timer

Note: (Included with Engine)

$

$

Not available

35

Gravely 21540600

Fuse, 50 AMP (Maxi Fuse)

Note: (Included with Harness)

$

$

Not available

35

Gravely 08961800

Fuse, 25 Amp

Note: (Included with Harness)

$3.99

$

In Stock, only 4 left!

0

36

Gravely 09281000

Harness, Wire Adapter CE

Note: (318, 319)

$

$

Not available

37

Gravely 09251253

Mount- Switch (318, 319)

Note: (318, 319)

$38.99

$

Usually ships in 4-12 days

0

38

Gravely 09251900

Switch-Single Pole (N.O.) with Cover

Note: (318, 319)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 07411500

Screw-Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

Note: (318, 319)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

Note: (318, 319)

$2.49

$

In Stock, Qty 15

0

41

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

Note: (318, 319)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 09287551

Bracket, Headlight Mounting

$17.99

$

Usually ships in 4-12 days

0

43

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

44

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

46

Gravely 00288900

Harness, Eye-Q
(Superseded to 03286100)

$

$

Not available
