992318 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 000499) Fuel Tanks And Hoses-Diesel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

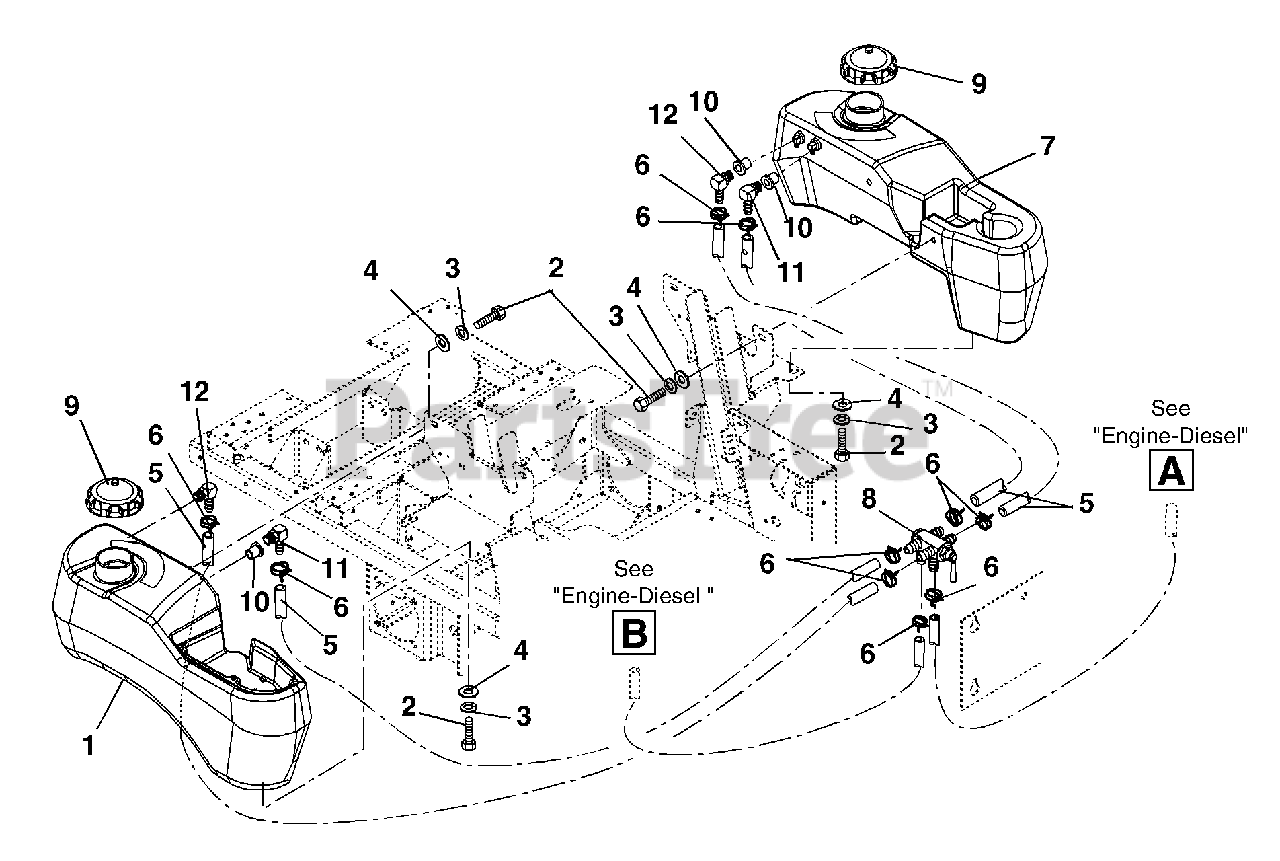

Fuel Tanks And Hoses-Diesel Parts Diagram

  • Title

1

Gravely 09290900

Tank, Fuel-Right Hand (060, 061, 318, 319)
(Superseded to 04004800)

Note: (060, 061, 318, 319)

$219.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 048544

Hose, .31 ID (060, 061, 318, 319)
(Superseded to 00922600)

Note: (060, 061, 318, 319)

$

$

Not available

6

Gravely 06947900

Clamp, Hose Wire .52/.55 (060, 061, 318, 319)

Note: (060, 061, 318, 319)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 09291000

Tank, Fuel-Left Hand (with Return) (060, 061, 318, 319)
(Superseded to 04007000)

Note: (with Return) (060, 061, 318, 319)

$249.99

$

Usually ships in 4-12 days

0

8

Gravely 09289600

Valve, Fuel (060, 061, 318, 319)

Note: (060, 061, 318, 319)

$

$

Not available

9

Gravely 09269100

Cap, Fuel (060, 061, 318, 319)

Note: (060, 061, 318, 319)

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

11

Gravely 21539100

Fitting, Tank (060, 061, 318, 319)

Note: (060, 061, 318, 319)

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 21537200

Fitting, Tank (060, 061, 318, 319)

Note: (060, 061, 318, 319)

$20.99

$

Usually ships in 4-12 days

0
