992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 005000 - 005999) Seat Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

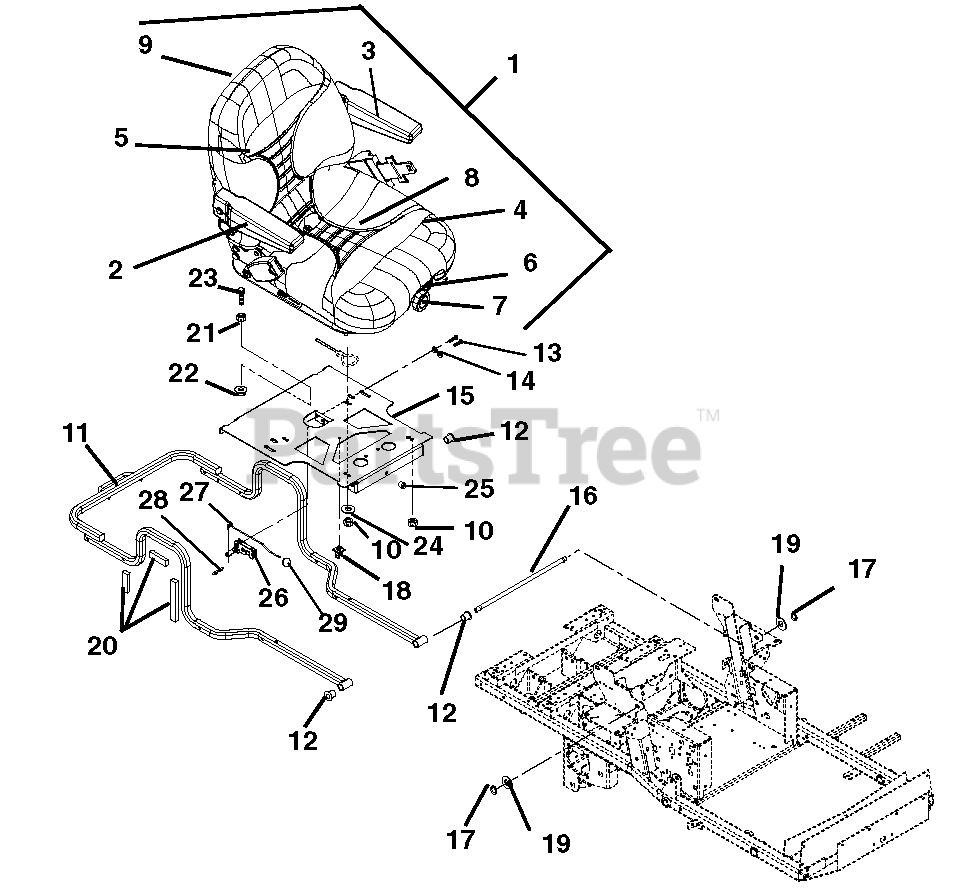

Seat Parts Diagram

  • Title

1

Gravely 04052900

Seat, Suspension -with Belt, Light Gray
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

2

Gravely 59210400

Kit, Right Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

3

Gravely 59210500

Kit, Left Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

4

Gravely 59208900

Kit, Seat Cusion, Light Grey

$258.99

$

In Stock, only 3 left!

0

5

Gravely 59208800

Kit, Back Cushion, Light Grey

$423.99

$

Usually ships in 4-12 days

0

6

Gravely 59207900

Kit, Seat Slides

$

$

Not available

7

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

8

Gravely 59207800

Kit, Seat Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

9

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

10

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 04046553

Weldment, Hood Frame

$

$

Not available

12

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

13

Gravely 05947700

Bolt, Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

14

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 04044851

Plate, Seat 200 XDZ with Latch

$101.99

$

Usually ships in 4-12 days

0

16

Gravely 09245400

Rod, Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

17

Gravely 05717100

Ring, Retaining-External .500 x .050

$2.49

$

In Stock, Qty 8

0

18

Gravely 00367900

Clip, Routing

$1.49

$

In Stock, only 1 left!

0

19

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00932300

Tape, VHB

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05962000

Bolt, Hex .50-13 x 1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 05500020

Bushing, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

26

Gravely 04054600

Latch, Rotary-Push To Close

$22.99

$

Usually ships in 4-12 days

0

27

Gravely 04058100

Rod, Seat Latch Release

$

$

Not available

28

Gravely 06707300

Pin, Center .12 x .75 Extended Prong Square Cut

$0.99

$

In Stock, Qty 5

0

29

Gravely 07520500

Knob

$21.99

$

Usually ships in 4-12 days

0
