992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 003000 - 003199) Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

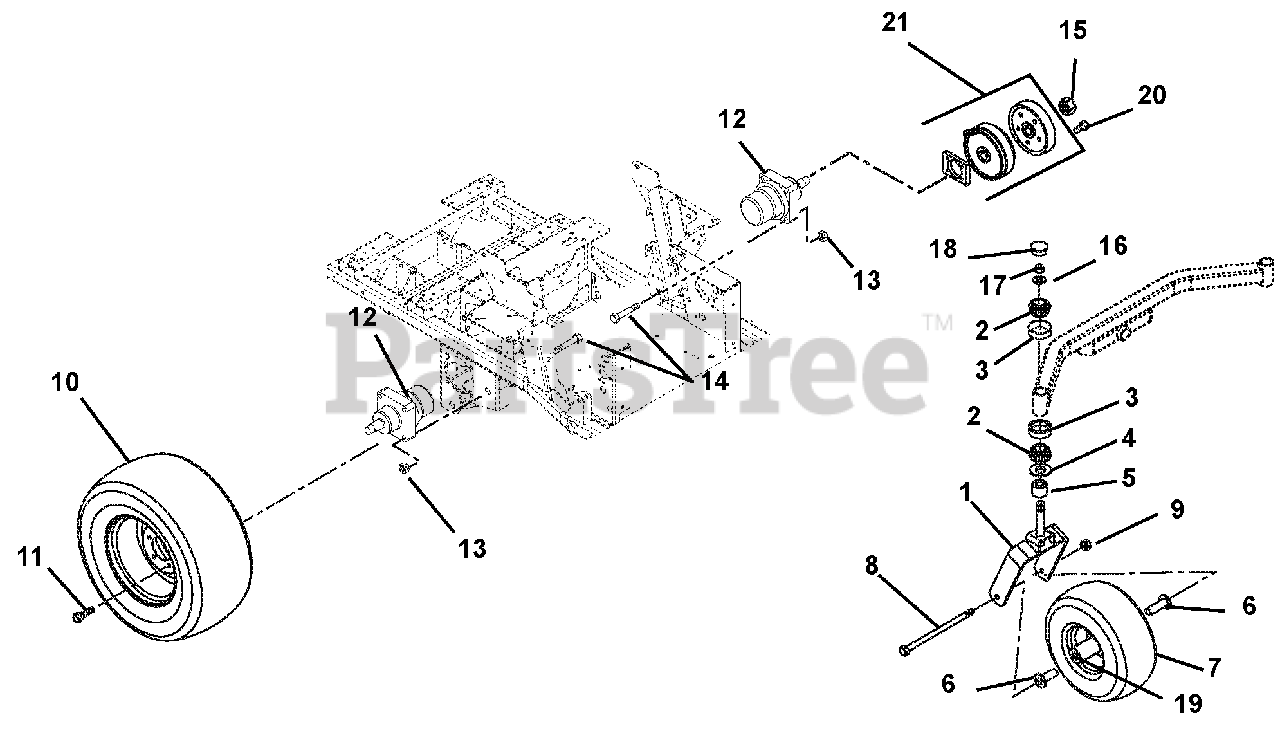

Wheel Motors, Tires, Brakes And Front Forks Parts Diagram

  • Title
1

Gravely 00489853

Fork, Front
(Superseded to 59208500)

$180.99

$

In Stock, only 2 left!

0

2

Gravely 69000300

Bearing, Cone w/ Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 4 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 7

0

6

Gravely 00675300

Spacer, Wheel

$7.99

$

In Stock, Qty 20+

0

7

Gravely 07100205

Wheel/Tire Assembly 15 x 6-6
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

Gravely 07147100

Tire, 15 x 6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

8

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 07157500

Tire/Wheel Assembly 24 x 12-12
(Superseded to 59210100)

$319.99

$

Usually ships in 4-12 days

0

Gravely 07158100

Tire, Turfmaster 24 x 12-12
(Superseded to 07101040)

$273.99

$

Usually ships in 4-12 days

0

11

Gravely 07067700

Bolt, Lug .50-20 x 1.38 Grade 8, 60 Degree
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

12

Gravely 09263100

Hydraulic Wheel Motor (Includes item 15)

Note: (Includes item 15)

$943.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07067200

Bolt, Wheel Motor .50-13 x 2.75

$17.99

$

In Stock, only 3 left!

0

15

Gravely 06541900

Nut , Lock Jam Patch (Included with 12)

Note: (Included with 12)

$30.99

$

In Stock, only 1 left!

0

16

Gravely 06439000

Washer, Flat Steel 812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06536900

Nut, Jam Center-Lock .75-16

$5.99

$

In Stock, only 3 left!

0

18

Gravely 20655400

Cap, Dust

$10.99

$

In Stock, Qty 20+

0

19

Gravely 05435700

Bearing, 25mm I.D. x 52mm OD x 15mm

$22.99

$

In Stock, Qty 19

0

20

Gravely 05952400

Bolt, Hex .31-18 x 1.5 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

21

Gravely 58904300

Kit, Parking Brake Service

$555.99

$

Usually ships in 4-12 days

0
