992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 003000 - 003199) Radiator And Radiator Brackets Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

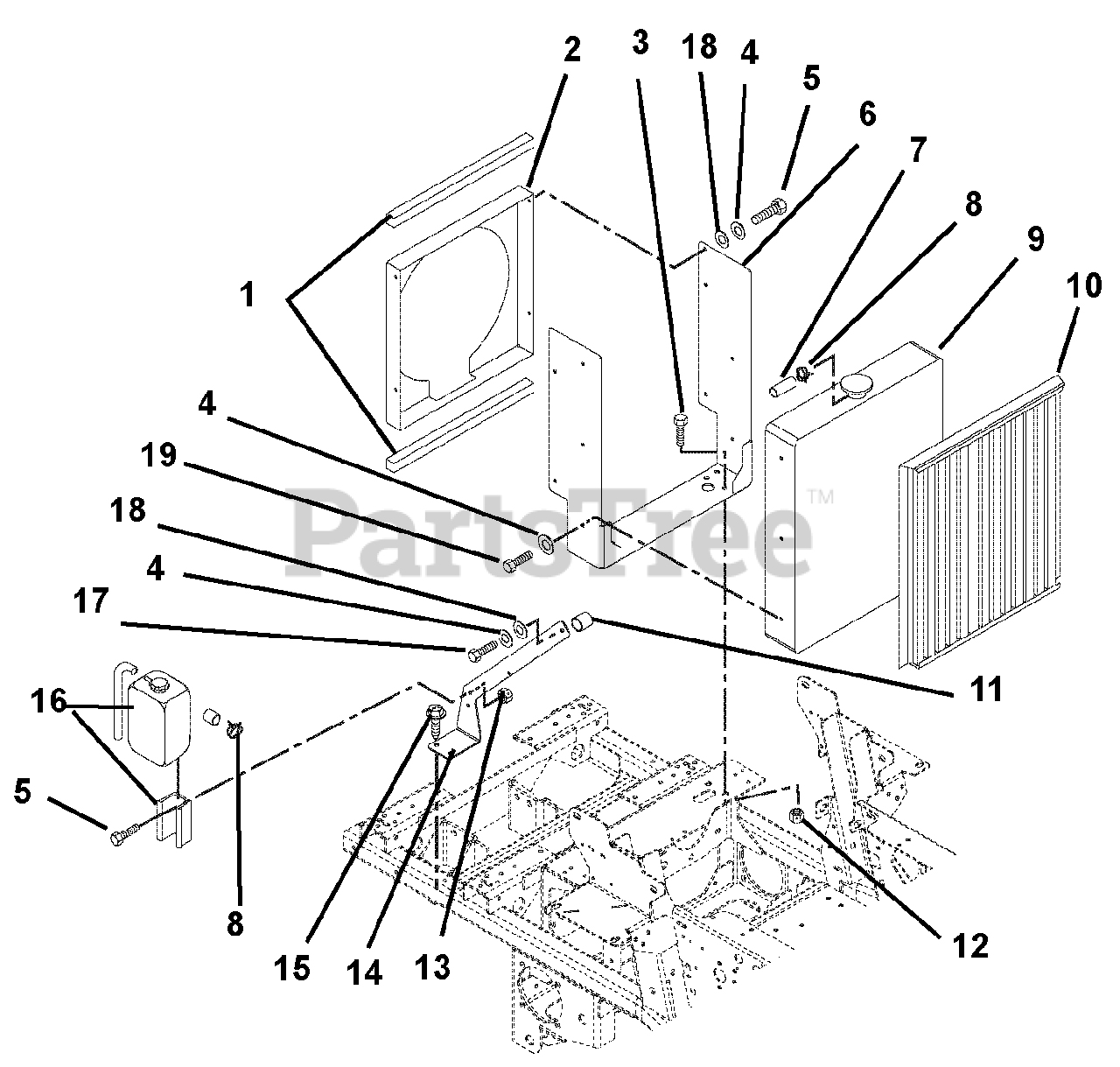

Radiator And Radiator Brackets Parts Diagram

  • Title
1

Gravely 00929000

Seal, Trim-LOK Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

2

Gravely 09266851

Weldment, Radiator Shroud

$69.99

$

Usually ships in 4-12 days

0

3

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09265851

Bracket, Radiator Mounting

$

$

Not available

7

Gravely 00924300

Gas Line, Bulk .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 10

0

9

NA

Radiator (Comes with the engine)

Note: (Comes with the engine)

$

$

Not available

10

Gravely 09265400

Screen, Radiator

$142.99

$

Usually ships in 4-12 days

0

11

Gravely 09235400

Spacer .328 x .76 x 1.01

$

$

Not available

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09278651

Bracket, Overflow Mounting

$

$

Not available

15

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

16

NA

Reservior Overflow (Comes with the engine)

Note: (Comes with the engine)

$

$

Not available

17

Gravely 05979200

Bolt, Hex M6-1.00 x 45

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05975900

Bolt, Hex M6-1 x 16
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0
