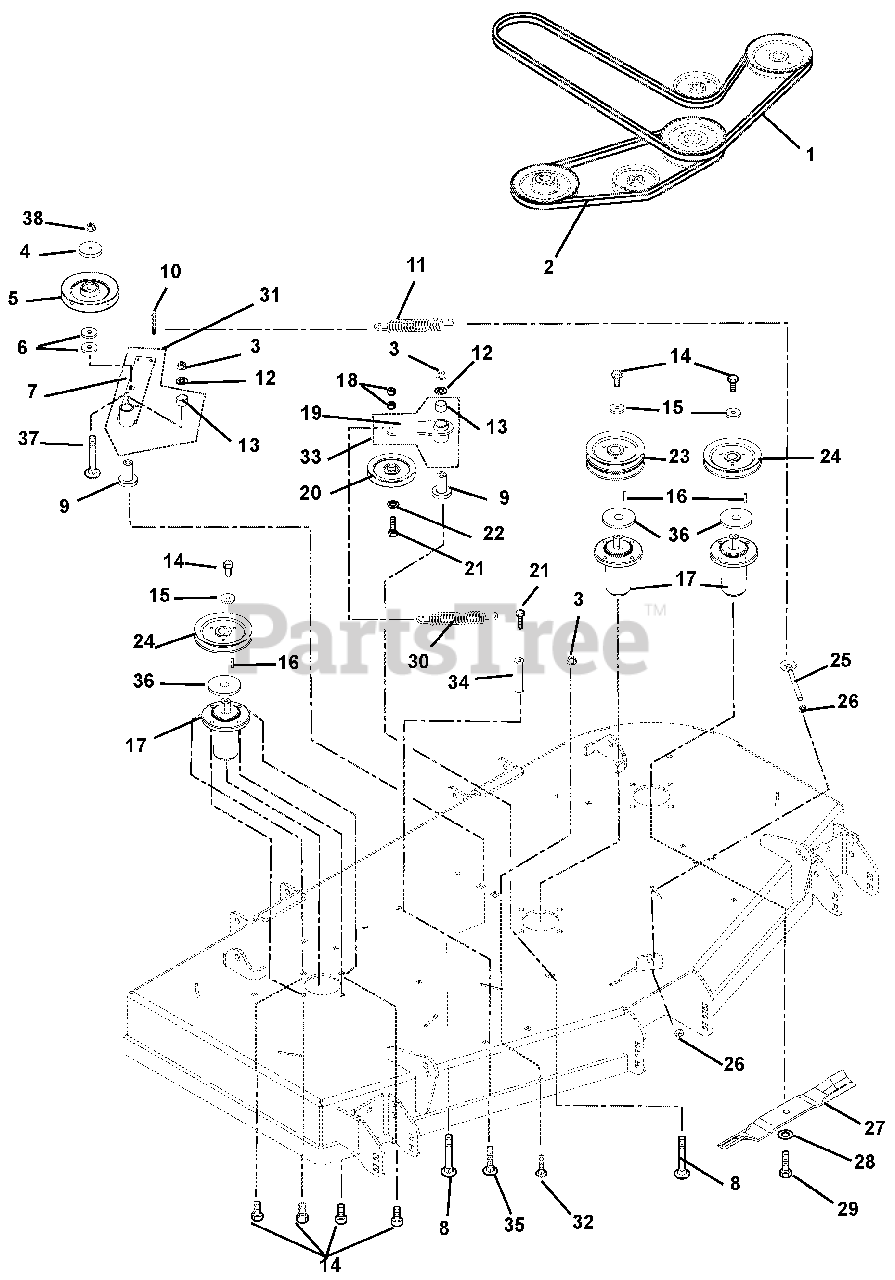

992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 003000 - 003199) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200027

Belt, 175" Long, PTO Drive Hex (992322)

Note: (992322)

$159.99

$

Usually ships in 4-12 days

0

Gravely 07200030

Belt, 184.4" Long, PTO Drive Hex (992316, 317)

Note: (992316, 317)

$150.99

$

In Stock, only 1 left!

0

Gravely 07200033

Belt, 199" Long, PTO Drive Hex (992321)

Note: (992321)

$193.99

$

In Stock, only 1 left!

0

2

Gravely 07200036

V-Belt, 56" Long Cog B-Section (992322)

Note: (992322)

$62.99

$

In Stock, Qty 15

0

Gravely 07200038

V-Belt, 63" Long Cog B-Section (992316, 317)

Note: (992316, 317)

$67.99

$

In Stock, Qty 20+

0

Gravely 07200039

V-Belt, 76" Long Cog B-Section (992321)

Note: (992321)

$75.99

$

In Stock, Qty 10

0

3

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

5

Gravely 07328000

Pulley, V 6.0 x .500 ID DBL. Bearing (SN 000101 – 002999)

Note: (SN 000101 – 002999)

$108.99

$

In Stock, only 1 left!

0

Gravely 07300429

Pulley, V 6.0 x .500 ID SNGL. Bearing (SN 003000 & up)
(Superseded to 07300527)

Note: (SN 003000 & up)

$53.99

$

In Stock, Qty 20+

0

6

Gravely 06445000

Washer, Flat Stee,l .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

7

Gravely 00368251

Idler, Pivot Arm
(Superseded to 03379851)

$91.99

$

Usually ships in 4-12 days

0

8

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200340)

$5.99

$

In Stock, only 3 left!

0

9

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

10

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

11

Gravely 08300030

Spring, Extension (Deck Idler)
(Superseded to 08300505)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 06430200

Washer, Flat Steel .531x 1.250 x.100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06611200

Key, Square .25 x .25 x 1 RC 40-50

$2.99

$

In Stock, Qty 16

0

17

Gravely 69219700

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00345600

Idler, Pivot Arm

$51.99

$

In Stock, only 4 left!

0

20

Gravely 07300103

Assembly, V-Idler 5.00 O.D.
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

21

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07300020

Sheave, Double 1" ID x 6.00" OD (992322)
(Superseded to 07332367)

Note: (992322)

$77.99

$

In Stock, Qty 16

0

Gravely 07300021

Sheave, Double 1" ID x 6.75" OD (992316, 317)
(Superseded to 59211500)

Note: (992316, 317)

$91.99

$

In Stock, Qty 20+

0

Gravely 07300023

Sheave, Double 1" ID x 8.25" OD (992321)
(Superseded to 59217300)

Note: (992321)

$194.99

$

Usually ships in 4-12 days

0

24

Gravely 07300019

Sheave, Single 1" ID x 6.00" OD (992322)
(Superseded to 59211700)

Note: (992322)

$82.99

$

In Stock, only 1 left!

0

Gravely 07300022

Sheave, Single 1" ID x 6.75" OD (992316, 317)
(Superseded to 59211600)

Note: (992316, 317)

$82.99

$

In Stock, Qty 8

0

Gravely 07300024

Sheave, Single 1"ID x 8.25" OD (992321)
(Superseded to 59217400)

Note: (992321)

$118.99

$

In Stock, only 1 left!

0

25

Gravely 07000030

Bolt, .38-16 x 4.50 .62 Diameter Eye
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 00273100

Blade, 18.00" Mower, Mulch (992322)

Note: (992322)

$26.99

$

In Stock, Qty 20+

0

Gravely 08866900

Blade, Mower, Mulch (20.50") (992316, 317)

Note: (20.50") (992316, 317)

$37.99

$

In Stock, Qty 20+

0

Gravely 09290600

Blade, Mower, Mulch (24.50") (992321)

Note: (24.50") (992321)

$39.99

$

In Stock, only 3 left!

0

28

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, Qty 6

0

29

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Gravely 00449000

Assembly, PTO Idler Pivot Arm (Includes item # 7 and item # 13)

Note: (Includes item # 7 and item # 13)

$85.99

$

Usually ships in 4-12 days

0

32

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

33

Gravely 00349100

Assembly, Idler Pivot Arm (Includes item # 13 and item # 19 )

Note: (Includes item # 13 and item # 19 )

$63.99

$

In Stock, only 2 left!

0

34

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

35

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

37

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 19

0

38

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0
