992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 002500 - 002999) Hydraulic Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

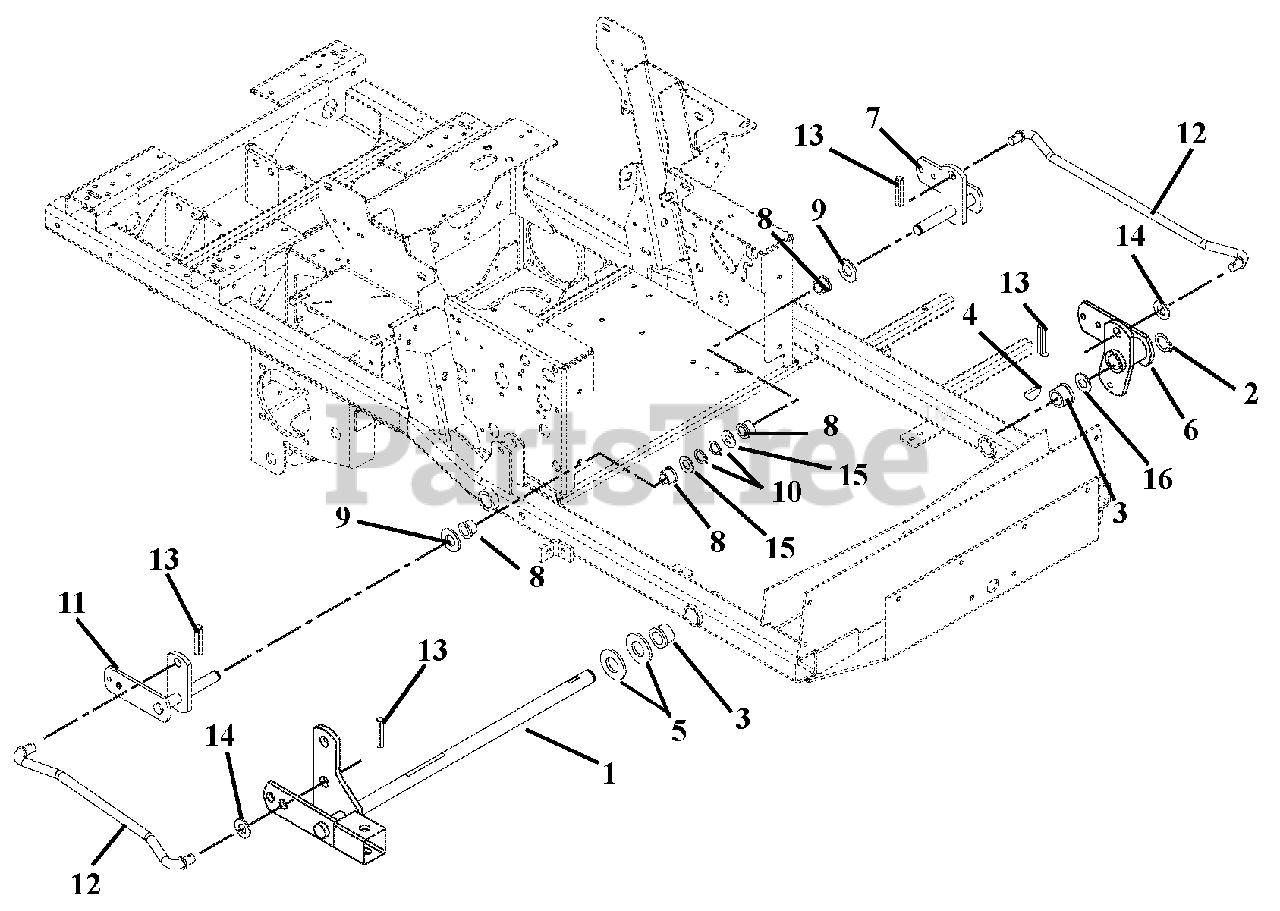

Hydraulic Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

Lift, Mower

$262.99

$

In Stock, only 1 left!

0

2

Gravely 05707300

Ring, Retaining External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

3

Gravely 05520100

Bushing, Flange 1.00 x 1.12 x .75 x 1.375

$11.99

$

In Stock, Qty 18

0

4

Gravely 06608900

Key, Woodruff .25 x 1.00

$3.99

$

In Stock, Qty 18

0

5

Gravely 06428500

Washer, Flat Steel 1.062 x 2.00 x .134

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 00441000

Weldment, Lift Arm-Front

$99.99

$

Usually ships in 4-12 days

0

7

Gravely 00499200

Weldment, Rear Lift Arm-Left Hand
(Superseded to 04072100)

$99.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

Bushing, Flange Nylon .762 x 1.0 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

Washer, Hardened Steel .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05714600

Ring-Retaining-External .689 x .077

$2.49

$

In Stock, Qty 5

0

11

Gravely 00499100

Weldment, Rear Lift Arm- Right Hand
(Superseded to 04072200)

$129.99

$

Usually ships in 4-12 days

0

12

Gravely 00185800

Rod, Lift Assist 19.35"
(Superseded to 04063100)

$68.99

$

In Stock, only 2 left!

0

13

Gravely 05800001

Pin, Roll .25 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

Washer, Flat Steel .630 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06444200

Washer, Flat Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

16

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 3 left!

0
