992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001501 - 002000) Transmission Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

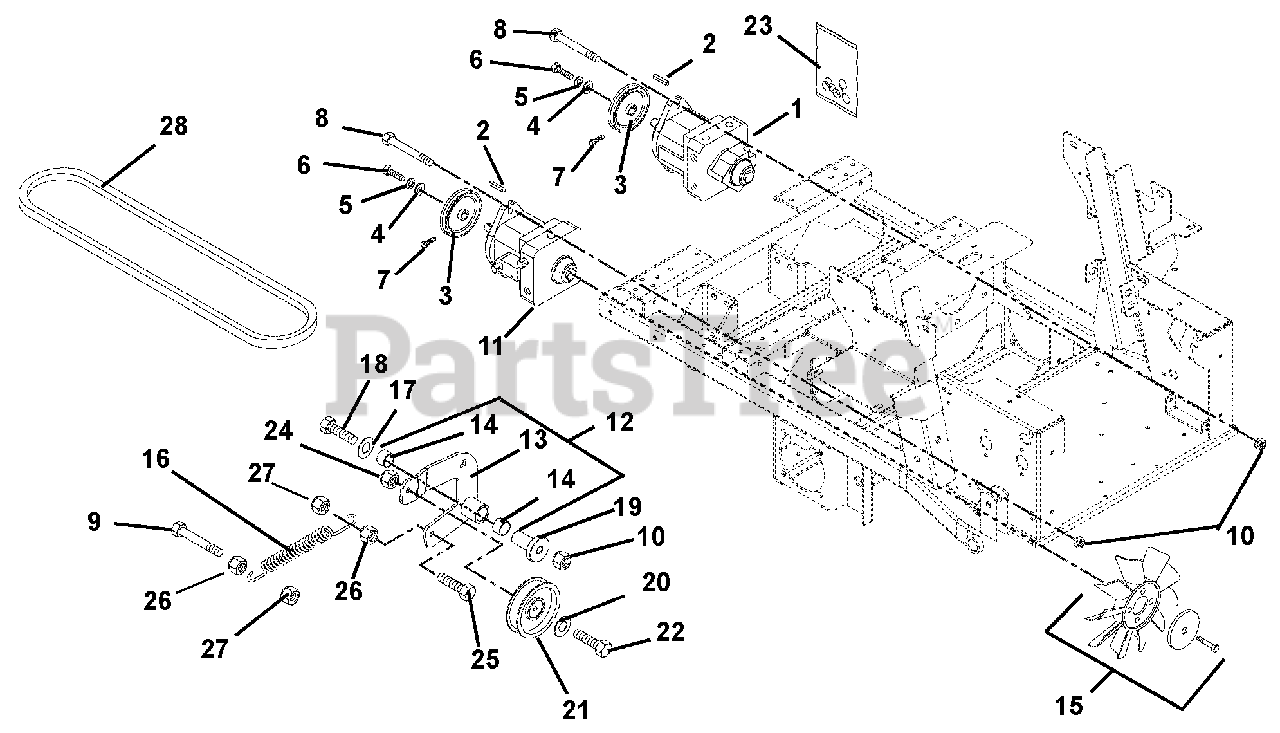

Transmission Parts Diagram

  • Title

1

Gravely 09295100

Pump, Hydraulic (RTN) with Auxiliary
(Superseded to 00583100)

Note: (RTN) with Auxiliary

$1202.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

Key, Square 5 x 5 x 30mm Plain

$2.49

$

In Stock, Qty 8

0

3

Gravely 07327900

Sheave, Poly-V .671 x 4.125
(Superseded to 59210600)

$

$

Not available

4

Gravely 06426600

Washer, Flat Steel .25 x 1.0 x .048
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05969800

Bolt, Hex M6 x 1.0 x 12

$1.99

$

In Stock, Qty 14

0

7

Gravely 05980100

Screw, Socket Head .25-20 x .50
(Superseded to 05900127)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09295200

Pump, Hydraulic (RTN)
(Superseded to 00583300)

Note: (RTN)

$1034.99

$

In Stock, only 1 left!

0

12

Gravely 09264300

Assembly, Idler Arm Guard Drive (Includes 13 & 14)

Note: (Includes 13 & 14)

$168.99

$

Usually ships in 4-12 days

0

13

Gravely 09264251

Weldment, Idler Arm Ground Drive

$

$

Not available

14

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 10

0

15

Gravely 09420500

Fan, Hydro Pump Cooling

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 08321200

Spring, Tension .120 x .845 x 6.500

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 06442000

Washer, Flat Steel .39 x.75 x.125
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

20

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07327500

Idler, Flat 4.00 x 1.06

$45.99

$

Usually ships in 4-12 days

0

22

Gravely 05935000

Bolt, Hex .38-16 x 2.25 Grade 5

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 59203700

Kit, Pump Seal (One kit required for each pump)

Note: (One kit required for each pump)

$90.99

$

Usually ships in 4-12 days

0

24

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

26

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

27

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07242800

Belt, Poly-V 49.50

$39.99

$

In Stock, only 1 left!

0
