992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001501 - 002000) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

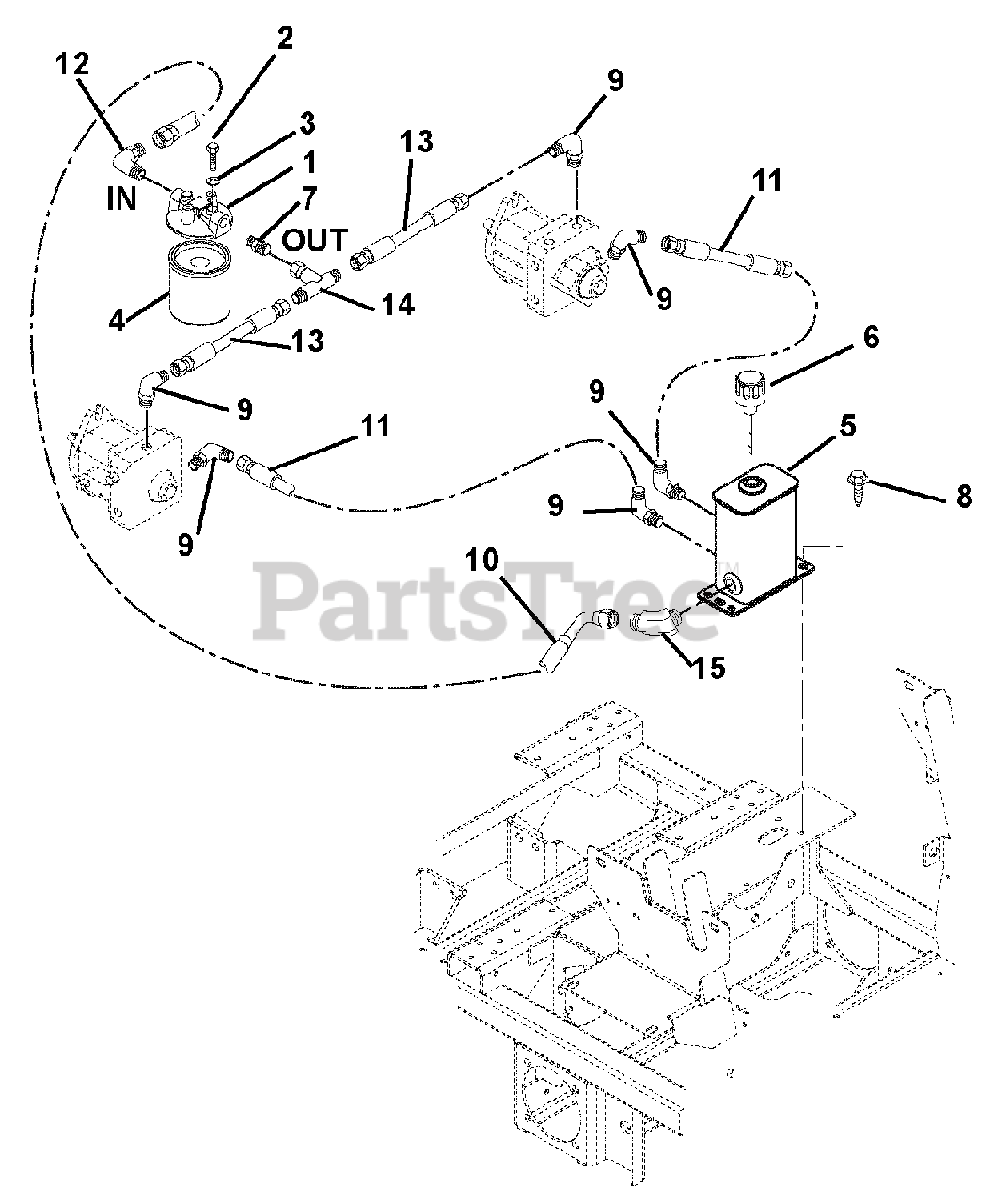

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09419900

Filter Housing

$

$

Not available

2

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09414200

Filter Element
(Superseded to 03931900)

$26.99

$

In Stock, Qty 20+

0

5

Gravely 00161051

Body, Hydraulic Tank

$

$

Not available

6

Gravely 00346100

Breather, Dipstick
(Superseded to 09273900)

$45.99

$

In Stock, only 2 left!

0

7

Gravely 07069800

Fitting, Hydraulic, Straight Steel

$

$

Not available

8

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 00364600

Hose-Hydraulic Valve to Tank

$100.99

$

Usually ships in 4-12 days

0

11

Gravely 00364500

Hose, Hydraulic, 10-inch

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 07069700

Fitting, Hydraulic, 90 Degree Elbow

$23.99

$

Usually ships in 4-12 days

0

13

Gravely 00364400

Hose, Hydraulic .50, 5-Inch

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07069400

Fitting, Hydraulic Tee

$

$

Not available

15

Gravely 07066200

Fitting, Hydraulic .45 Degree Elbow

$59.99

$

Usually ships in 4-12 days

0
