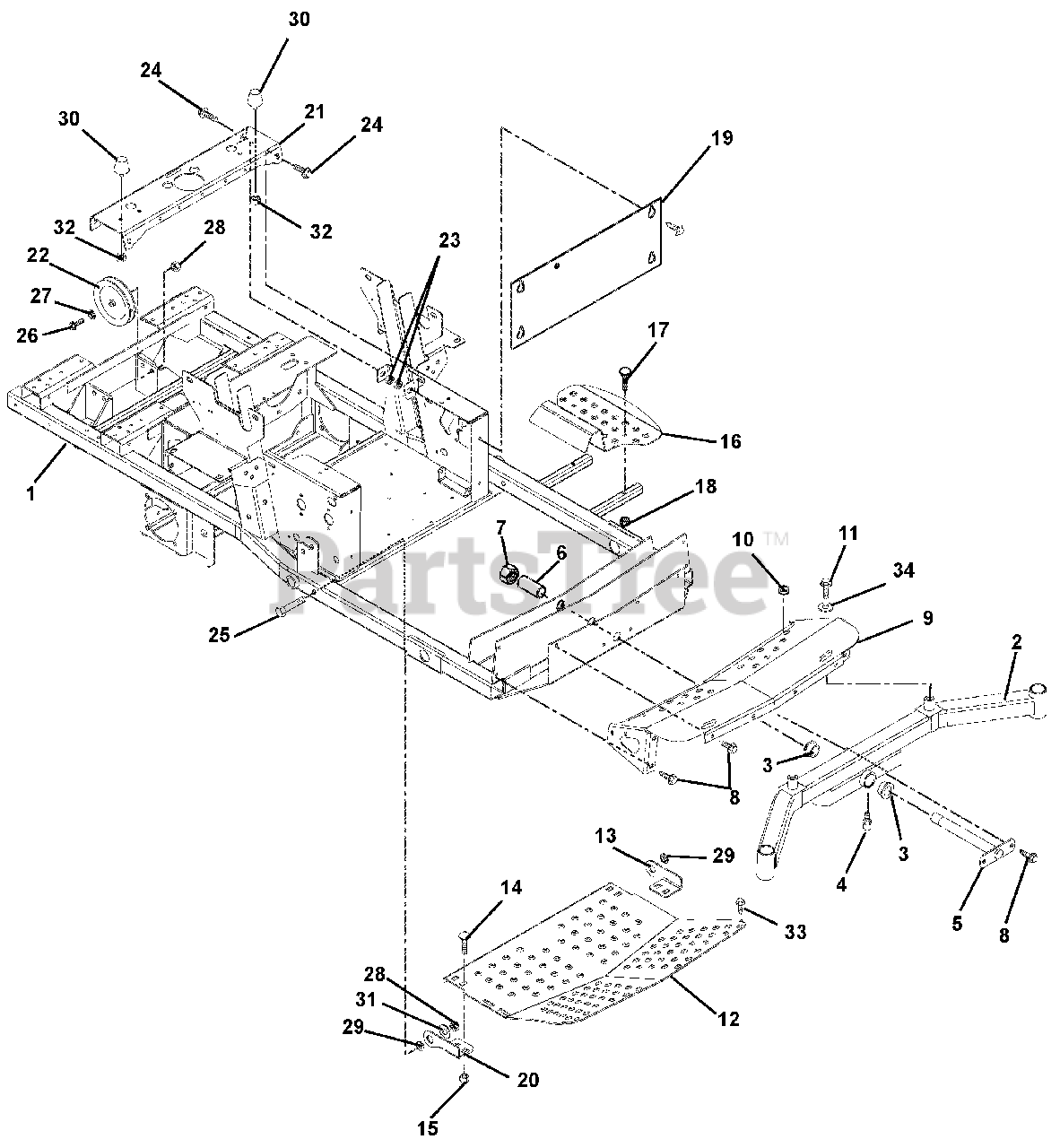

992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001501 - 002000) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

Frame Parts Diagram

  • Title

1

Gravely 09294951

Weldment, Frame

$

$

Not available

2

Gravely 09263753

Weldment, Front Axle

$775.99

$

Usually ships in 4-12 days

0

3

Gravely 05520100

Bushing, Flange 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 18

0

4

Gravely 07012600

Fitting, Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

5

Gravely 09232000

Pin, Axle

$68.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

Spacer

$20.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

Nut, Locking Nylon 1.0-14

$9.49

$

In Stock, only 2 left!

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09278053

Weldment, Axle Cover

$

$

Not available

10

Gravely 07516000

Button, Bumper

$0.99

$

In Stock, Qty 14

0

11

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.49

$

In Stock, only 4 left!

0

12

Gravely 09233353

Panel, Inspection

$112.99

$

Usually ships in 4-12 days

0

13

Gravely 09267151

Hinge, Footboard Left Hand

$

$

Not available

14

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09231251

Step, Ingress

$

$

Not available

17

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

18

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09234053

Plate, Kick
(Superseded to 00483153)

$

$

Not available

20

Gravely 09267251

Hinge, Footboard Right Hand

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 09275051

Channel, Cross

$

$

Not available

22

Gravely 07328000

Pulley, Idler

$108.99

$

In Stock, only 1 left!

0

23

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

24

Gravely 07049900

Bolt, Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

26

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 6

0

27

Gravely 06436600

Washer, Flat Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05532100

Bushing, Flange .515 x .75 x .275 x 1.12

$

$

Not available

30

Gravely 07533000

Bumper

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

32

Gravely 06534600

Nut, Locking Flange .312-24

$

$

Not available

33

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 06441800

Washer, Flat Steel .518 x 2.00 x .105
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0
