992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001501 - 002000) Controls Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

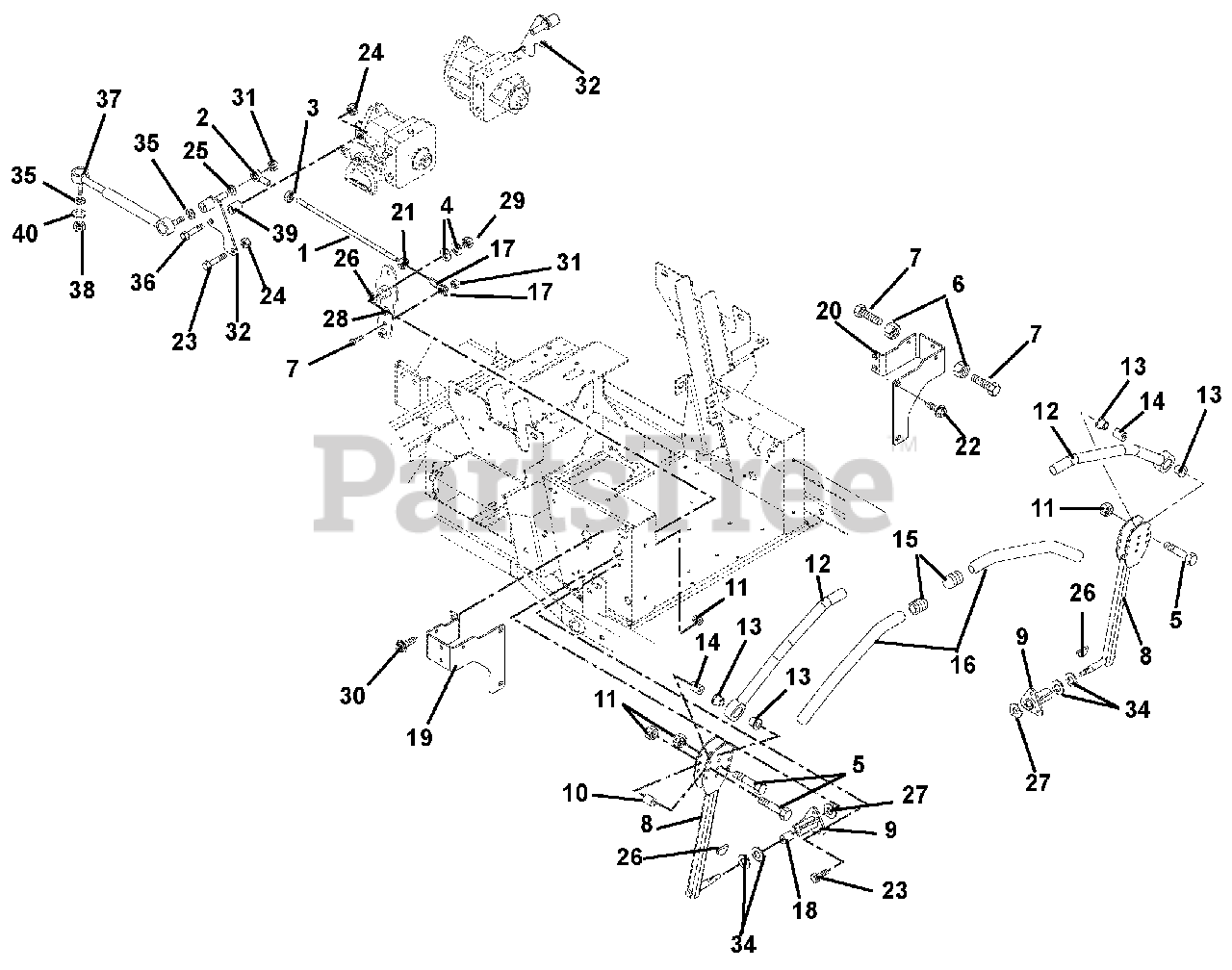

Controls Parts Diagram

  • Title

1

Gravely 03360901

Tie Rod Assembly

$

$

Not available

2

Gravely 03563100

Rod End, .38 Right Hand

$15.99

$

In Stock, only 2 left!

0

3

Gravely 06534700

Nut, Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 06436200

Washer, Flat Steel .408 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05974000

Bolt, Hex .375-16 x 1.75
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 09288651

Weldment, Control Arm

$187.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

Bushing, Flange

$34.99

$

In Stock, only 1 left!

0

10

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

Handle Weldment-Left Hand

$90.99

$

In Stock, only 1 left!

0

Gravely 09235600

Handle Weldment-Right Hand

$93.99

$

In Stock, only 1 left!

0

13

Gravely 05525200

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05501517)

$

$

Not available

14

Gravely 09235400

Spacer

$

$

Not available

15

Gravely 09211400

Caplug, Handlebar

$2.99

$

In Stock, only 4 left!

0

16

Gravely 09246800

Grip, Handlebar

$12.99

$

Usually ships in 4-12 days

0

17

Gravely 03668700

Rod End, .38 Left Hand

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 05436800

Bushing .625 x .75 x .50

$9.99

$

In Stock, only 2 left!

0

19

Gravely 09289151

Bracket, Stop Right Hand

$72.99

$

Usually ships in 4-12 days

0

20

Gravely 09289251

Bracket, Stop Left Hand

$42.99

$

Usually ships in 4-12 days

0

21

Gravely 06537400

Nut, Jam .375-24 Left Hand
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

27

Gravely 03704900

Washer, Wave

$2.49

$

In Stock, only 4 left!

0

28

Gravely 00176400

Weldment, Pivot Arm

$

$

Not available

29

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06537200

Nut, Locking Jam Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 00180200

Weldment, Return to Neutral/Damper/Rod End

$90.99

$

Usually ships in 4-12 days

0

33

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06436100

Washer, Flat Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

37

Gravely 01589300

Damper, Control

$113.99

$

In Stock, only 1 left!

0

38

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

39

Gravely 03101900

Spacer .318 x .43 x .375

$

$

Not available

40

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
