992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001000 - 001500) Fuel Tanks And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

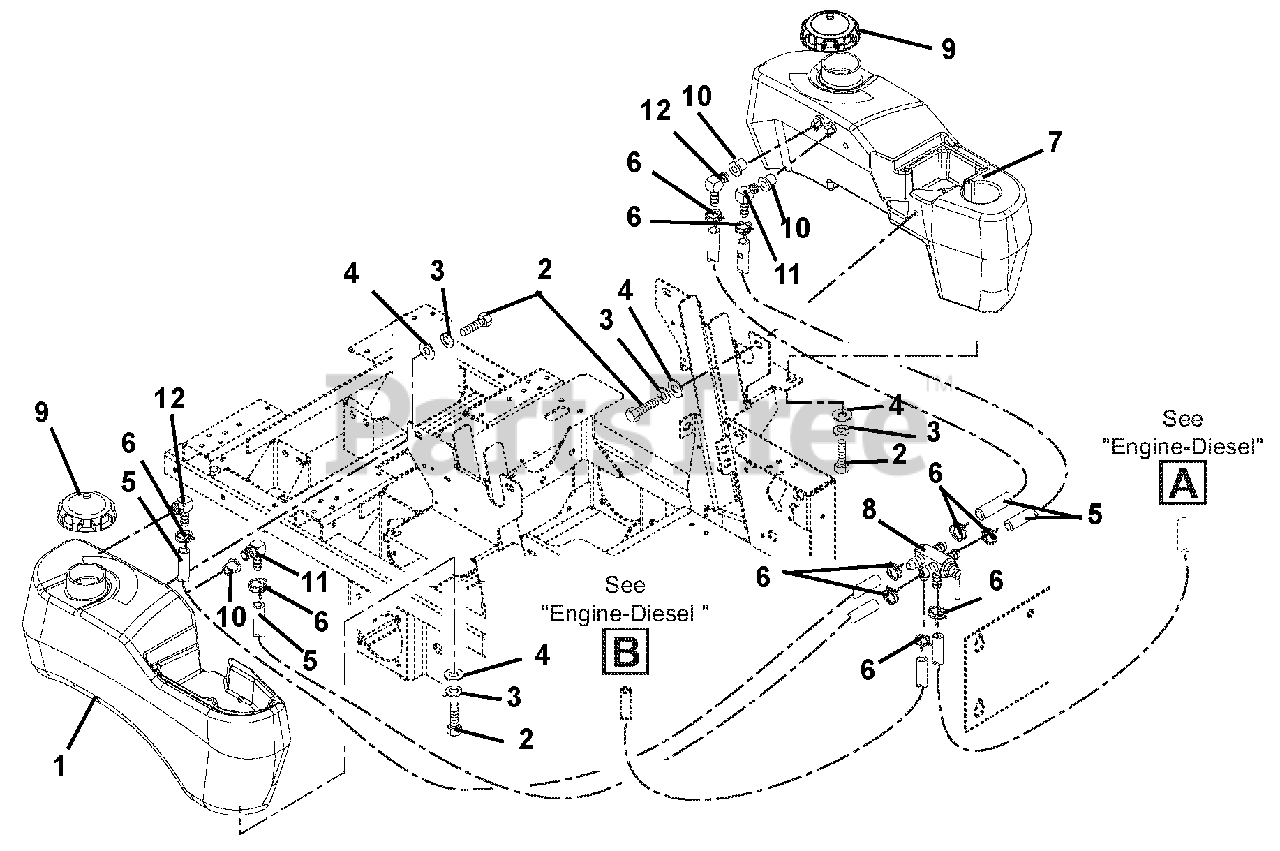

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09290900

Tank, Fuel-Right Hand
(Superseded to 04004800)

$219.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00922600

Hose, .31 ID

$

$

Not available

6

Gravely 06947900

Clamp, Hose Wire .52/.55

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 00199100

Tank, Left Hand Fuel (EYE-Q) 200 Series-EFI
(Superseded to 04007000)

Note: (EYE-Q) 200 Series-EFI

$249.99

$

Usually ships in 4-12 days

0

8

Gravely 09289600

Valve, Fuel

$

$

Not available

9

Gravely 09269100

Cap, Fuel

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

11

Gravely 21539100

Fitting, Tank

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 21537200

Fitting, Tank

$20.99

$

Usually ships in 4-12 days

0
