992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 001000 - 001500) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

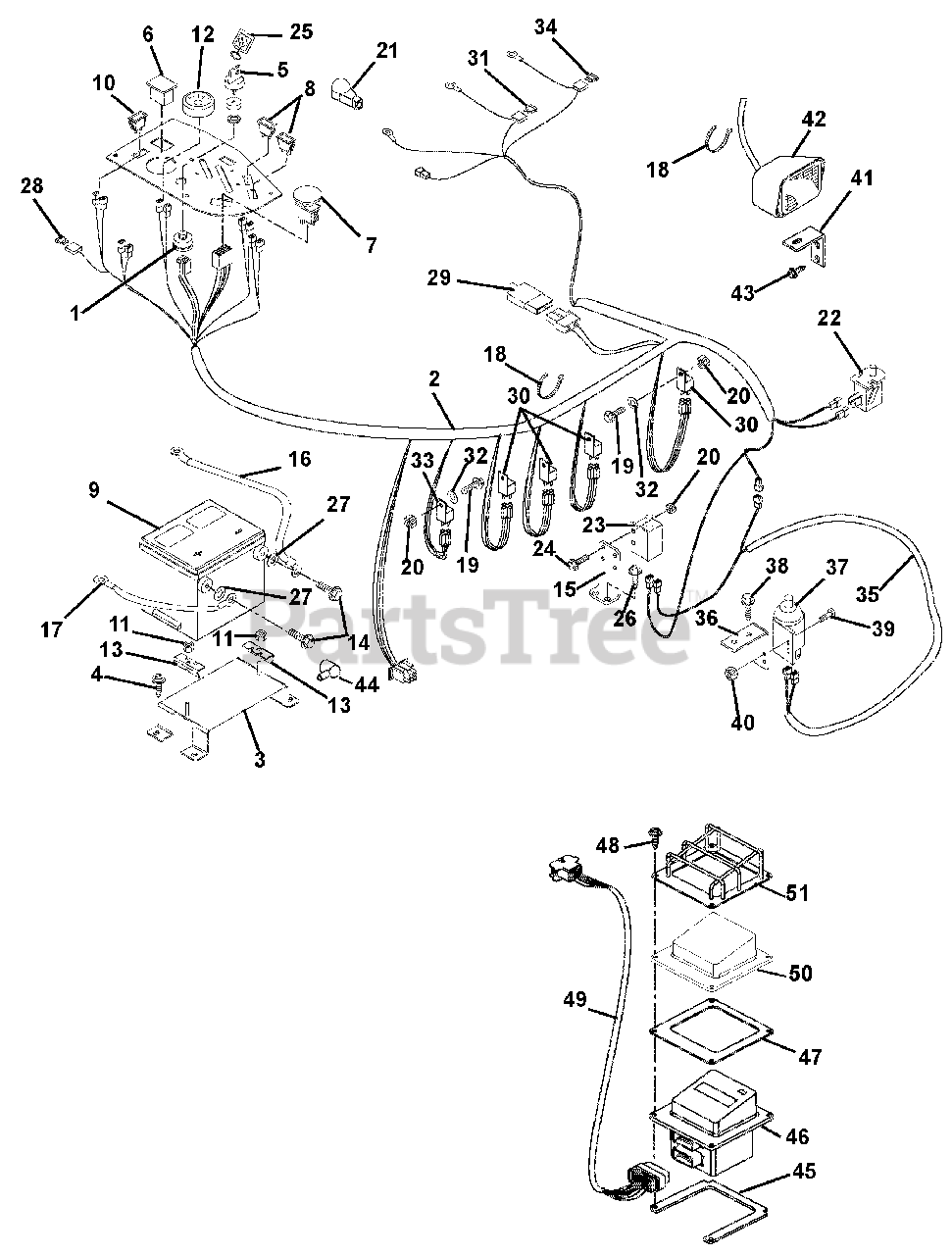

Electrical System Parts Diagram

  • Title

1

Gravely 00168400

Switch, Ignition (Diesel)

Note: (Diesel)

$56.99

$

In Stock, only 1 left!

0

2

Gravely 00360500

Harness, Wiring (Diesel)

Note: (Diesel)

$

$

Not available

3

Gravely 09266551

Weldment, Battery Support

$

$

Not available

4

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09287000

Key-with Cap

$14.99

$

In Stock, Qty 20+

0

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 00539300

Plug

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

Switch-Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

Light-Indicator Kit
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 00525500

Battery with Tube

$

$

Not available

10

Gravely 08973300

Switch, Light

$6.99

$

In Stock, only 1 left!

0

11

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09080200

Gauge, Temperature

$98.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

Bracket, Battery Hold-Down

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

Bolt-Hex .25-20 x .75 Grade 5

$

$

Not available

15

Gravely 09275851

Mount, Safety Switch

$21.99

$

In Stock, only 1 left!

0

16

Gravely 09412100

Positive Cable

$

$

Not available

17

Gravely 09278100

Cable, Negative Battery

$32.99

$

Usually ships in 4-12 days

0

18

Gravely 07517300

Cable Tie

$

$

Not available

19

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07533200

Eyelet Terminal Boot

$3.49

$

In Stock, only 3 left!

0

22

Gravely 02754100

Switch, Snap Mounting (N.O.) (Included with Seat)

Note: (N.O.) (Included with Seat)

$9.49

$

In Stock, Qty 20+

0

23

Gravely 03657100

Switch-Single Pole

$9.49

$

In Stock, only 2 left!

0

24

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 03490000

Key Chain

$

$

Not available

26

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435700

Washer-Flat-Steel .406 x 1.00 x ..083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 00524700

Fuse, 15 Amp

$

$

Not available

29

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

30

Gravely 03042800

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

31

Gravely 00524600

Fuse, 30 Amp (Included with Harness)

Note: (Included with Harness)

$

$

Not available

32

Gravely 06442300

Washer-Flat-Steel .25 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0

33

Pre-Heat Timer (Included with Engine)

Pre-Heat Timer (Included with Engine)

Note: (Included with Engine)

$

$

Not available

34

Gravely 21540600

Fuse, 50 AMP (Maxi Fuse) (Included with Harness)

Note: (Maxi Fuse) (Included with Harness)

$

$

Not available

35

Gravely 09281000

Harness, Wire Adapter CE

$

$

Not available

36

Gravely 09251253

Mount- Switch

$38.99

$

Usually ships in 4-12 days

0

37

Gravely 09251900

Switch-Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

38

Gravely 07411500

Screw-Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

40

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 09287551

Bracket, Headlight Mounting

$17.99

$

Usually ships in 4-12 days

0

42

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

43

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

45

Gravely 00252251

Spacer, Enclosure Mounting (Bottom)

Note: (Bottom)

$25.99

$

Usually ships in 4-12 days

0

46

Gravely 00251600

Assembly, Eye-Q

$

$

Not available

47

Gravely 05600006

Gasket, Eye-Q

$

$

Not available

48

Gravely 06100002

Screw, Machine 10-24 x 1.0 Slotted Pan Black

$3.99

$

Usually ships in 4-12 days

0

49

Gravely 00288900

Harness Jumper (Eye-Q)
(Superseded to 03286100)

Note: (Eye-Q)

$

$

Not available

50

Gravely 00353900

Guard, Element

$

$

Not available

51

Gravely 00270300

Guard, Vinyl Eye-Q
(Superseded to 00266251)

$

$

Not available
