992317 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge (SN: 000101 - 000999) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu, Rear Discharge

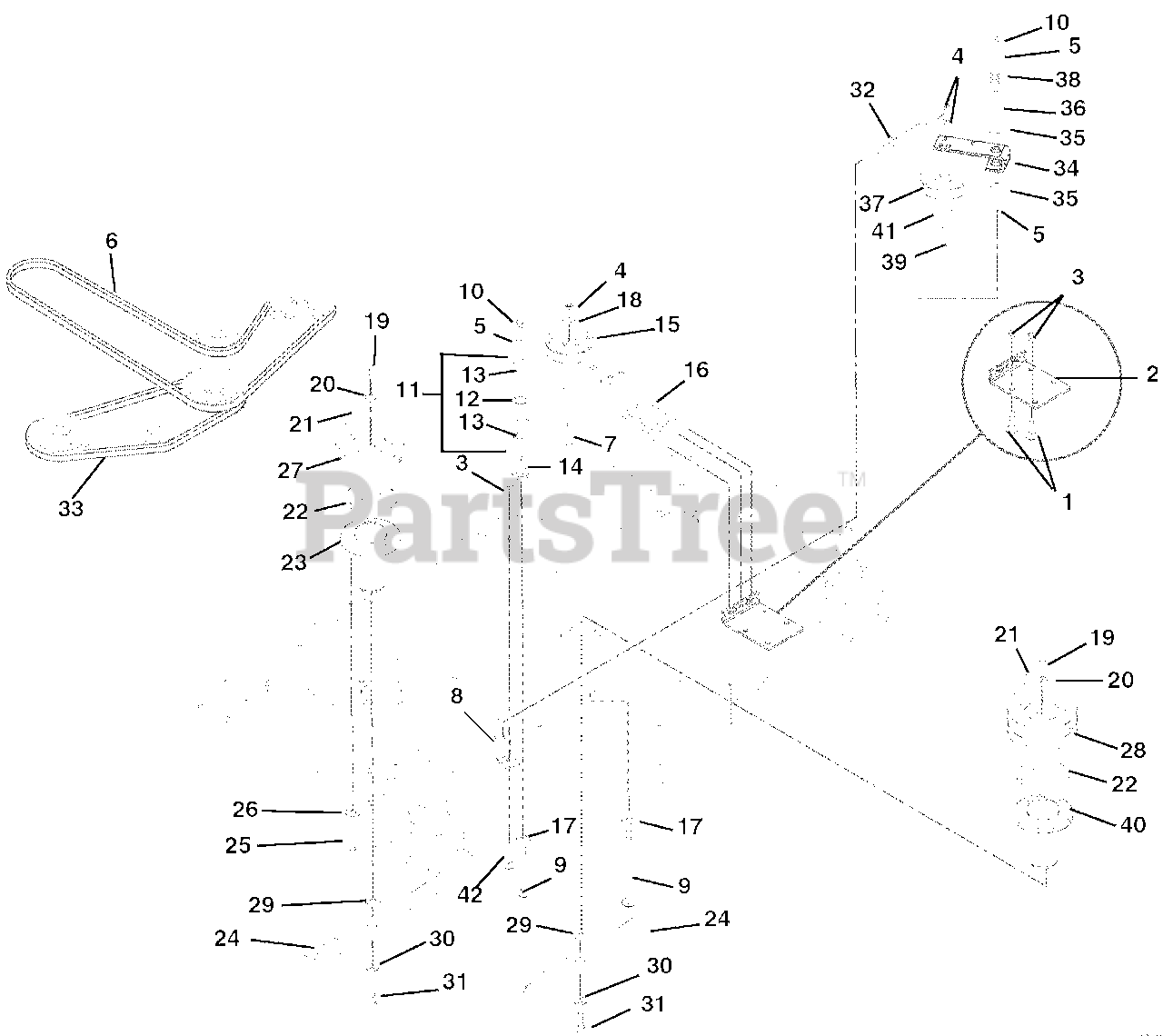

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

2

Gravely 00198300

Bracket, Spring

$

$

Not available

3

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

Washer, Flat Steel .531 x 1.25 x .10
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

6

Gravely 07240400

V-Belt, B-Section 54.06 x .625

$153.99

$

In Stock, only 1 left!

0

7

Gravely 06225400

Bolt-Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 09245353

Anchor, Spring

$

$

Not available

9

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00199000

Assembly-Deck Idler Pivot Arm (Contains Items 12 & 13)

Note: (Contains Items 12 & 13)

$206.99

$

Usually ships in 4-12 days

0

12

Gravely 00198451

Weldment, Deck Idler Pivot Arm

$206.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 10

0

14

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

15

Gravely 07328300

Idler, Flat 4.00 x .38 (2.32W)

Note: (2.32W)

$180.99

$

Usually ships in 4-12 days

0

16

Gravely 08300002

Spring, Extension
(Superseded to 08300513)

$34.99

$

In Stock, only 1 left!

0

17

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 446470

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00597000

Washer, Cupped Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 16

0

22

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0

23

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

24

Gravely 09046900

Blade 60" Mower CE

$

$

Not available

Gravely 08866900

Blade, Mower 60" Mulch

$37.99

$

In Stock, Qty 20+

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09238500

Weldment, Spindle Sheave 6.00

$45.99

$

In Stock, only 1 left!

0

28

Gravely 09253100

Sheave, Double (6.25)

Note: (6.25)

$85.99

$

In Stock, only 3 left!

0

29

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 6

0

31

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 08336100

Spring, Extension (316, 317)
(Superseded to 08300512)

Note: (316, 317)

$17.99

$

In Stock, Qty 20+

0

33

Gravely 07235000

V-Belt B-Section 23.94 x .625

$52.99

$

In Stock, only 1 left!

0

34

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

35

Gravely 010174

Bushing, Flange .762 x 1.00 x .58 x 1.48 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 034119

Spacer .56 x .75 x 2.44 Steel
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

37

Gravely 07327600

V-Idler, 4.00 x .38

$38.99

$

In Stock, Qty 20+

0

38

Gravely 020444

Spring, Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

39

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

41

Gravely 06436200

Washer, Flat Steel .406 x .812 x .05
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0
