992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 002001 - 002499) Rollers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

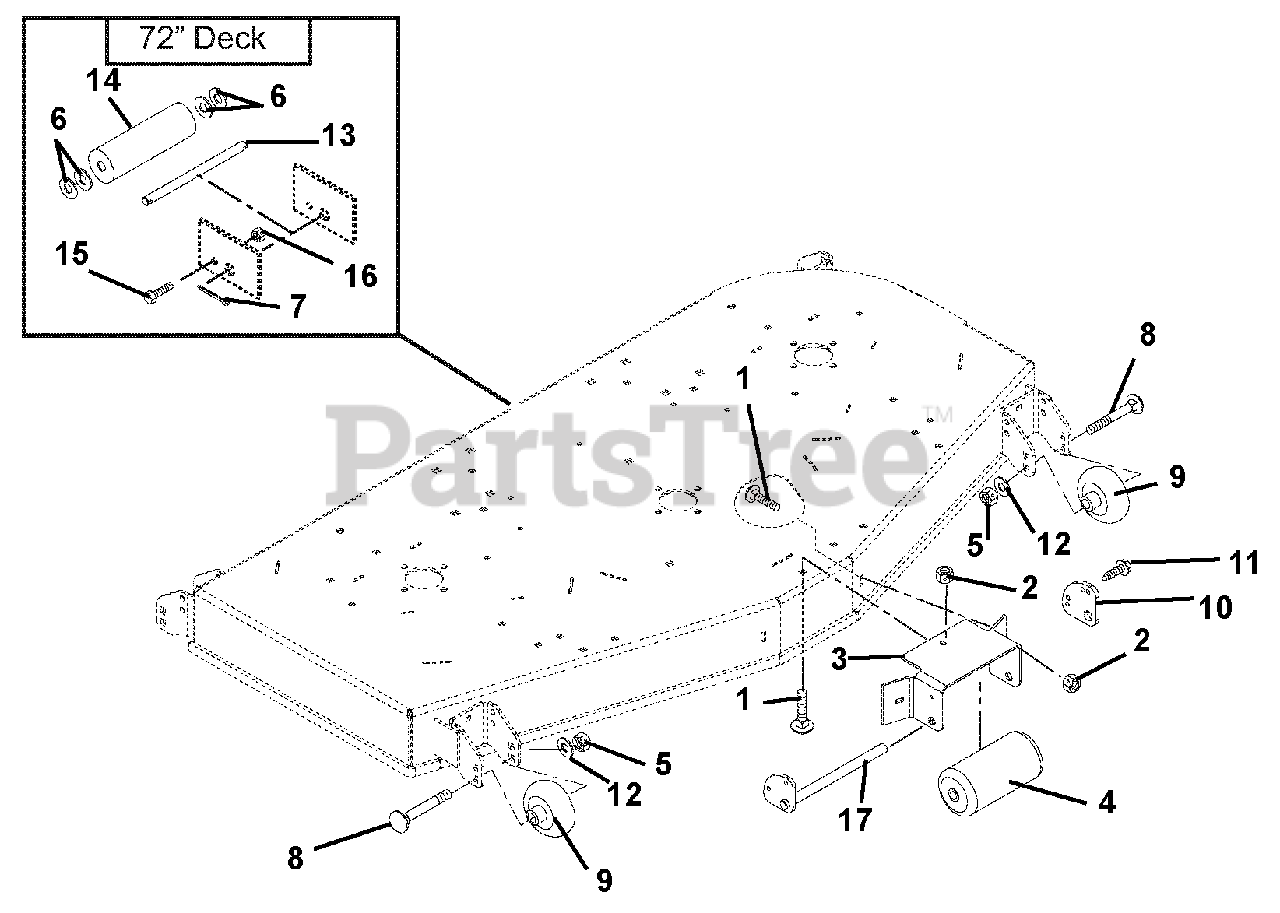

Rollers Parts Diagram

  • Title

1

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

2

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 04920853

BRACKET - ANTI-SCALP ROLLER

$125.99

$

Usually ships in 4-12 days

0

4

Ariens 09078100

ROLLER

$47.99

$

In Stock, only 1 left!

0

5

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06713100

@PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 09253700

WHEEL, 3X5

$14.99

$

In Stock, Qty 6

0

10

Ariens 09290353

ANTI-SCALP WASHER - RED

$12.99

$

In Stock, only 1 left!

0

11

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

12

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

Note: (321)

$60.99

$

In Stock, only 1 left!

0

14

Ariens 031390

RLR,GAGE
(Superseded to 08803300)

Note: (321)

$37.99

$

In Stock, only 1 left!

0

15

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (321)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (321)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00437253

WMT - ROLLER BRACKET

$46.99

$

Usually ships in 4-12 days

0
