992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 002001 - 002499) Mounting Brackets Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

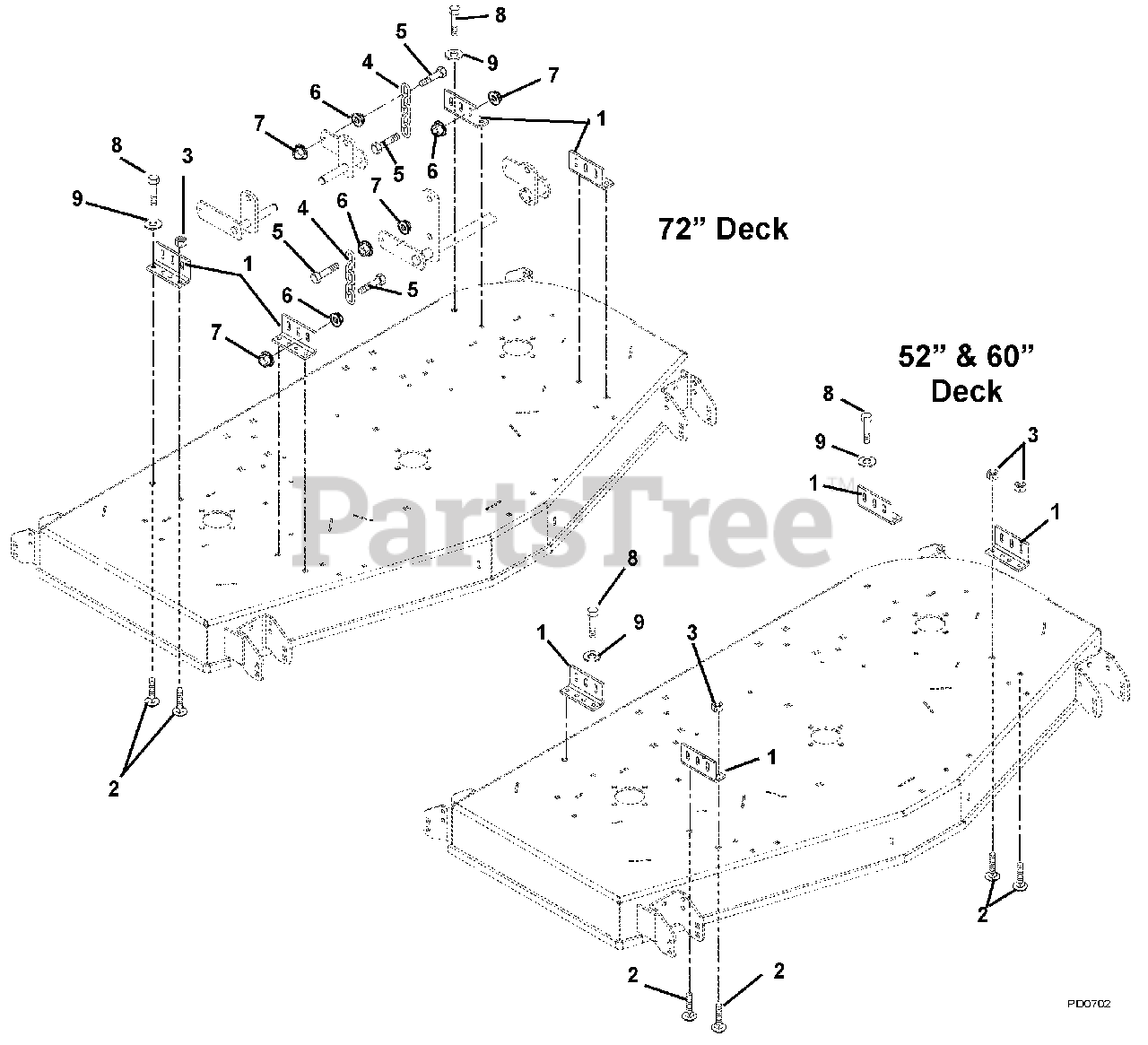

Mounting Brackets Parts Diagram

  • Title

1

Ariens 09290153

MOWER MOUNTING BRACKET - RED

$30.99

$

Usually ships in 4-12 days

0

2

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (321, 316, 317)

$2.49

$

In Stock, Qty 10

0

2

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (322)

$2.49

$

In Stock, Qty 10

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (321, 316, 317)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (322)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 09284700

CHAIN, LINK

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 05900006

BLT-HEX M12X1.75X55 GR5 YZ

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.49

$

In Stock, only 1 left!

0

7

Ariens 06500004

NUT-LK-TOP-FLG M12-1.75 YZ

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (316, 317, 321)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (322)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (316, 317, 321)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (322)

$0.99

$

In Stock, Qty 20+

0
