992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 001501 - 002000) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

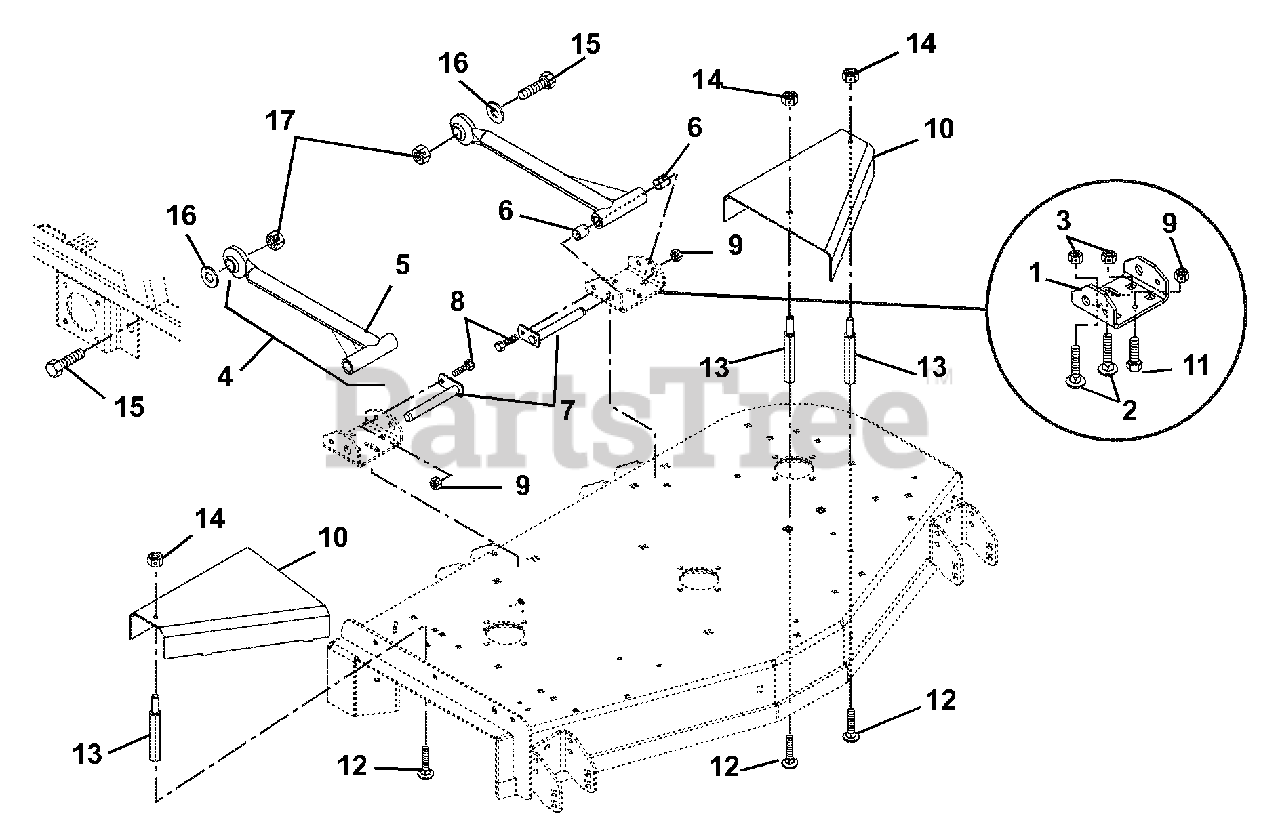

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Ariens 09240453

BRACKET, MOWER MOUNT (REAR)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 06221200

@BLT-RDHDSQNK .50-13X.75 G5YZ

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

In Stock, only 3 left!

0

4

Ariens 09247800

ASSEMBLY, MOWER MOUNTING ARM

Note: (Includes Items 5 and 6)

$270.99

$

Usually ships in 4-12 days

0

5

Ariens 09247951

WMT, MOWER MTG ARM - BLACK

$255.99

$

Usually ships in 4-12 days

0

6

Ariens 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 3 left!

0

7

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

$62.99

$

Usually ships in 4-12 days

0

Ariens 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

$46.99

$

In Stock, only 2 left!

0

11

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

12

Ariens 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

13

Ariens 00271200

STANDOFF, 2.75 X 5/16-18

$34.99

$

In Stock, only 2 left!

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$7.99

$

In Stock, only 1 left!

0

16

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 16

0

17

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$5.99

$

In Stock, Qty 11

0
