992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 001000 - 001500) Motors And Wheels Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

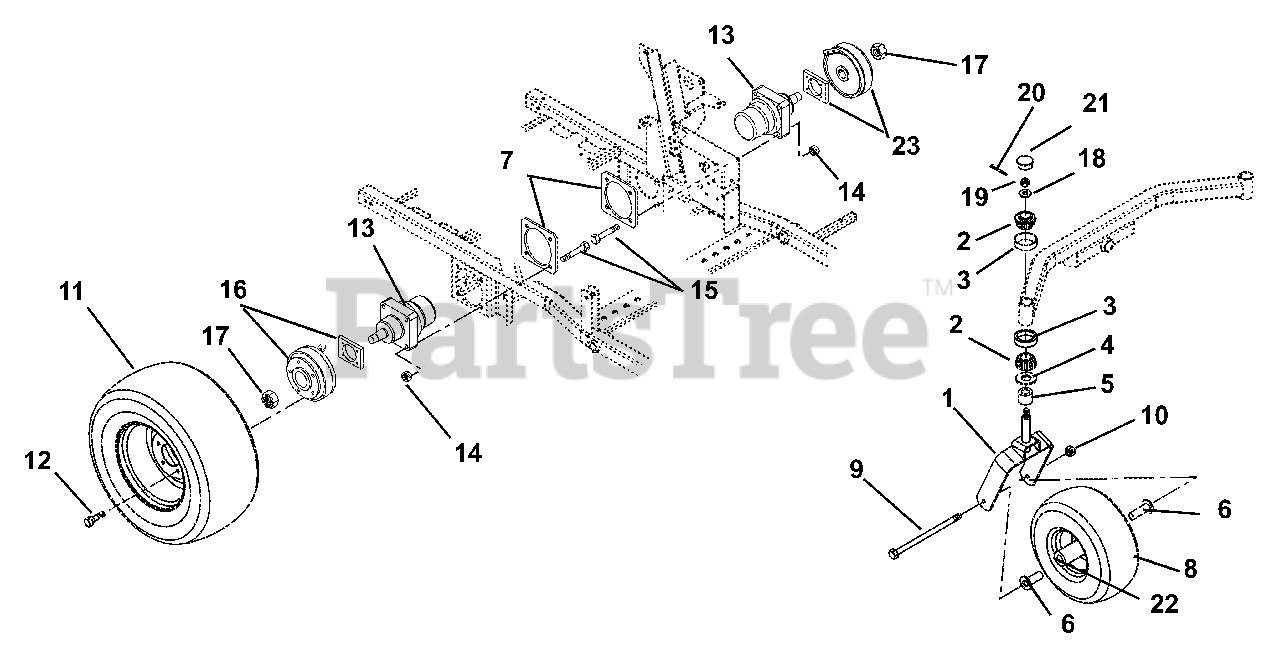

Motors And Wheels Parts Diagram

  • Title
1

Ariens 09263653

FORK-FRONT
(Superseded to 59208500)

$180.99

$

In Stock, only 2 left!

0

2

Ariens 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, only 3 left!

0

5

Ariens 00531500

SPACER 1.005X1.5075X.375

$7.99

$

In Stock, Qty 6

0

6

Ariens 09231800

SPACER - WHEEL

$47.99

$

Usually ships in 4-12 days

0

7

Ariens 09278551

PLATE, MOTOR SUPPORT (BLACK)

$

$

Not available

8

Ariens 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

Ariens 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

9

Ariens 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Ariens 07157500

TIRE/WHEEL ASSY 24X12-12
(Superseded to 59210100)

$319.99

$

Usually ships in 4-12 days

0

Ariens 07158100

TIRE, TURFMASTER 24X12-12
(Superseded to 07101040)

$273.99

$

Usually ships in 4-12 days

0

12

Ariens 07067700

BLT, LUG .50-20 X 1.38
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Ariens 09263100

MOTOR, PARKER WHEEL

Note: (Includes 17)

$943.99

$

Usually ships in 4-12 days

0

14

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07067200

BOLT, WHEEL MOTOR 1/2-13X2.75

$17.99

$

In Stock, only 3 left!

0

16

Ariens 09419800

BRAKE, RH PARK (WOODS LH)
(Superseded to 58904200)

$814.99

$

Usually ships in 4-12 days

0

17

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$30.99

$

In Stock, only 1 left!

0

18

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

19

Ariens 00595500

NUT, SLOTTED .75-16

$3.49

$

In Stock, only 3 left!

0

20

Ariens 06712300

@PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 5

0

21

Ariens 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

22

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 15

0

23

Ariens 09419700

BRAKE, LH PARK (WOODS RH)
(Superseded to 58904200)

$814.99

$

Usually ships in 4-12 days

0
