992317 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 001000 - 001500) Controls Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

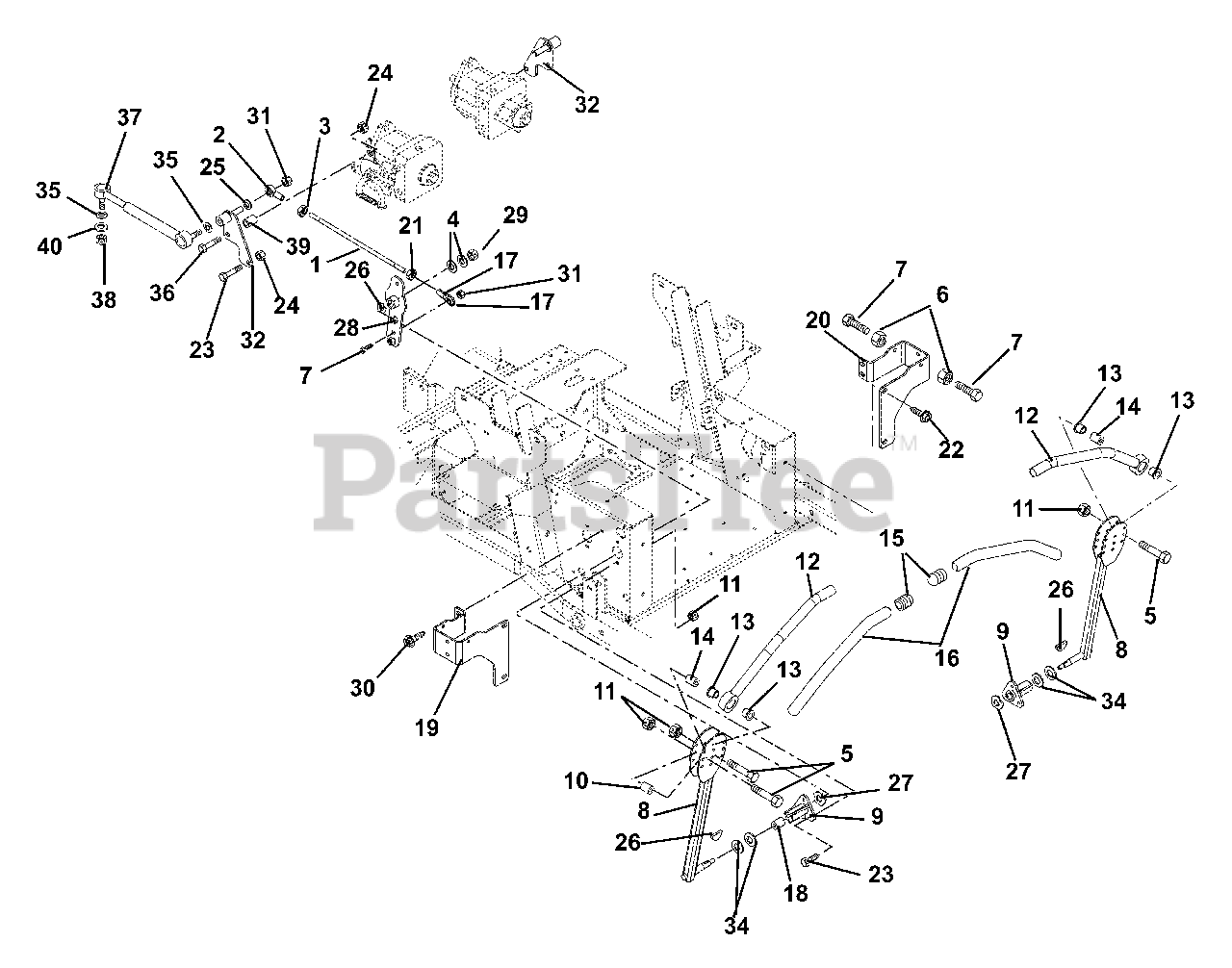

Controls Parts Diagram

  • Title

1

Ariens 03360901

ROD, TIE

$

$

Not available

2

Ariens 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

3

Ariens 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

4

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

8

Ariens 09288651

CONTROL ARM WELDMENT - BLACK

$187.99

$

Usually ships in 4-12 days

0

9

Ariens 09294600

BUSHING, FLANGE

$34.99

$

In Stock, only 1 left!

0

10

Ariens 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 09235500

HANDLE WLDMT LH

$90.99

$

In Stock, only 1 left!

0

Ariens 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

13

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

14

Ariens 09235400

SPACER .328 X .76 X 1.01

$

$

Not available

15

Ariens 09211400

CAPLUG - HANDLEBAR

$2.99

$

In Stock, only 4 left!

0

16

Ariens 09246800

GRIP - HANDLEBAR

$12.99

$

Usually ships in 4-12 days

0

17

Ariens 03668700

END, ROD-.38 LH

$15.99

$

Usually ships in 4-12 days

0

18

Ariens 05436800

BSHG .625X.750X.500

$9.99

$

In Stock, only 2 left!

0

19

Ariens 09289151

RH STOP BRACKET - BLACK

$72.99

$

Usually ships in 4-12 days

0

20

Ariens 09289251

LH STOP BRACKET - BLACK

$42.99

$

Usually ships in 4-12 days

0

21

Ariens 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

27

Ariens 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

In Stock, only 4 left!

0

28

Ariens 00176400

WMT, PIVOT ARM

$

$

Not available

29

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 00180200

WMT, RTN/DAMPER/ROD END

$90.99

$

Usually ships in 4-12 days

0

33

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

37

Ariens 01589300

DAMPENER

$113.99

$

In Stock, only 1 left!

0

38

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

39

Ariens 03101900

SPACER .318X.430X.375

$

$

Not available

40

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
