992317 (PM 260 H) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 004500 - 004999) Clutch And Flywheel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

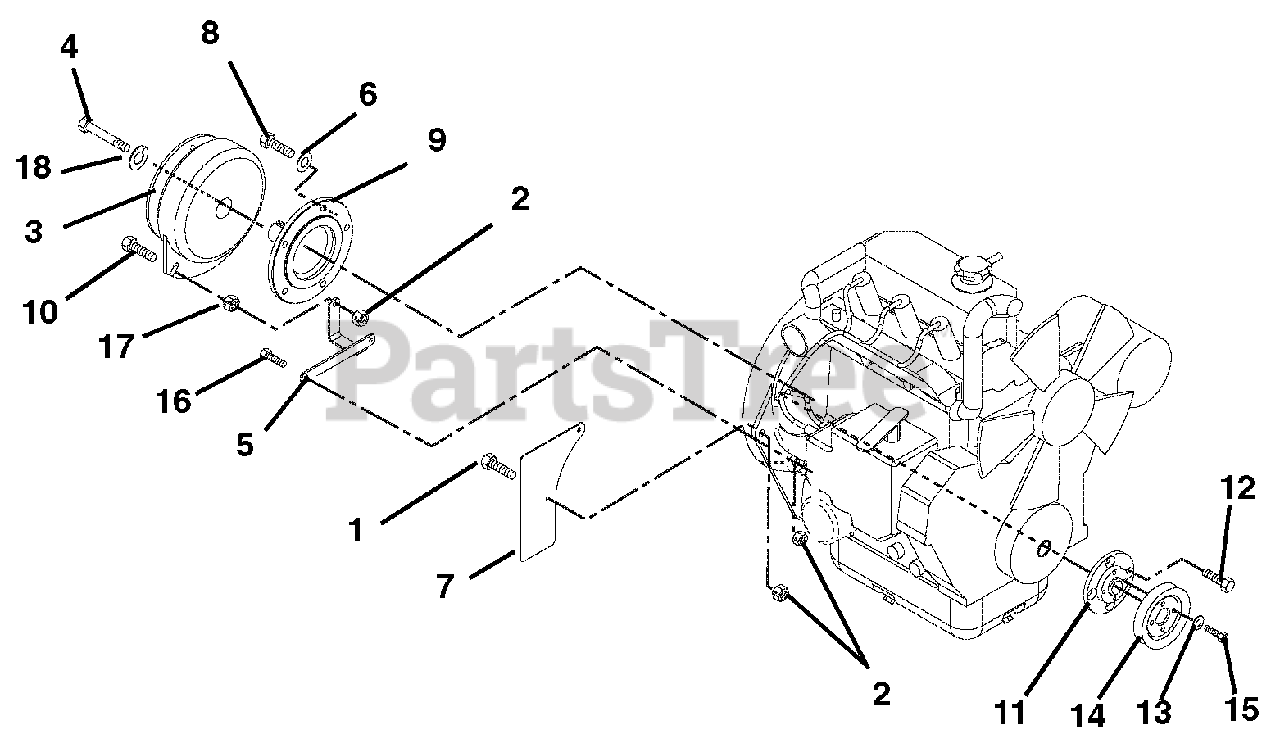

Clutch And Flywheel Parts Diagram

  • Title

1

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00462500

CLUTCH, WARNER 6.323 O/PIN

$607.99

$

Usually ships in 4-12 days

0

NS

Ariens 59205200

KIT,BRAKE POLE MODULE REPLACE

$

$

Not available

4

Ariens 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

5

Ariens 09264551

STABILIZER, CLUTCH

$24.99

$

Usually ships in 4-12 days

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 09273851

GUARD, FLYWHEEL

$

$

Not available

8

Ariens 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 00447200

SHAFT, STUB (BRIGGS-DIESEL)

$

$

Not available

10

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

11

Ariens 09265600

ADAPTER, SHEAVE (DIESEL)

$96.99

$

Usually ships in 4-12 days

0

12

Ariens 05978700

BLT, FSCHS M8-1.25X25

$

$

Not available

13

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07328100

SHEAVE, POLY V 1.000 X 3.25

$

$

Not available

15

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

18

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0
