992317 (PM 260 H) - Ariens Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel (SN: 003000 - 003199) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu Diesel

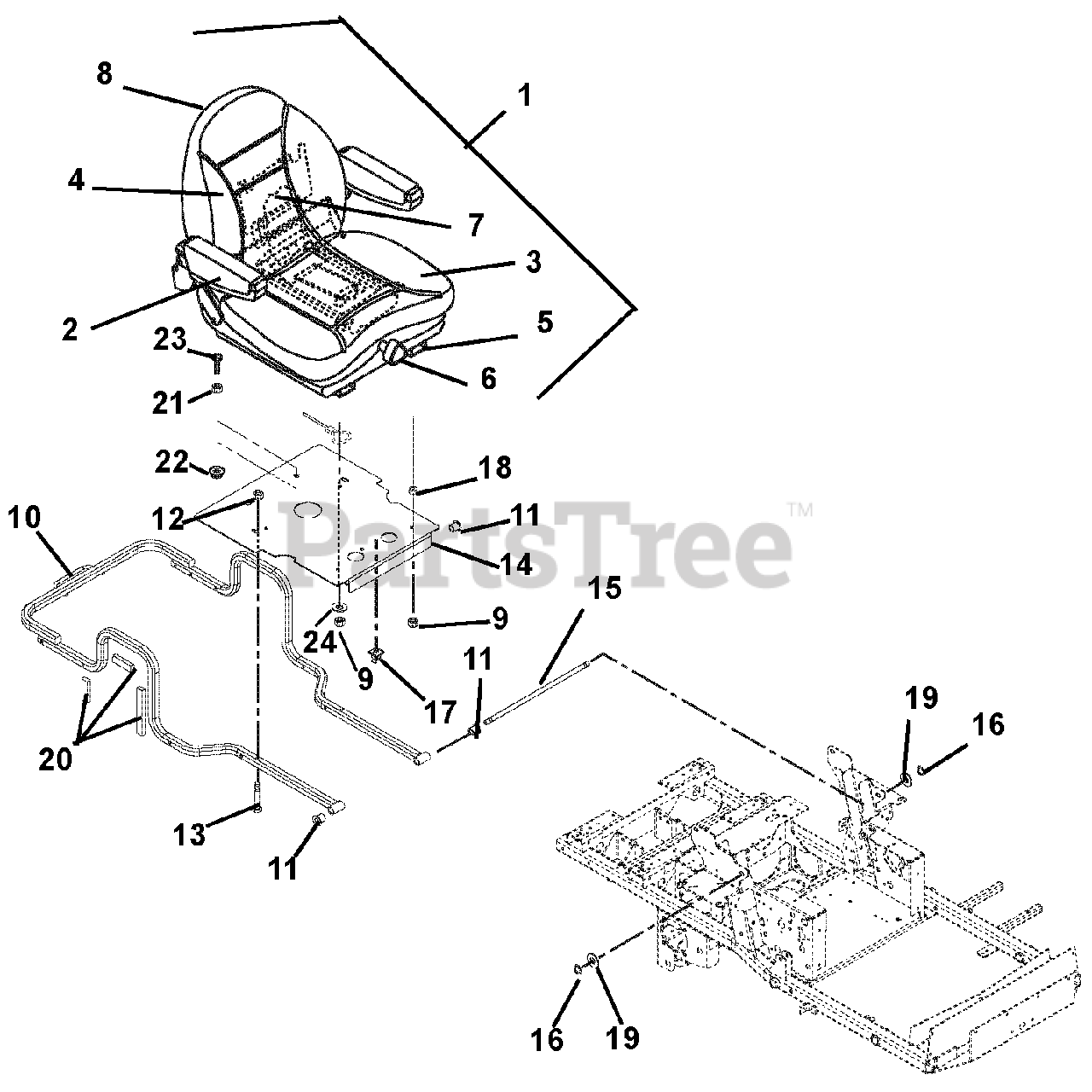

Seat And Hood Frame Parts Diagram

  • Title
1

Ariens 00674000

SEAT - SUSPENSION - LIGHT GRAY
(Superseded to 03947200)

$905.99

$

Usually ships in 4-12 days

0

2

Ariens 59204500

KIT,ARMREST PAD ONLY 1 PER KIT

Note: (1 per bag)

$

$

Not available

3

Ariens 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$258.99

$

In Stock, only 3 left!

0

4

Ariens 59208800

KIT-BACK CUSHION-LIGHT GRAY

$423.99

$

Usually ships in 4-12 days

0

5

Ariens 59207900

KIT-SEAT SLIDE

$

$

Not available

6

Ariens 59208000

KIT-SEAT KNOB

$

$

Not available

7

Ariens 59207800

KIT-SPRING AND SADDLE

$175.99

$

Usually ships in 4-12 days

0

8

Ariens 59208100

KIT-SEAT BACK PANEL

$175.99

$

Usually ships in 4-12 days

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 09278753

WMT, HOOD FRAME

$517.99

$

Usually ships in 4-12 days

0

11

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

12

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07056300

BLT, .38-16X1.50 RIB NECK YWZC

$

$

Not available

14

Ariens 09274151

WMT, SEAT PIVOT MOUNT

$142.99

$

Usually ships in 4-12 days

0

15

Ariens 09245400

ROD - SEAT FRAME PIVOT

$129.99

$

Usually ships in 4-12 days

0

16

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

17

Ariens 07534100

CLIP-.38

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

19

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 00932300

VHB TAPE 4941F

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

22

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

24

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0
