992316 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge (SN: 003200 - 004499) Hydro-Gear Hydraulic Pump Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu, Rear Discharge

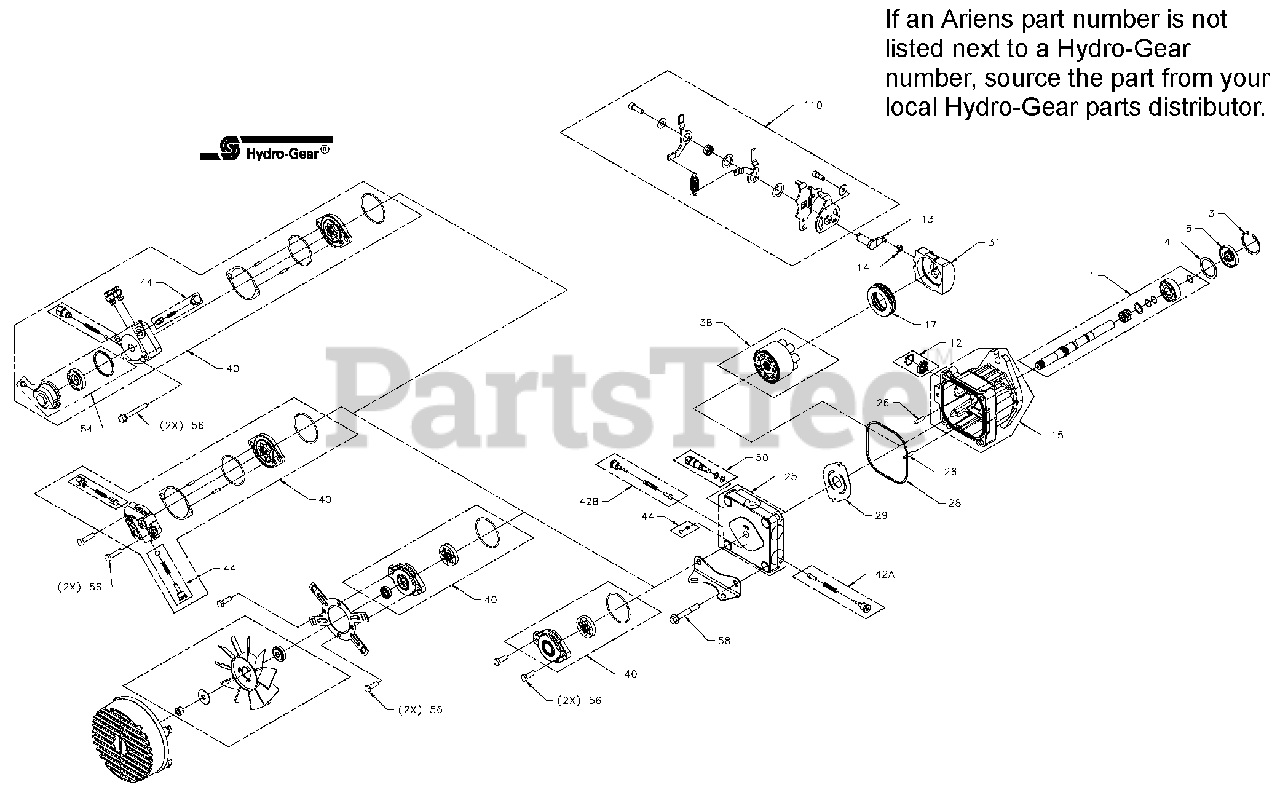

Hydro-Gear Hydraulic Pump Parts Diagram

  • Title
1

Gravely 21543908

Kit, Pump Shaft

Note: Hydro-Gear p/n 70581

$

$

Not available

3

Gravely 21543962

Ring, Ret 47 Int

Note: Hydro-Gear p/n 2000038

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 21543961

Washer, 1.45 x 1.84 x .04

Note: Hydro-Gear p/n 2000023

$

$

Not available

6

Gravely 21543796

Seal, Lip 17 x 47 x 8

Note: Hydro-Gear p/n 51092

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 21543922

Kit, Bdp-16a Trunnion Seal

Note: Hydro-Gear p/n 70739

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 21543842

Arm, Trunnion

Note: Hydro-Gear p/n 51596

$

$

Not available

14

Gravely 08610700

Guide, Slot

Note: Hydro-Gear p/n 2000015

$

$

Not available

15

Gravely 21543943

Service Kit, Housing

Note: Hydro-Gear p/n 71060

$393.99

$

Usually ships in 4-12 days

0

17

Gravely 21543747

Bearing, Thrust Ball 42 x 68 x 16

Note: Hydro-Gear p/n 50552

$

$

Not available

25

Gravely 21543970

Kit, End Cap

Note: Hydro-Gear p/n 2510069

$298.99

$

Usually ships in 4-12 days

0

26

Gravely 21543750

Pin, .219 x 1

Note: Hydro-Gear p/n 50641

$

$

Not available

28

Gravely 21543742

O-Ring, Square 1 x (4.3 x 4.6)

Note: Hydro-Gear p/n 50381

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 21543852

Valve Plate

Note: Hydro-Gear p/n 51764

$

$

Not available

31

Gravely 21543729

Plate, Swash 21cc

Note: Hydro-Gear p/n 50203

$

$

Not available

38

Gravely 21543879

Kit, Motor Block

Note: Hydro-Gear p/n 70082

$101.99

$

Usually ships in 4-12 days

0

40

Kit, Charge Pump

Kit, Charge Pump

Note: Hydro-Gear p/n 70927

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve 200 Bar

Note: Hydro-Gear p/n 70743

$

$

Not available

44

Kit, Charge Relief

Kit, Charge Relief

Note: Hydro-Gear p/n 70926

$

$

Not available

50

Gravely 21543979

Kit, Bypass Valve

Note: Hydro-Gear p/n 2513030

$28.99

$

Usually ships in 4-12 days

0

54

Gravely 21543975

Kit, Auxiliary Filter

Note: Hydro-Gear p/n 2510090

$17.99

$

Usually ships in 4-12 days

0

56

Gravely 21543784

Hfhcs 5/16-18 x 2.5

Note: Hydro-Gear p/n 51055

$

$

Not available

58

Gravely 21543942

Kit, Bolt

Note: Hydro-Gear p/n 71059

$

$

Not available

110

Gravely 21543936

Kit, Return

Note: Hydro-Gear p/n 70870

$82.99

$

In Stock, only 1 left!

0
