992316 (PM 260 Z) - Ariens Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 002500 - 002999) Belts, Spindles, Idlers And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel

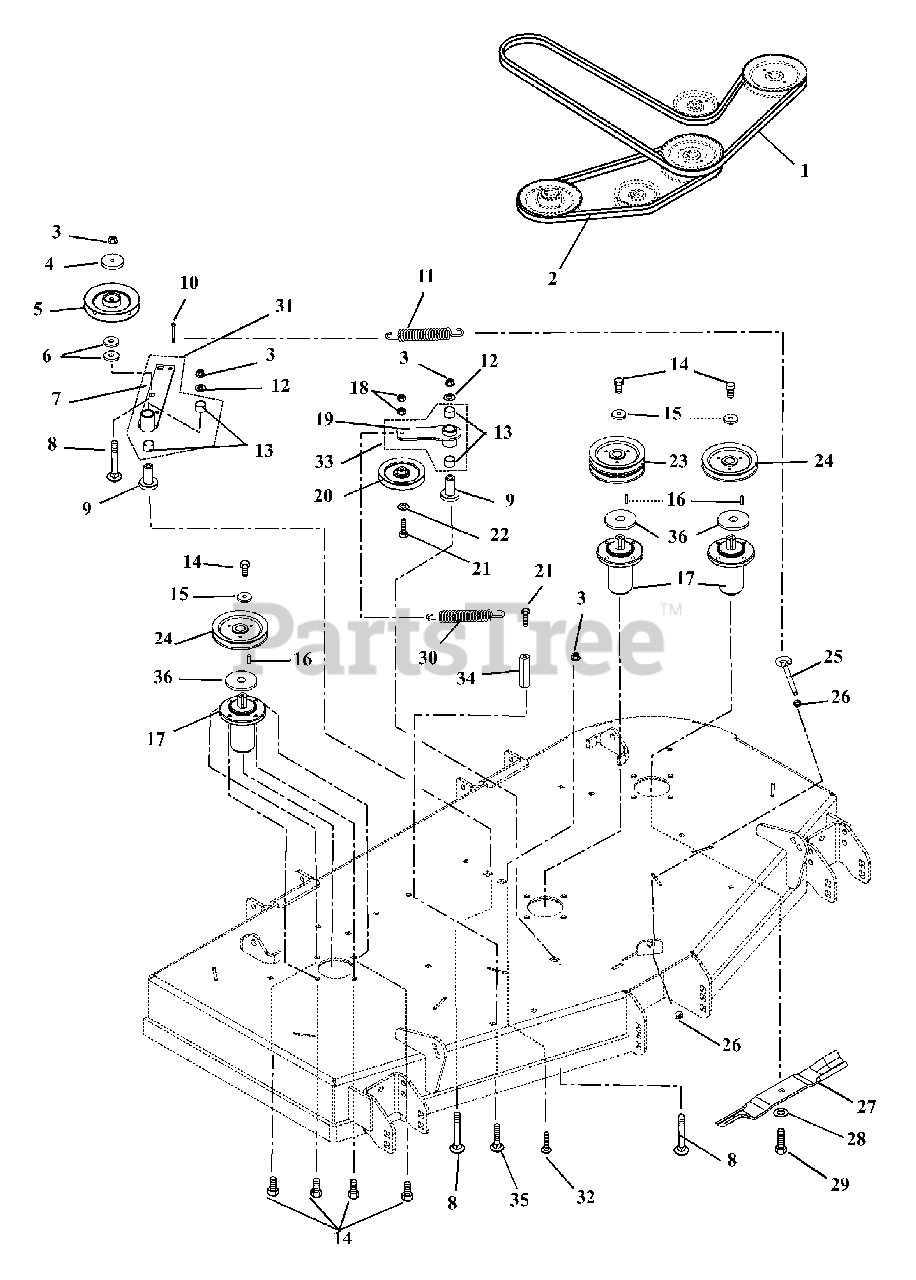

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Ariens 07200027

HEX BELT, BB-WRAPPED

Note: (992322)

$159.99

$

Usually ships in 4-12 days

0

1

Ariens 07200030

HEX BELT, BB-WRAPPED

Note: (992316, 317)

$150.99

$

In Stock, only 1 left!

0

1

Ariens 07200033

HEX BELT, BB-WRAPPED

Note: (992321)

$193.99

$

In Stock, only 1 left!

0

2

Ariens 07200036

V-BELT, B-COGGED

Note: (992322)

$62.99

$

In Stock, Qty 14

0

2

Ariens 07200038

V-BELT, B-COGGED

Note: (992316, 317)

$67.99

$

In Stock, Qty 20+

0

2

Ariens 07200039

V-BELT, B-COGGED

Note: (992321)

$75.99

$

In Stock, Qty 10

0

3

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

5

Ariens 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$108.99

$

In Stock, only 1 left!

0

6

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

7

Ariens 00368251

IDLER PIVOT ARM WMT - BLACK
(Superseded to 03379851)

$91.99

$

Usually ships in 4-12 days

0

8

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 2 left!

0

9

Ariens 07000031

BEARING, PEDESTAL

$80.99

$

In Stock, only 1 left!

0

10

Ariens 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

11

Ariens 08300030

SPRING, EXTENSION
(Superseded to 08300505)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

12

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

14

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

17

Ariens 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

18

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00345600

WMT, IDLER PIVOT ARM

$51.99

$

In Stock, only 4 left!

0

20

Ariens 07300015

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

21

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07300020

SHEAVE, DOUBLE 1"ID X 6.00"OD
(Superseded to 07332367)

Note: (992322)

$77.99

$

In Stock, Qty 16

0

23

Ariens 07300021

SHEAVE, DOUBLE 1"ID X 6.75"OD
(Superseded to 59211500)

Note: (992316, 317)

$91.99

$

In Stock, Qty 20+

0

23

Ariens 07300023

SHEAVE, DOUBLE 1"ID X 8.25"OD
(Superseded to 59217300)

Note: (992321)

$194.99

$

Usually ships in 4-12 days

0

24

Ariens 07300019

SHEAVE, SINGLE 1"ID X 6.00" OD
(Superseded to 59211700)

Note: (992322)

$82.99

$

In Stock, only 1 left!

0

24

Ariens 07300022

SHEAVE, SINGLE 1"ID X 6.75"OD
(Superseded to 59211600)

Note: (992316, 317)

$82.99

$

In Stock, Qty 8

0

24

Ariens 07300024

SHEAVE, SINGLE 1"ID X 8.25"OD
(Superseded to 59217400)

Note: (992321)

$118.99

$

In Stock, only 1 left!

0

25

Ariens 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

26

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 00273100

BLADE, MULCH 18.00"

Note: (992322) (HI-LIFT)

$26.99

$

In Stock, Qty 20+

0

27

Ariens 08866900

BLADE, MULCHING (20.50")

Note: (992316, 317) (20.50")

$37.99

$

In Stock, Qty 20+

0

27

Ariens 09290600

BLADE,MOWER-72"MULCH(24.5"LG)

Note: (992321) (24.50")

$39.99

$

In Stock, only 3 left!

0

28

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

29

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Ariens 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Ariens 00449000

ASSEMBLY, PTO IDLER PIVOT ARM

Note: (Includes item # 7 and item # 13)

$85.99

$

Usually ships in 4-12 days

0

32

Ariens 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$5.99

$

In Stock, only 1 left!

0

33

Ariens 00349100

ASM, IDLER PIVOT ARM

Note: (Includes item # 13 and item # 19 )

$63.99

$

In Stock, only 2 left!

0

34

Ariens 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 6

0

35

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0
